Description

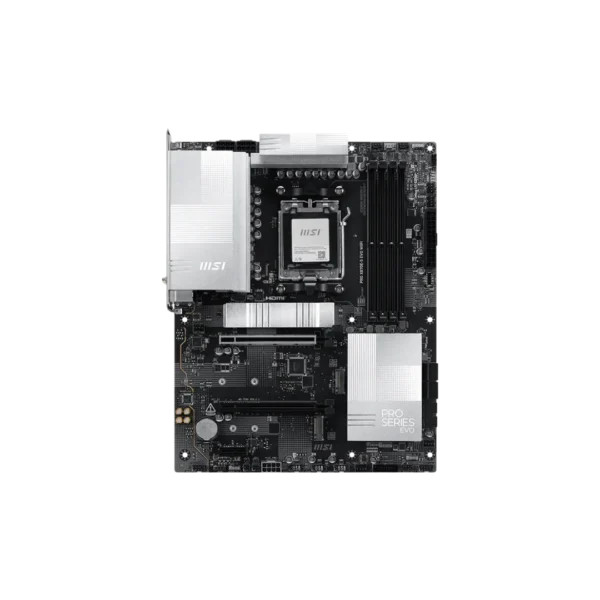

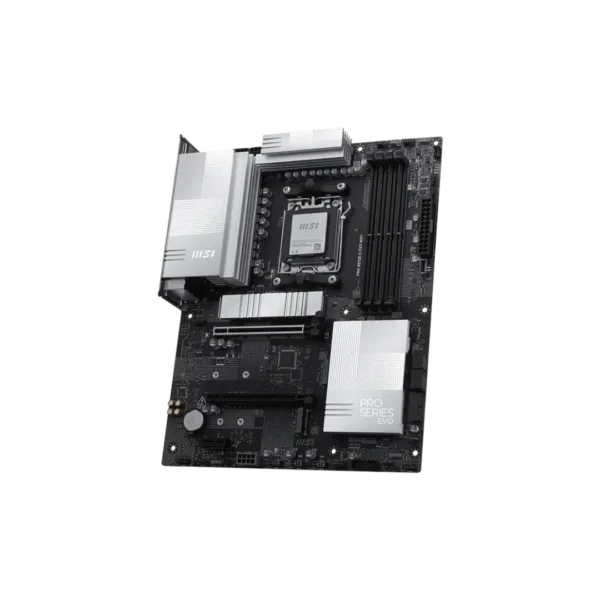

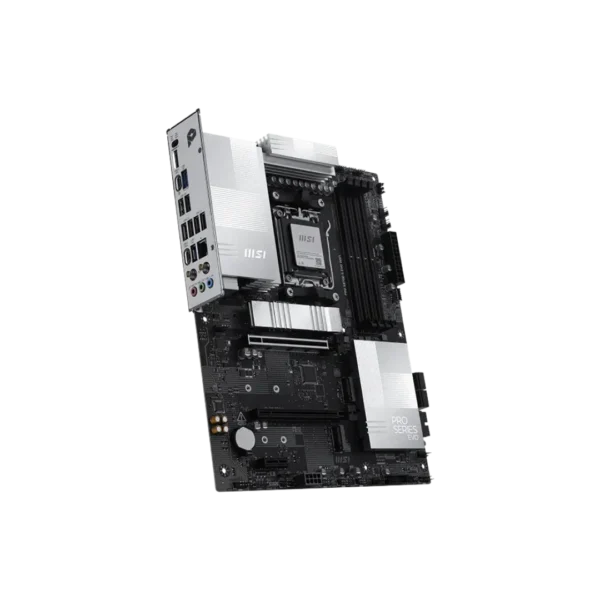

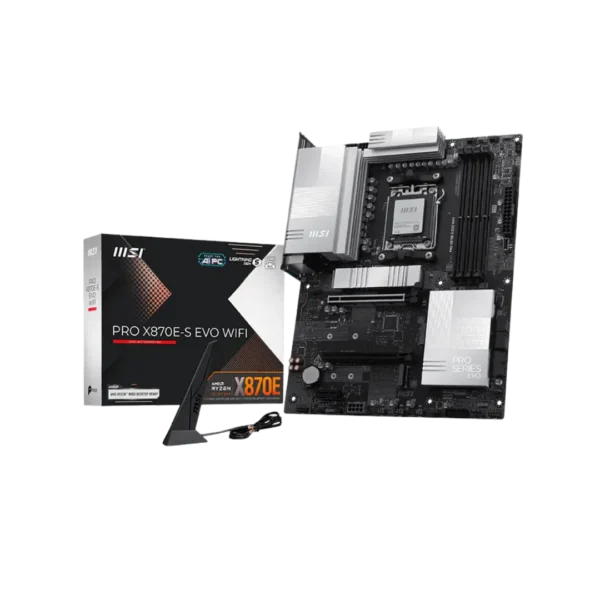

MSI Pro X870E-S EVO Wifi DDR5 AMD AM5 ATX Motherboard

Product Description

MSI Pro X870E-S EVO Wifi DDR5 AMD AM5 ATX Motherboard

The MSI PRO X870E-S EVO WIFI is a high-performance ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors on the AM5 platform. Powered by the AMD X870E chipset, it supports DDR5 memory up to 8200+ MT/s (OC), with four DIMM slots and a maximum capacity of 256GB. AMD EXPO™ and dual-channel memory support make it suitable for modern gaming, productivity, and high-performance PC builds.

For graphics and expansion, the motherboard features a PCIe 5.0 x16 slot, along with PCIe 4.0 x4 and PCIe 3.0 x1 slots. Storage connectivity includes three M.2 slots, with one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots, plus four SATA 6Gbps ports. This provides flexible support for high-speed NVMe SSDs and SATA storage devices.

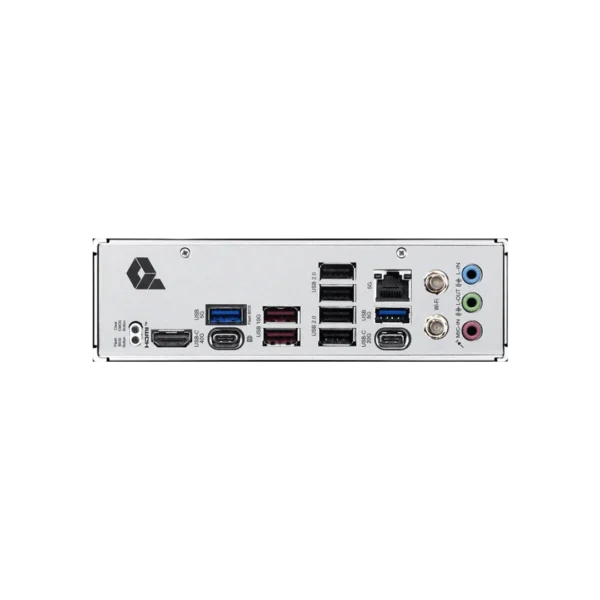

The PRO X870E-S EVO WIFI also provides modern connectivity through USB4 40Gbps, USB 20Gbps, USB 10Gbps and USB 5Gbps ports, along with 5Gbps Realtek LAN, Wi-Fi 7, and Bluetooth 5.4. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, a 6-layer PCB with 2oz thickened copper, and enhanced heatsink solutions for stable operation with powerful components.

Compatibility

This motherboard is compatible with AMD Ryzen 9000/8000/7000 Series desktop CPUs, DDR5 UDIMM memory, PCIe graphics cards, M.2 NVMe SSDs, SATA drives, and standard ATX PC cases. It supports modern high-end GPUs through its PCIe 5.0 x16 slot and can accommodate PCIe 5.0 and PCIe 4.0 NVMe SSDs. A compatible ATX power supply with the required 24-pin motherboard and CPU power connections should be used for the complete system build.
