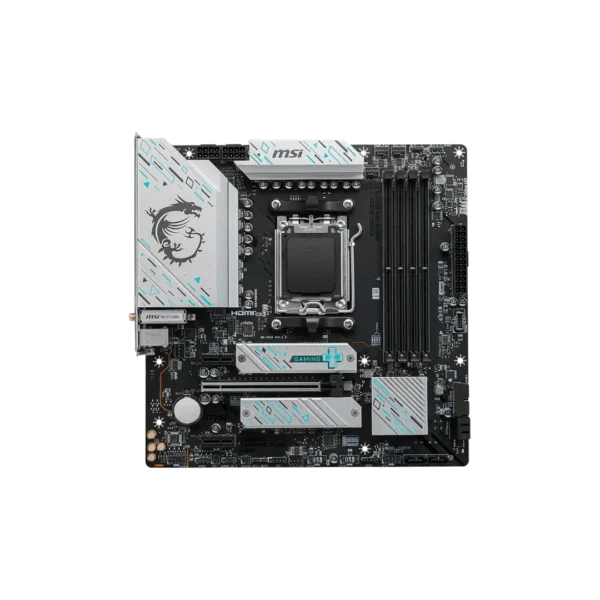

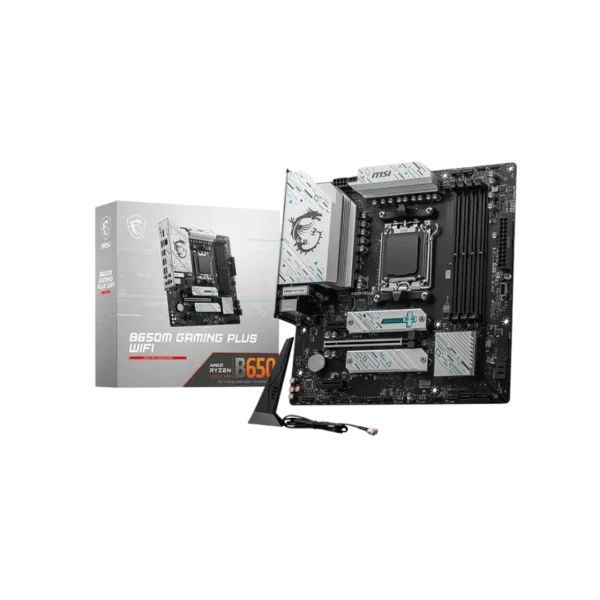

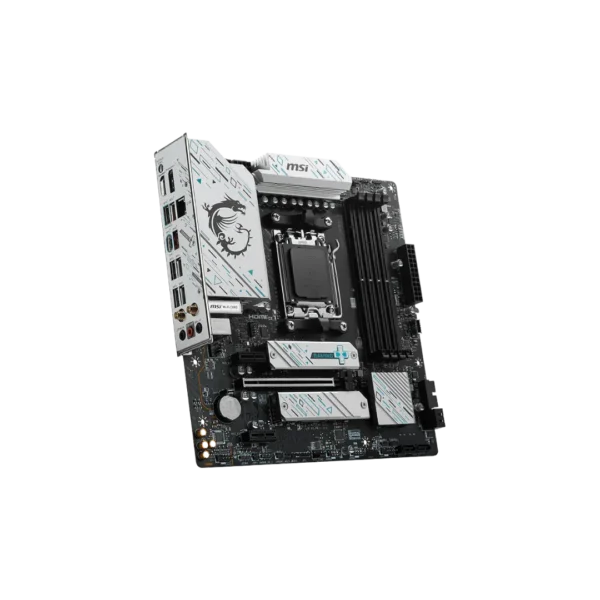

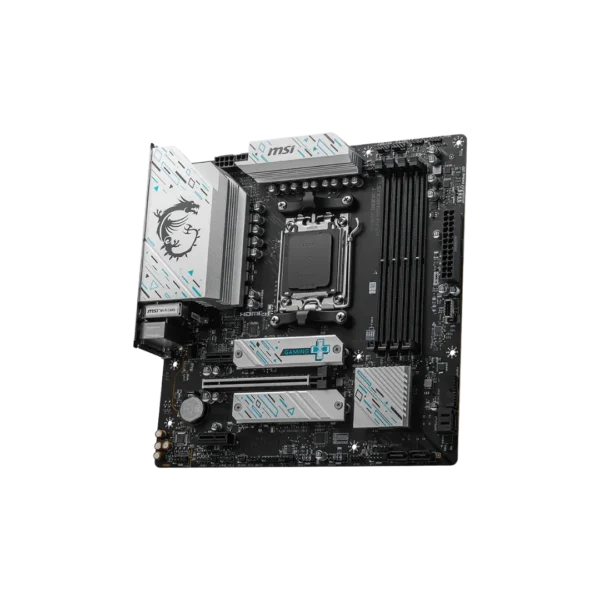

MSI B650M GAMING PLUS WIFI AM5 Micro-ATX Motherboard
₨54,999.00
MSI B650M GAMING PLUS WIFI AM5 Micro-ATX Motherboard
About this item
- Supports AMD Ryzen 9000 Series
- 4x DIMMs, DDR5 7200+(OC) MHz
- WiFi 6E Connectivity
- Micro-ATX Design
WARRANTY!
2 Years
Description
MSI B650M GAMING PLUS WIFI AM5 Micro-ATX Motherboard
Specification
| Specification | Details |
|---|---|
| Chipset | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | 4 × DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support: DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Onboard Graphics | 1 × HDMI™ Supports HDMI™ 2.1, maximum resolution of 4K 60Hz* 1 × DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1 × PCI-E x16 slot • Supports x16/x4 (For Ryzen™ 9000 / 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700 / 8600 / 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500 / 8300 Series processors) 2 × PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2 × M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4 × SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500 / 8300 Series processor is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |

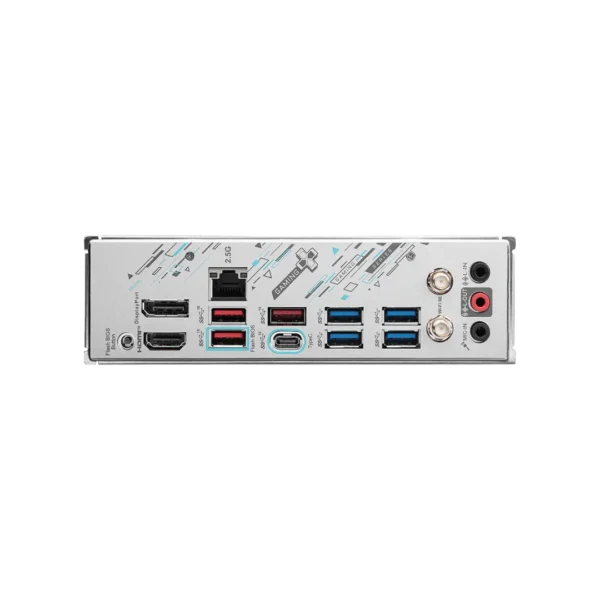

| USB | 4 × USB 2.0 (Front) 4 × USB 5Gbps Type-A (Rear) 2 × USB 5Gbps Type-A (Front) 3 × USB 10Gbps Type-A (Rear) 1 × USB 10Gbps Type-C (Rear) 1 × USB 10Gbps Type-C (Front) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1 × Power Connector (ATX_PWR) 2 × Power Connector (CPU_PWR) 1 × CPU Fan 1 × Pump Fan 3 × System Fan 2 × Front Panel (JFP) 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD) 1 × Tuning Controller connector (JDASH) 2 × Addressable V2 RGB LED connector (JARGB_V2) 2 × RGB LED connector (JRGB) 1 × TPM pin header (Support TPM 2.0) 4 × USB 2.0 ports 2 × USB 5Gbps Type-A ports 1 × USB 10Gbps Type-C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz / 5GHz or 6GHz* bands Supports 802.11 a/b/g/n/ac/axSupports Bluetooth® 5.3** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| LED FEATURE | 4 × EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mm × 243.84mm |
Who Is This Motherboard Ideal For?
The MSI B650M GAMING PLUS WIFI is ideal for gamers, PC enthusiasts, and users building a modern AMD Ryzen 7000/8000/9000-series PC in Pakistan. Its AM5 socket, DDR5 memory support, PCIe 4.0 connectivity, 2.5Gbps LAN, Wi-Fi 6E, and Micro-ATX form factor make it a strong choice for gaming, productivity, and compact-to-mid-sized performance builds.
For further details, visit website, here.
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
For similar products, visit more here.
Reviews
There are no reviews yet.
