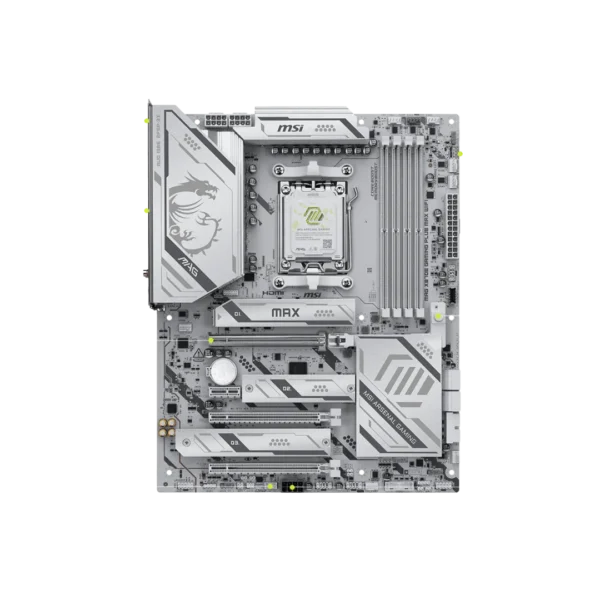

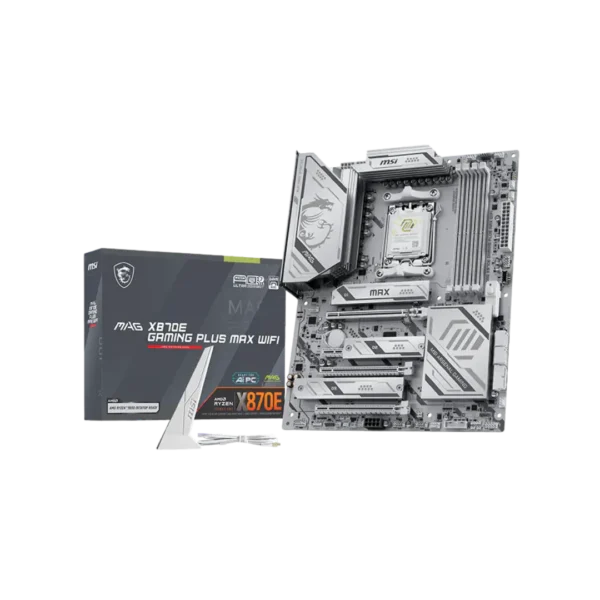

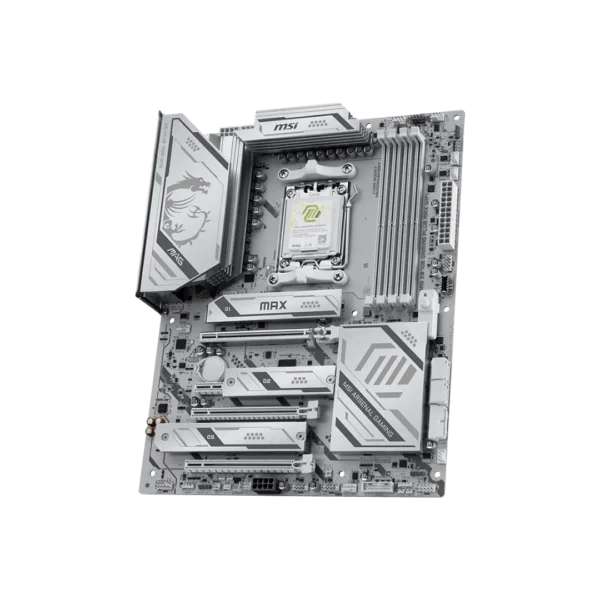

MSI MAG X870E GAMING PLUS MAX WIFI AM5 ATX Motherboard

Product Description

MSI MAG X870E GAMING PLUS MAX WIFI

The MSI MAG X870E GAMING PLUS MAX WIFI is a high-performance ATX AM5 motherboard built for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. Powered by the AMD X870E chipset and an AM5 socket, it provides a strong foundation for high-end gaming PCs, content creation systems, and performance-focused builds. MSI equips the board with a robust 14+2+1 power design with 60A Smart Power Stages, dual 8-pin CPU power connectors, and an 8-layer PCB with 2oz thickened copper, helping deliver stable power and reliable performance with demanding processors.

For memory, the motherboard features 4 DDR5 UDIMM slots with support for up to 256GB of system memory. It supports dual-channel DDR5 at speeds of up to 8200+ MT/s through overclocking, along with AMD EXPO™ memory profiles, non-ECC unbuffered memory, and supported CUDIMM operation. Memory speed and compatibility can vary depending on the installed CPU and memory configuration.

For graphics and expansion, the MAG X870E GAMING PLUS MAX WIFI provides a primary PCIe 5.0 x16 slot from the CPU, along with a PCIe 4.0 x4 slot and two PCIe 3.0 x1 slots. This allows compatibility with modern graphics cards and additional PCIe expansion hardware such as capture cards, sound cards, networking cards, and other add-in devices.

Storage connectivity includes three M.2 slots: one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots, supporting compatible M.2 NVMe SSDs. The board also includes four SATA 6Gbps ports for SATA SSDs and hard drives, with support for RAID configurations.

The motherboard is designed to work with modern PC components, including AMD Ryzen AM5 processors, DDR5 desktop memory, PCIe 5.0/4.0 graphics cards, M.2 NVMe SSDs, SATA storage drives, ATX power supplies, and ATX-compatible PC cases. It also features Wi-Fi 7, Bluetooth 5.4, 5G LAN, USB 40Gbps Type-C, USB 20Gbps Type-C, HDMI 2.1, and USB4 display output, providing high-speed connectivity for gaming and professional systems.

Ideal for

The MSI MAG X870E GAMING PLUS MAX WIFI is ideal for high-performance gaming PCs, enthusiast builds, and content-creation systems using AMD Ryzen 9000, 8000, or 7000 Series processors. It is a strong choice for users who want DDR5 memory, PCIe 5.0 graphics and NVMe support, fast networking, and extensive upgrade options in an ATX platform. It is particularly suitable for gamers and power users planning a modern AM5 build with a high-end GPU, fast NVMe SSDs, and plenty of room for future component upgrades.
