Description

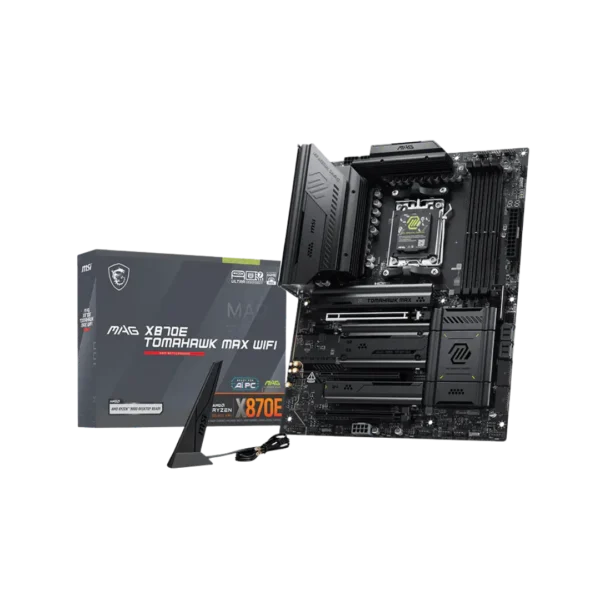

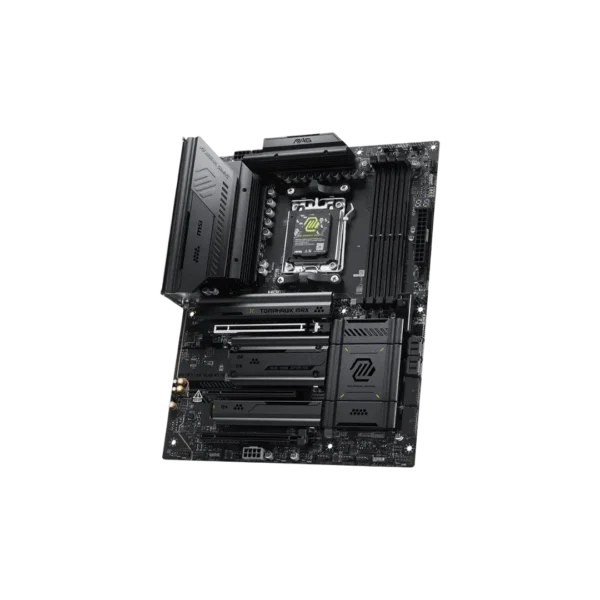

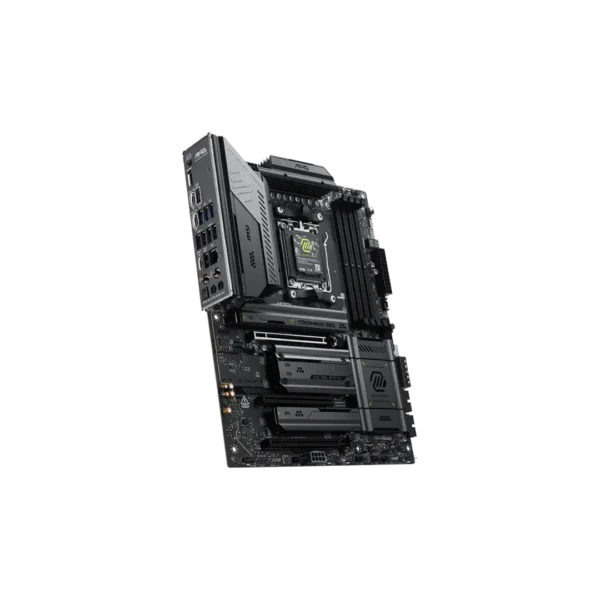

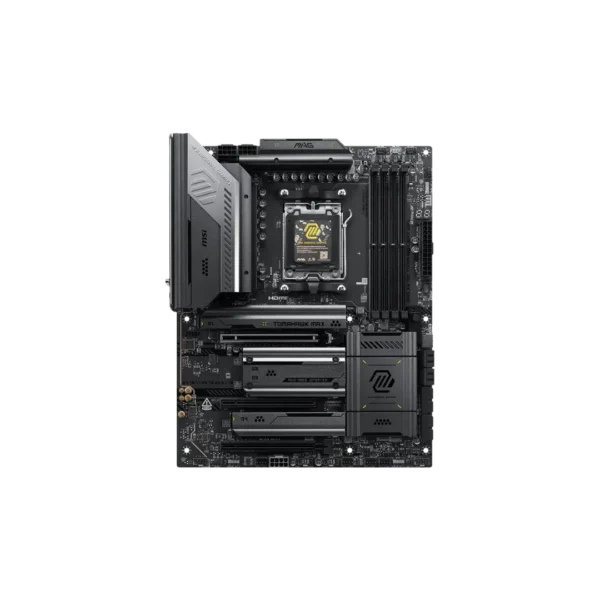

MSI MAG X870E Tomahawk Max WiFi Gaming Motherboard

Product Description

MSI MAG X870E Tomahawk Max WiFi Gaming

The MSI MAG X870E TOMAHAWK MAX WIFI is a high-performance ATX gaming motherboard built around the AMD X870E chipset and AM5 socket. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors, making it a strong foundation for modern gaming, enthusiast, and high-performance PC builds. The board supports up to 256GB of DDR5 memory through four DIMM slots, with memory speeds up to DDR5-8400+ MT/s (OC) depending on the CPU and memory configuration.

Chipset & Socket

The motherboard uses the AMD X870E chipset and features an AMD Socket AM5, providing compatibility with supported Ryzen 9000, 8000, and 7000 Series processors. This makes it suitable for users looking to build an advanced AMD-based desktop system with current-generation platform features.

Memory

The MAG X870E TOMAHAWK MAX WIFI features 4 × DDR5 UDIMM slots with support for up to 256GB of system memory. It supports high-speed DDR5 memory up to 8400+ MT/s (OC), along with AMD EXPO for compatible memory kits and dual-channel memory architecture.

Expansion Slots

For graphics and expansion hardware, the motherboard provides 1 × PCIe 5.0 x16 slot, 1 × PCIe 4.0 x4 slot, and 1 × PCIe 3.0 x1 slot. The primary PCIe 5.0 x16 slot is designed for modern discrete graphics cards, while the additional slots can accommodate compatible expansion cards.

Storage

Storage connectivity includes 2 × M.2 PCIe 5.0 x4 slots and 2 × M.2 PCIe 4.0 x4 slots for high-speed NVMe SSDs. It also provides 4 × SATA 6Gb/s ports for compatible SATA storage devices. The motherboard supports RAID configurations for supported M.2 and SATA storage setups.

The motherboard uses a standard ATX PCB measuring approximately 243.84 × 304.8mm. Its ATX form factor makes it compatible with PC cases designed to accommodate ATX motherboards.

Compatibility

The MSI MAG X870E TOMAHAWK MAX WIFI is designed for AMD AM5 Ryzen 9000, 8000, and 7000 Series processors, DDR5 desktop memory, PCIe graphics cards, M.2 NVMe SSDs, SATA drives, and compatible PCIe expansion cards. It can be paired with an AM5-compatible CPU cooler, a suitable ATX power supply, and an ATX-compatible PC case. For a gaming build, its PCIe 5.0 x16 slot supports modern graphics cards, while its multiple M.2 slots provide plenty of options for fast NVMe storage.

Connectivity & Networking

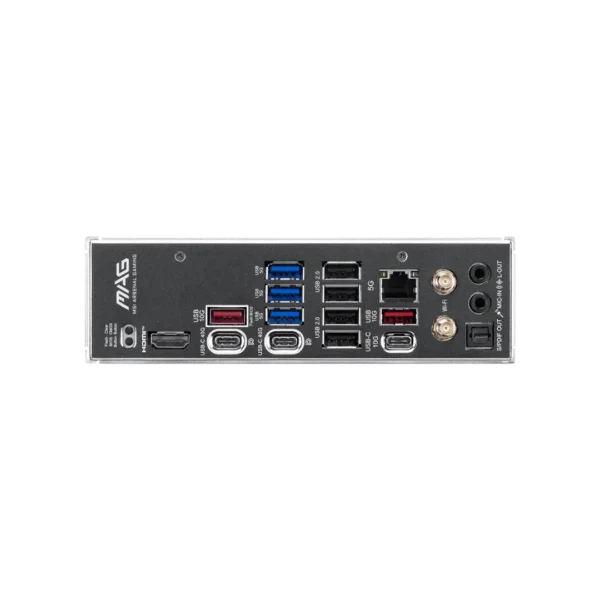

The motherboard features modern connectivity including Wi-Fi 7, Bluetooth 5.4, 5G LAN, USB 40Gbps Type-C, HDMI 2.1, and high-quality onboard audio. These features provide fast networking, high-speed peripheral connectivity, and versatile connectivity for gaming and productivity systems.

Why Buy the MSI MAG X870E TOMAHAWK MAX WIFI?

The MSI MAG X870E TOMAHAWK MAX WIFI is an excellent choice for users building a high-end AMD gaming or performance PC who want a modern platform with strong upgrade potential. Its X870E chipset, AM5 socket, high-speed DDR5 support, PCIe 5.0 connectivity, four M.2 slots, Wi-Fi 7, 5G LAN, and extensive I/O make it a well-equipped motherboard for demanding gaming, content creation, and enthusiast systems.
