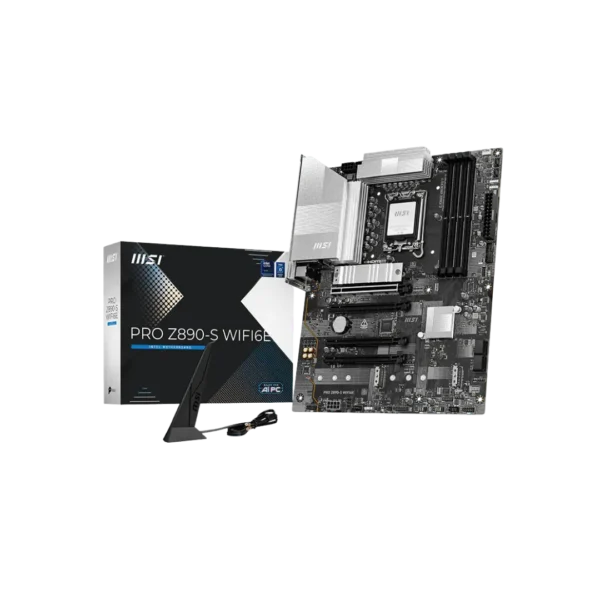

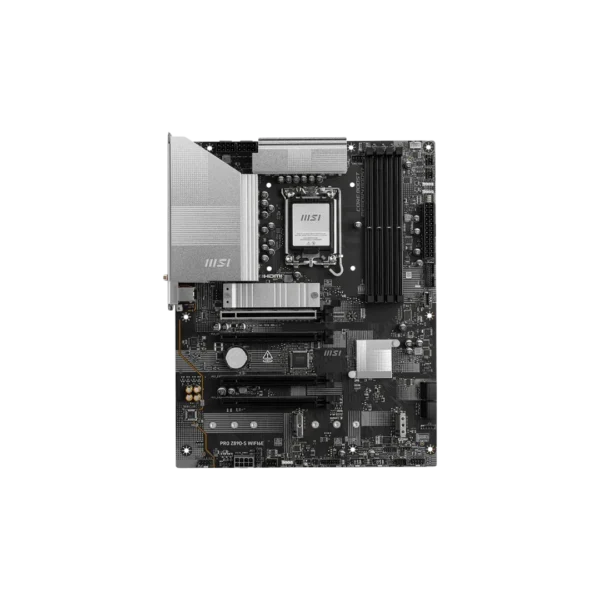

MSI PRO Z890-S WIFI6E Intel LGA1851 DDR5 Motherboard
₨77,499.00
MSI PRO Z890-S WIFI6E Intel LGA1851 DDR5 Motherboard
About this item
- Intel LGA1851 Support
- DDR5 Memory
- Wi-Fi 6E Connectivity
- Advanced Expansion
WARRANTY!
2 Years
Description
MSI PRO Z890-S WIFI6E Intel LGA1851 DDR5 Motherboard
Specification
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support: DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R: Max speed up to 8800+ MT/s • 1DPC 2R: Max speed up to 7200+ MT/s • 2DPC 1R: Max speed up to 6400+ MT/s • 2DPC 2R: Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM• The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. |
| Onboard Graphics | 1x HDMI™ Supports HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 4x PCI-E x16 slots PCI_E1: PCIe 5.0, supports up to x16 (From CPU) PCI_E2: PCIe 3.0, supports up to x1 (From Chipset) PCI_E3: PCIe 4.0, supports up to x4 (From Chipset) PCI_E4: PCIe 4.0, supports up to x4 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 3x M.2 M.2_1: Source from CPU, supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices M.2_2: Source from Chipset, supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3: Source from Chipset, supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 6x USB 5Gbps Type-A (Rear) 2x USB 5Gbps Type-A (Front) 1x USB 20Gbps Type-C (Rear) 1x USB 20Gbps Type-C (Front) |
| LAN | Realtek® 8125D 2.5Gbps LAN |
| Internal IO | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x Power Connector (PCIE_PWR 8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB LED Connector (JARGB_V2) 1x RGB LED Connector (JRGB) 1x TPM Pin Header (Supports TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type-A ports 1x USB 20Gbps Type-C port |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E module Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz), up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth® 5.3**, FIPS, FISMA*Wi-Fi 6E 6GHz availability may depend on country regulations and is ready in Windows 11. **Bluetooth 5.3 is ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mm × 304.8mm |
Who Is the MSI PRO Z890-S WIFI6E Ideal For?
The MSI PRO Z890-S WIFI6E is ideal for users building a high-performance Intel desktop for gaming, productivity, content creation, multitasking, and professional workloads. It supports Intel Core Ultra processors (Series 2) using the LGA1851 socket and DDR5 memory, making it suitable for modern high-performance PC builds. The motherboard features Intel Z890 chipset, PCIe 5.0 support for compatible high-speed components, Wi-Fi 6E wireless connectivity, and high-speed connectivity options for modern peripherals and storage. Its ATX form factor provides a practical platform for users who want strong expansion capabilities and a modern feature set while building a system around Intel’s latest desktop platform.
