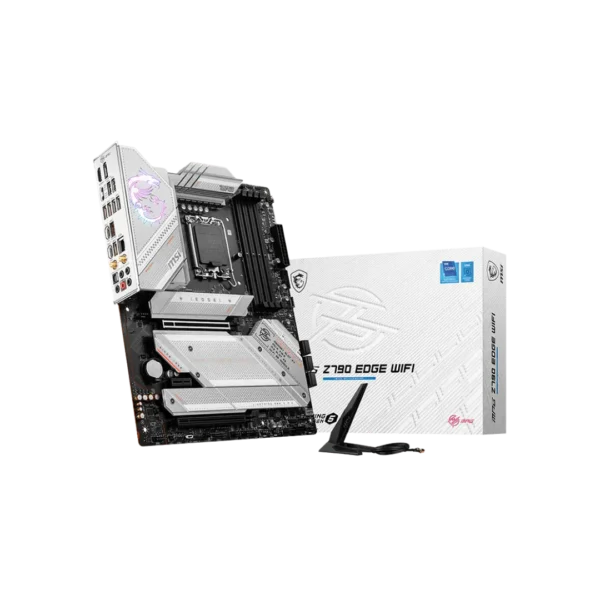

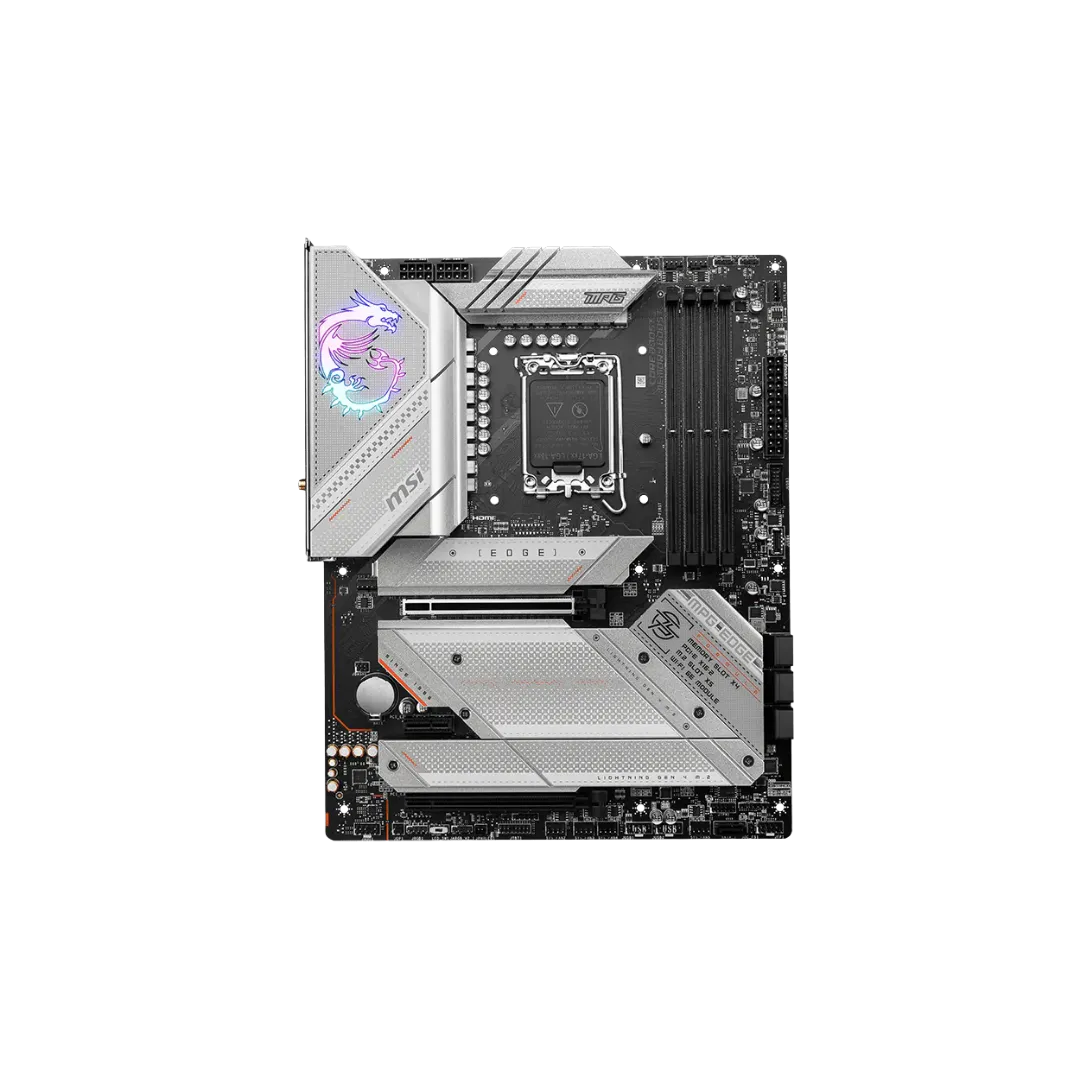

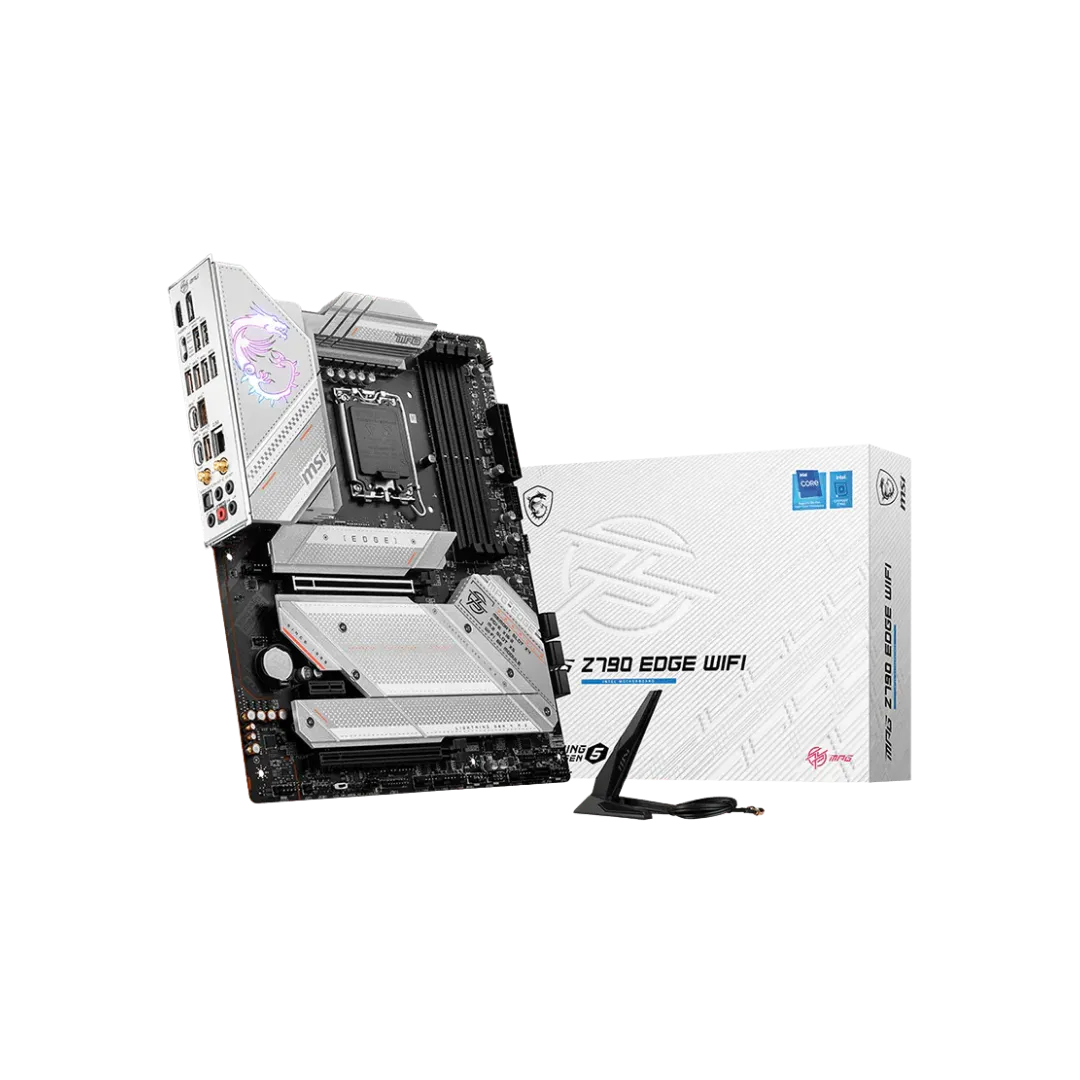

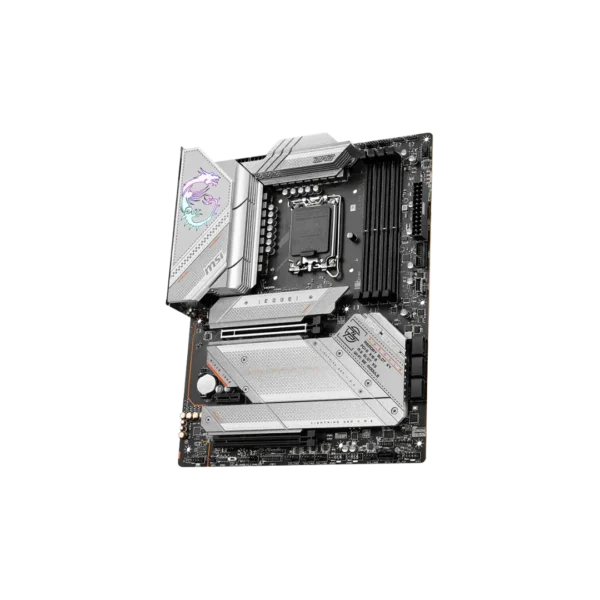

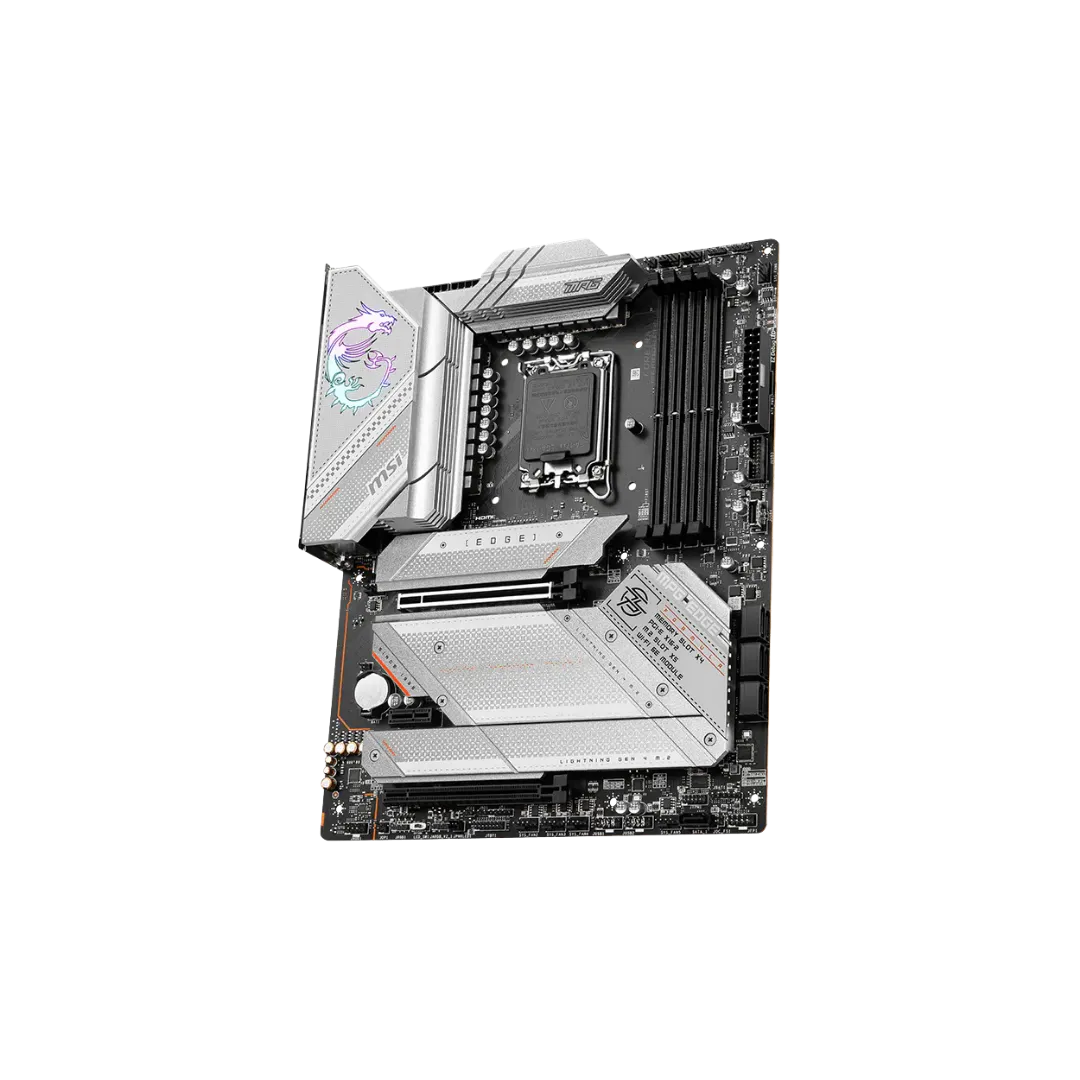

MSI MPG Z790 EDGE WIFI DDR5 Motherboard – Used
₨71,499.00
MSI MPG Z790 EDGE WIFI DDR5 Motherboard – Used
About this item
- Intel Z790 Chipset
- DDR5 Memory Support
- WiFi 6E Connectivity
- Form Factor: ATX
WARRANTY!Â
6 Months
Description
MSI MPG Z790 EDGE WIFI DDR5 Motherboard – Used
Specifications
| Specification | Details |
|---|
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors; LGA 1700 |
| Memory | 4× DDR5; Maximum Memory Capacity: 256GB |
| Memory Support | 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max. Overclocking Frequency | 1DPC 1R: Up to 7200+ MHz 1DPC 2R: Up to 6600+ MHz 2DPC 1R: Up to 6400+ MHz 2DPC 2R: Up to 5600+ MHz |
| Memory Features | Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1× HDMI™; HDMI™ 2.1, maximum resolution 4K 60Hz* 1× DisplayPort; DP 1.4, maximum resolution 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2× PCI-E x16 slot 1× PCI-E x1 slot PCI_E1: PCIe 5.0, up to x16 (From CPU) PCI_E2: PCIe 3.0, up to x1 (From Chipset) PCI_E3: PCIe 4.0, up to x4 (From Chipset) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 5× M.2 M.2_1: From CPU, up to PCIe 4.0 x4; supports 22110/2280/2260 devices M.2_2: From Chipset, up to PCIe 4.0 x4; supports 2280/2260 devices M.2_3: From Chipset, up to PCIe 4.0 x4 / SATA mode; supports 2280/2260/2242 devices M.2_4: From Chipset, up to PCIe 4.0 x4; supports 2280/2260/2242 devices M.2_5: From Chipset, up to PCIe 4.0 x4; supports 2280/2260/2242 devices 7× SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *SATA_A1~A2 do not support RAID function. |

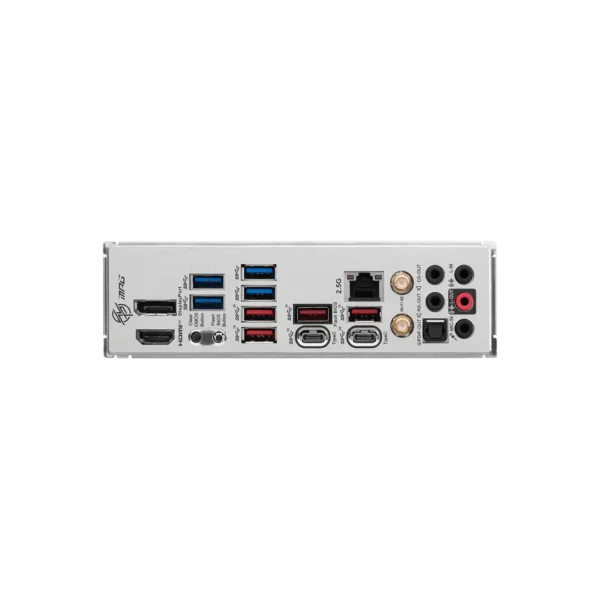

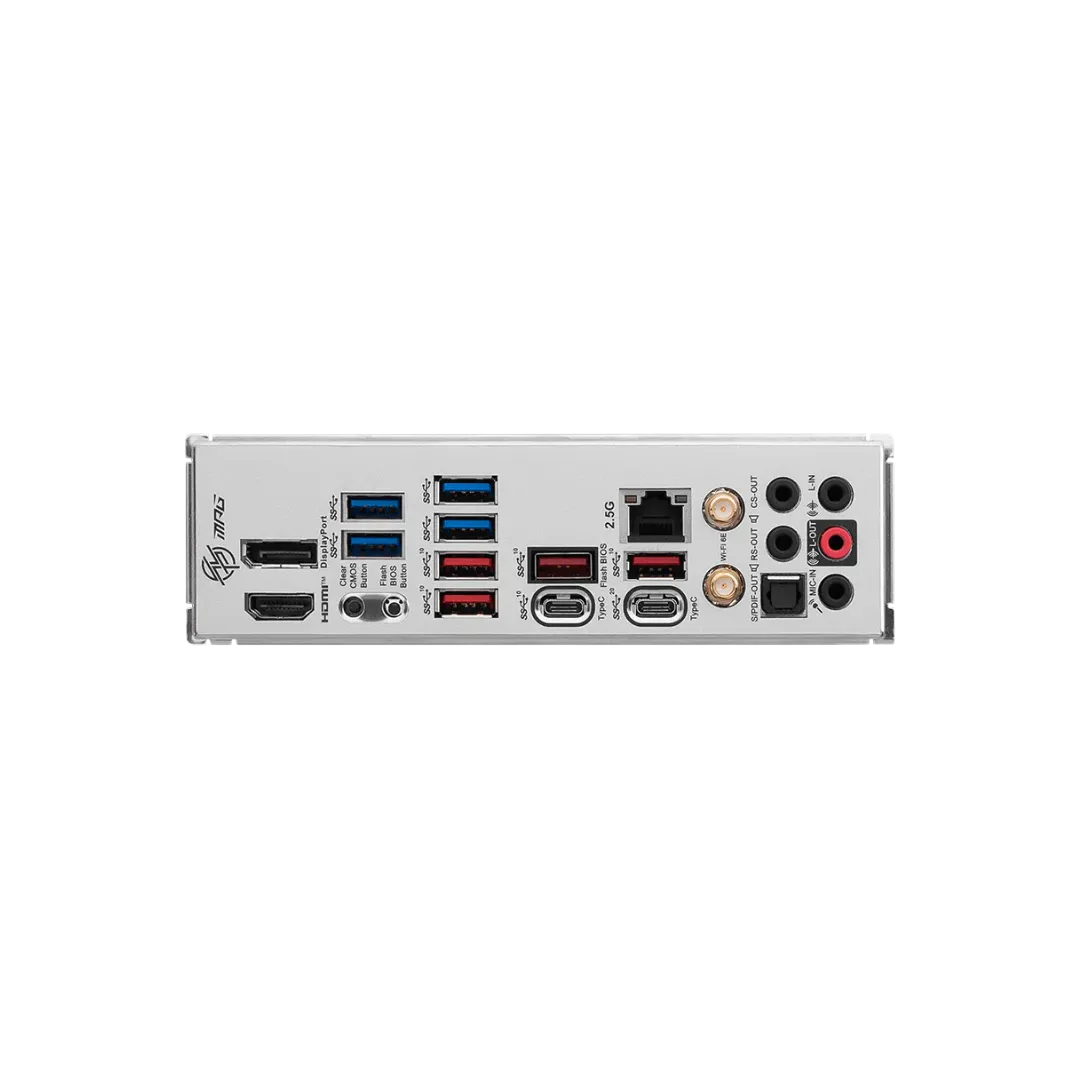

| USB | 4× USB 2.0 (Front) 4× USB 5Gbps Type-A (Rear) 2× USB 5Gbps Type-A (Front) 4× USB 10Gbps Type-A (Rear) 1× USB 10Gbps Type-C (Rear) 1× USB 10Gbps Type-C (Front) 1× USB 20Gbps Type-C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal I/O | 1× Power Connector (ATX_PWR) 2× Power Connector (CPU_PWR) 1× CPU Fan 1× Pump Fan 6× System Fan 2× Front Panel (JFP) 1× Chassis Intrusion (JCI) 1× Front Audio (JAUD) 1× Tuning Controller Connector (JDASH) 3× Addressable V2 RGB LED Connector (JARGB_V2) 1× RGB LED Connector (JRGB) 1× TPM Pin Header (Supports TPM 2.0) 4× USB 2.0 Ports 2× USB 5Gbps Type-A Ports 1× USB 10Gbps Type-C Port |
| Wireless LAN & Bluetooth | Intel® Wi-Fi 6E Wireless module pre-installed in M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz), up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth® 5.3**, FIPS, FISMA *Wi-Fi 6E 6GHz may depend on each country’s regulations and is ready in Windows 11. **Bluetooth 5.3 is ready in Windows 10 build 21H1 and Windows 11. |
| LED Feature | 4× EZ Debug LED 1× EZ LED Control Switch |
| Operating System | Supports Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mm × 304.8mm |
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 6 Months |
