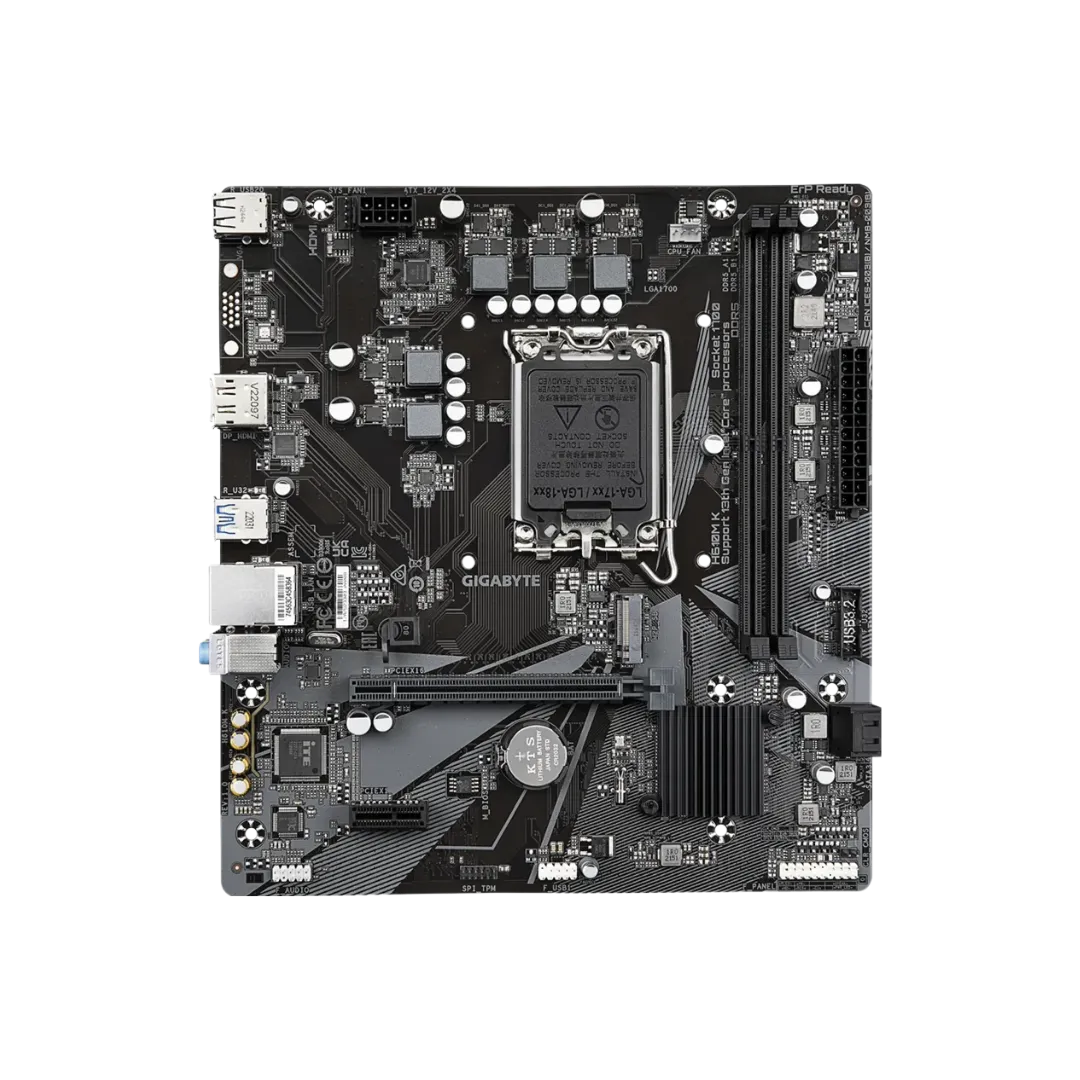

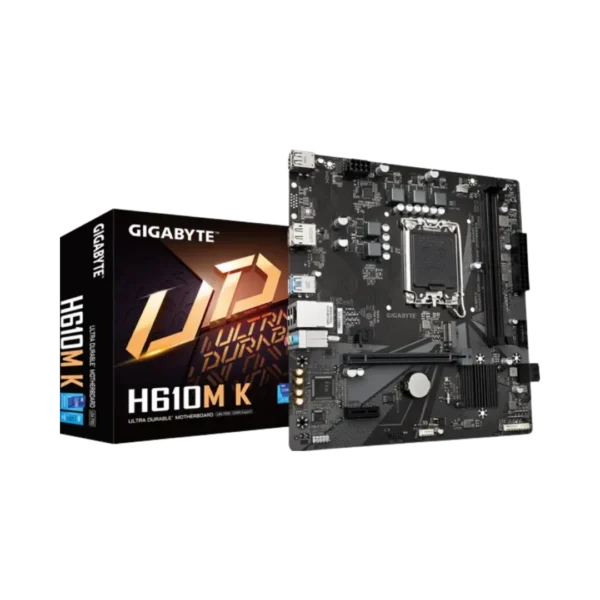

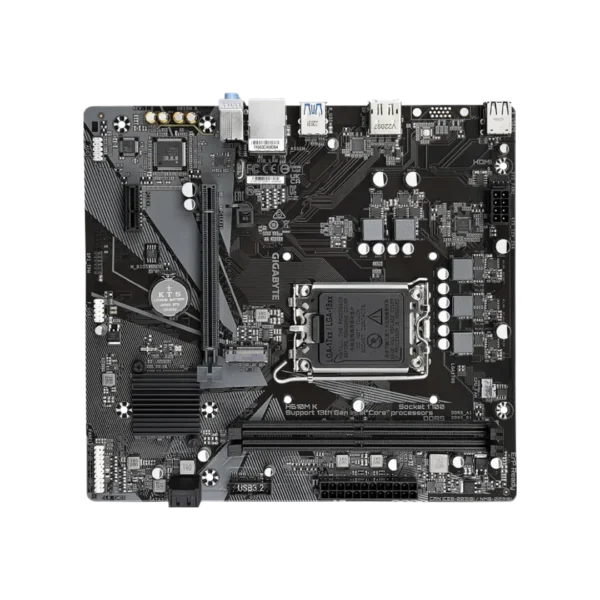

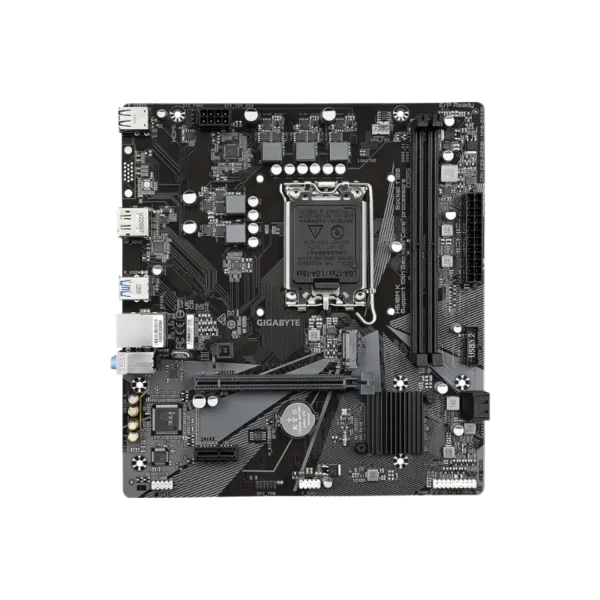

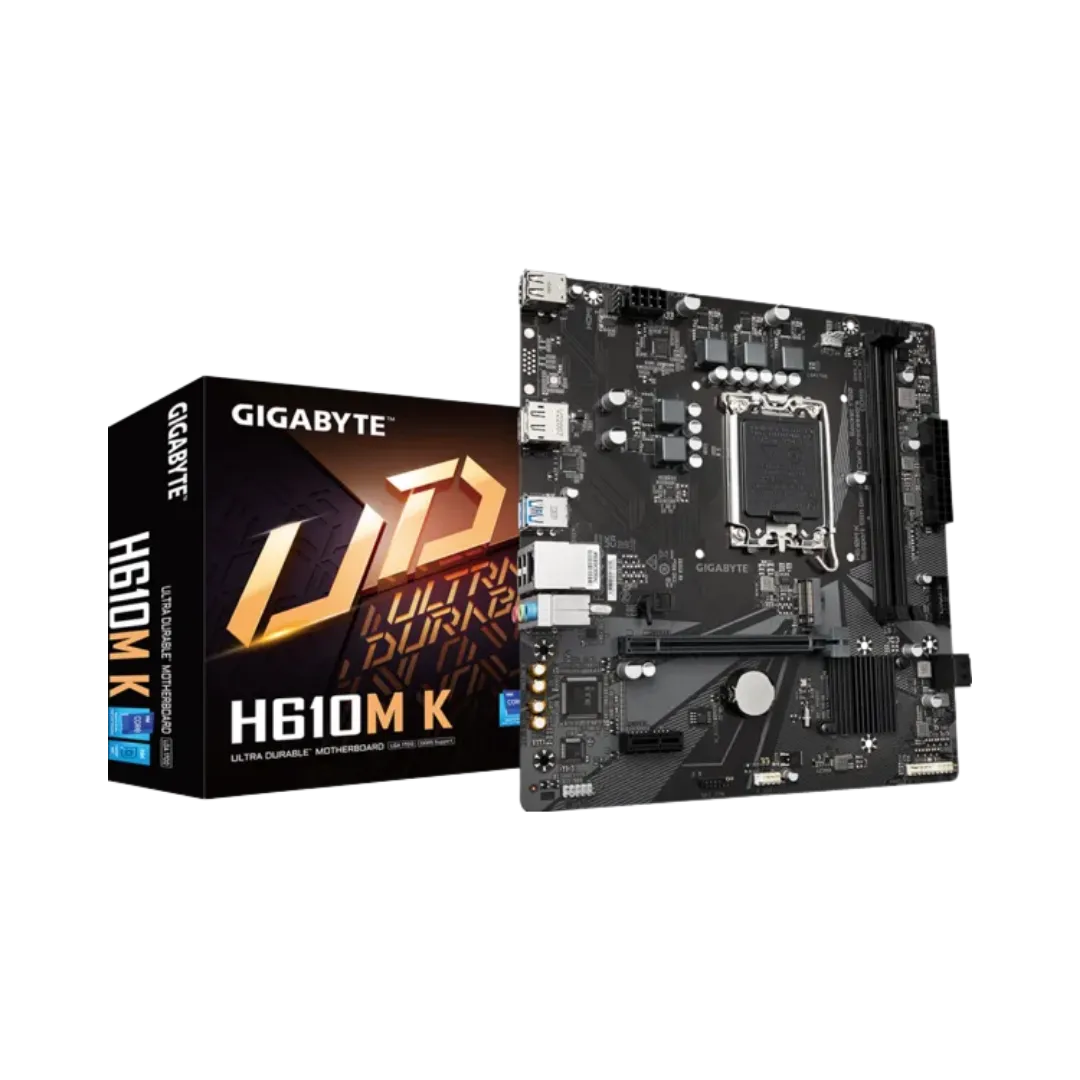

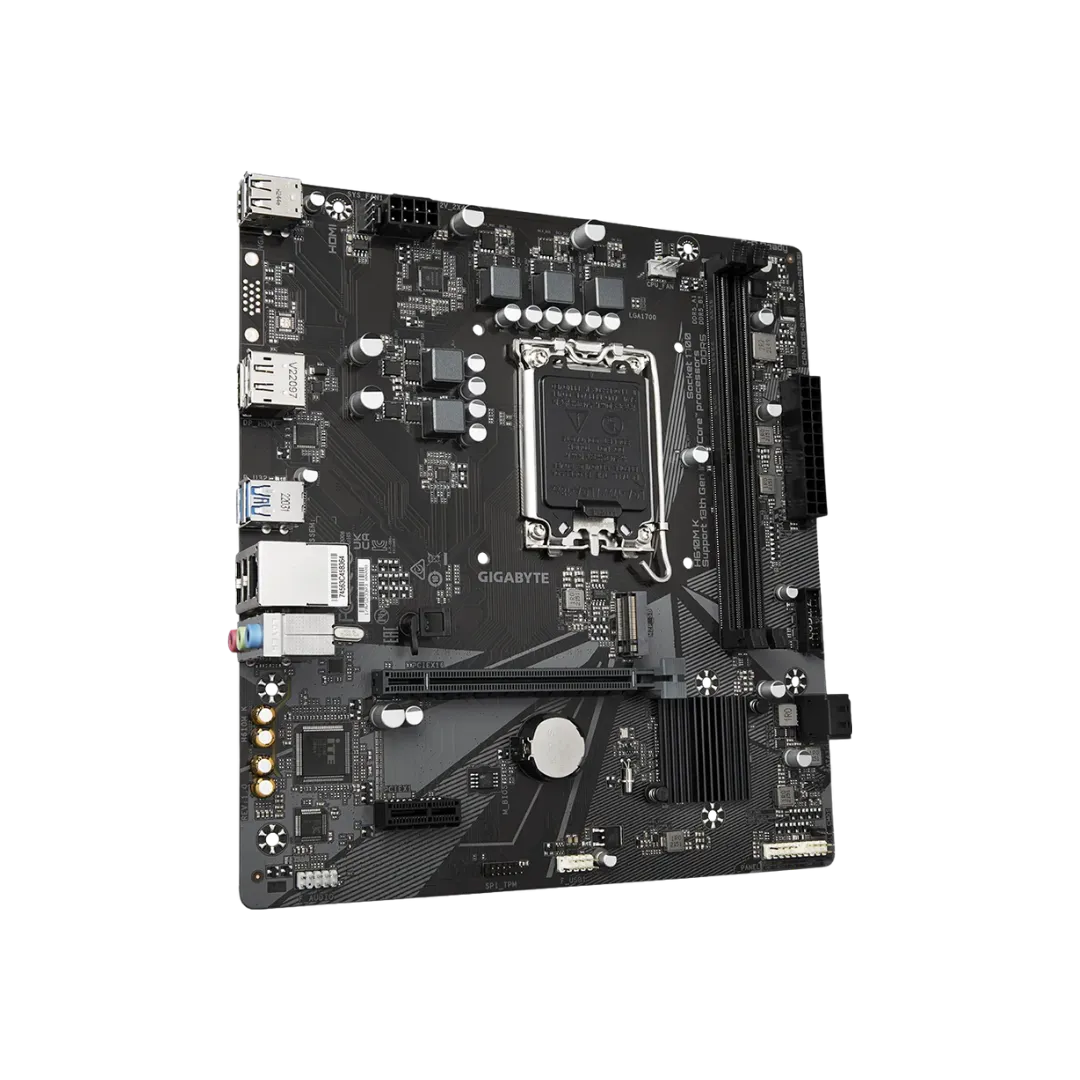

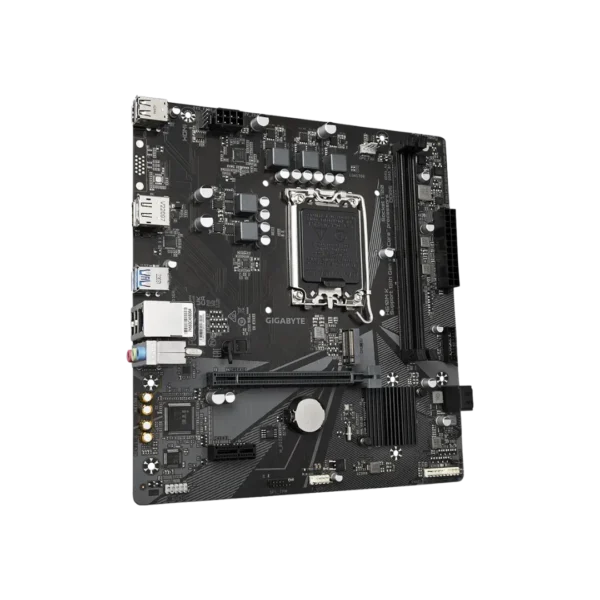

Gigabyte H610M K DDR5 Intel Micro-ATX Motherboard
₨27,499.00
Gigabyte H610M K DDR5 Intel Micro-ATX Motherboard
About this item
- Intel H610 Chipset
- LGA1700 Socket
- Dual-Channel DDR5
- PCIe 4.0 x16 Slot
WarrantyÂ
1 Year
Description
PCIe 4.0 Design, Gen3 x4 M.2 ,GbE LAN ,Anti-Sulfur Resistor, Smart Fan 6
Product Description
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​
- GbE LAN with Bandwidth Management​
- NVMe PCIe 3.0 x4 M.2​
- High Quality Audio Capacitors and Audio Noise Guard​
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
- GIGABYTE APP Center, Simple and Easy Use​
- Anti-Sulfur Resistors Design​
Specifications
| Specification | Details |
|---|---|
| CPU | LGA1700 socket supporting 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. L3 cache varies by CPU. Refer to the CPU Support List for supported models. |
| Chipset | Intel® H610 Express Chipset |
| Memory | 2 × DDR5 DIMM sockets supporting up to 128GB of system memory (64GB per DIMM). Dual-channel memory architecture. 14th and 13th Gen Intel® Core™ i9/i7 processors: DDR5 5600/5200/4800/4400 MT/s. 13th Gen Intel® Core™ i5/i3 and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors: DDR5 4800/4400 MT/s. Supports ECC Un-buffered DIMMs (1Rx8/2Rx8, operating in non-ECC mode), non-ECC Un-buffered DIMMs (1Rx8/2Rx8/1Rx16), and Extreme Memory Profile (XMP) memory modules. Supported memory speeds and configurations depend on the CPU and memory modules. |
| Onboard Graphics | Integrated Intel® HD Graphics support (processor-dependent). 1 × HDMI port supporting up to 4096 × 2160 at 60Hz; HDMI 2.1 and HDCP 2.3 support. 1 × DisplayPort supporting up to 4096 × 2304 at 60Hz; DisplayPort 1.2 and HDCP 2.3 support. |
| Audio | Realtek® Audio CODEC; High Definition Audio; supports 2/4/5.1/7.1-channel audio. 7.1-channel audio configuration requires adjustment through the audio software. |
| LAN | Realtek® GbE LAN chip; supports 1 Gbps, 100 Mbps, and 10 Mbps Ethernet. |
| Expansion Slots | CPU: 1 × PCIe 4.0 x16 slot (operates at x16). Chipset: 1 × PCIe 3.0 x1 slot (operates at x1). |
| Storage Interface | Chipset: 1 × M.2 connector (Socket 3, M key, type 2280; PCIe 3.0 x4/x2 SSD support); 2 × SATA 6Gb/s connectors. |
| USB | Chipset: 4 × USB 3.2 Gen 1 ports (2 rear ports and 2 via internal USB header); 6 × USB 2.0/1.1 ports (4 rear ports and 2 via internal USB header). |
| Internal I/O Connectors | 1 × 24-pin ATX main power connector; 1 × 8-pin ATX 12V power connector; 1 × CPU fan header; 1 × system fan header; 1 × M.2 Socket 3 connector; 2 × SATA 6Gb/s connectors; 1 × front panel header; 1 × front panel audio header; 1 × USB 3.2 Gen 1 header; 1 × USB 2.0/1.1 header; 1 × Trusted Platform Module (TPM) header (for GC-TPM2.0 SPI V2 module only); 1 × Clear CMOS jumper. |

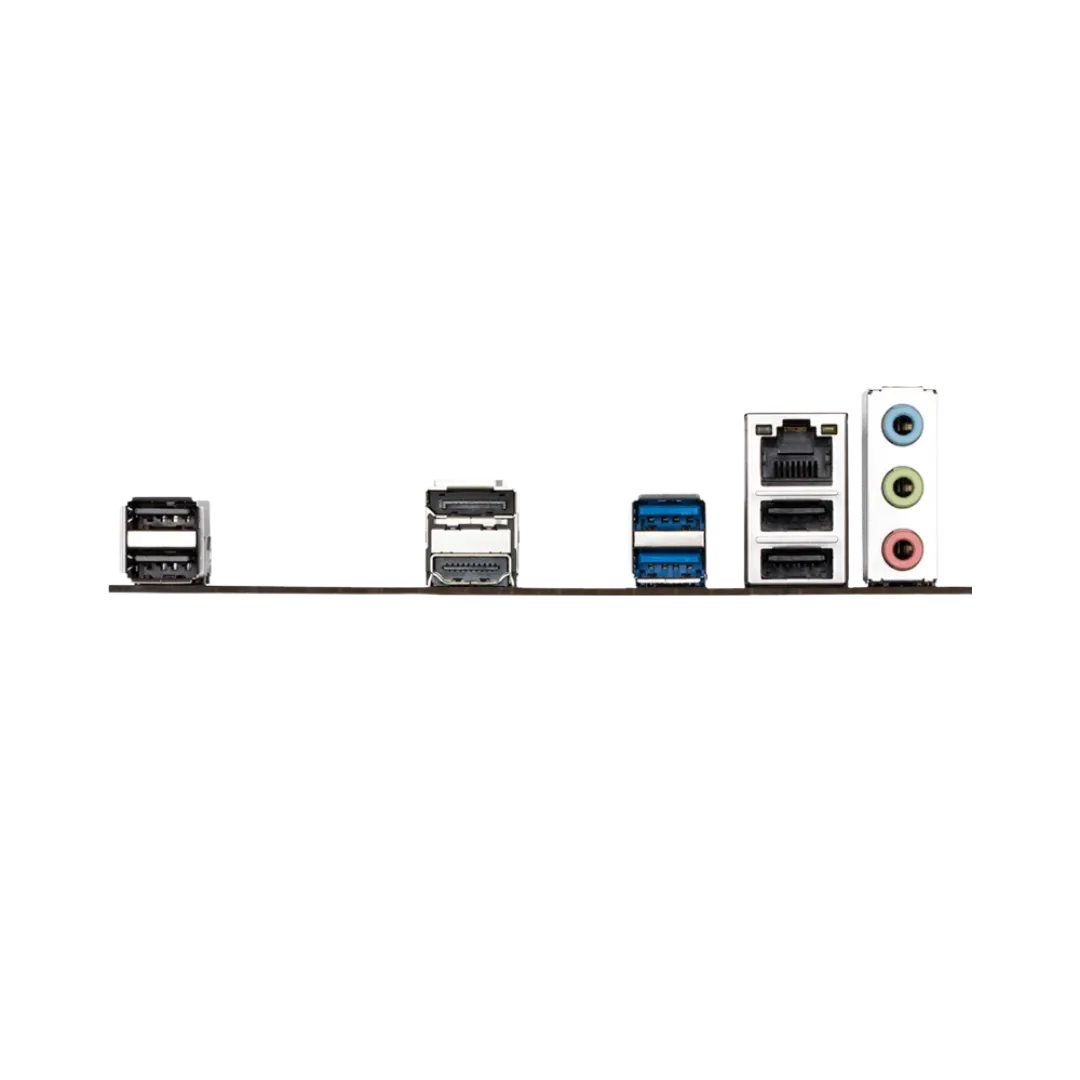

| Back Panel Connectors | 1 × HDMI port; 1 × DisplayPort; 2 × USB 3.2 Gen 1 ports; 4 × USB 2.0/1.1 ports; 1 × RJ-45 port; 3 × audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection; temperature detection; fan speed detection; water-cooling flow-rate detection; fan-fail warning; fan speed control (dependent on the installed cooler). |
| BIOS | 1 × 128 Mbit flash; licensed AMI UEFI BIOS; support for PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. |
| Unique Features | Supports APP Center, including @BIOS, EasyTune, Smart Backup, and System Information Viewer. Also supports Q-Flash and Xpress Install. Application availability and functionality may vary by motherboard model. |
| Bundled Software | Norton® Internet Security (OEM version); LAN bandwidth management software (service discontinued following termination of the software provider’s contract). |
| Operating System | Supports Windows 11 64-bit and Windows 10 64-bit. |
| Form Factor | Micro ATX; 23.0 × 21.5 cm |
For further detail, visit official website.
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 1 Year |
