Description
Buy Maxsun Challenger B450M Motherboard in Pakistan | TechMatched
Key Features
- Supports AMD Ryzenâ„¢ 5000 Series Desktop Processors

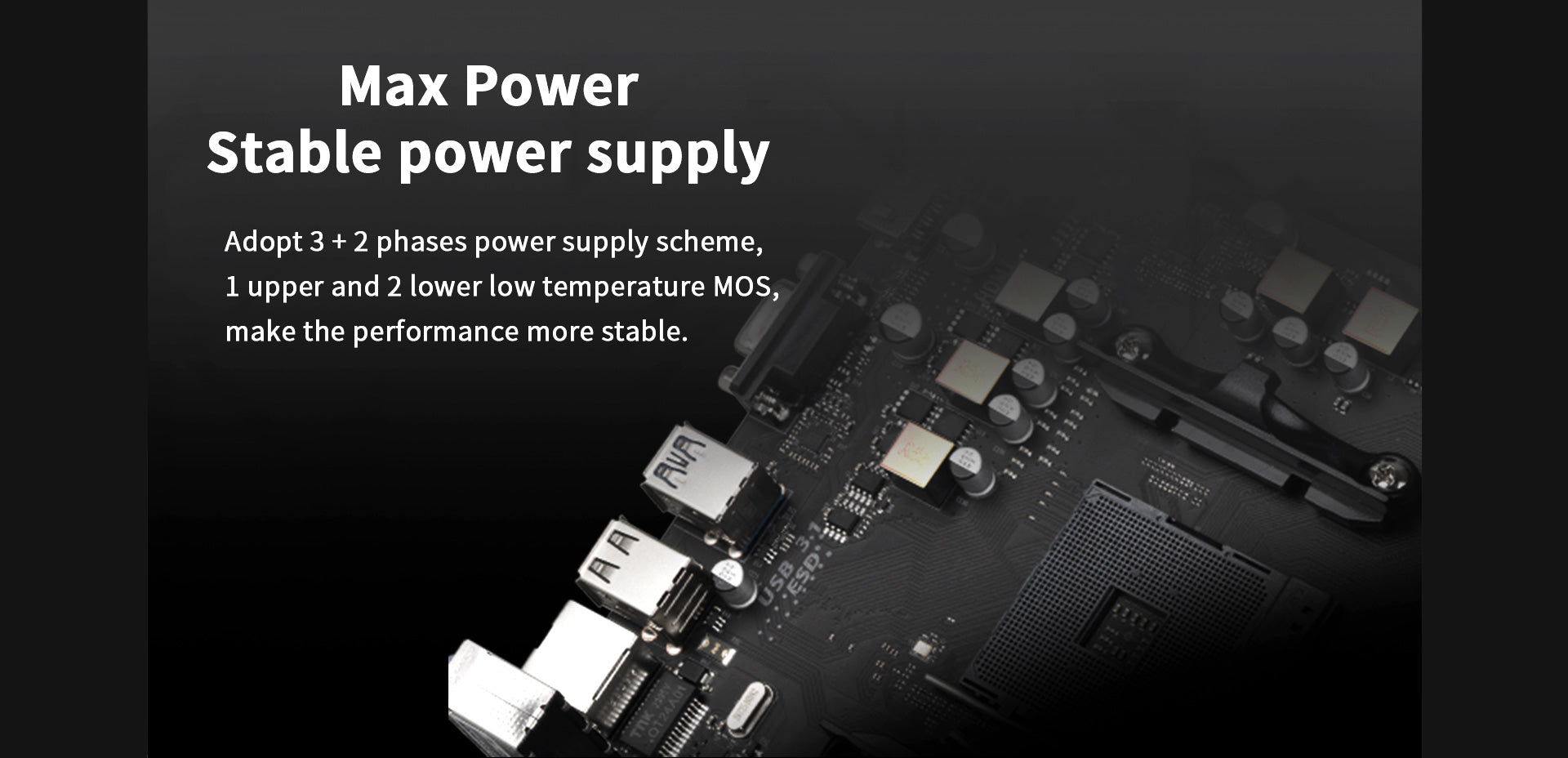

- 5 phase power supply
- Full load R5 5600/4500/3600
- Full speed M.2
- Support NVMe/SATA protocol
- Memory overclocking
- Dual channel 2*DIMM
MAXSUN AMD Challenger B450M

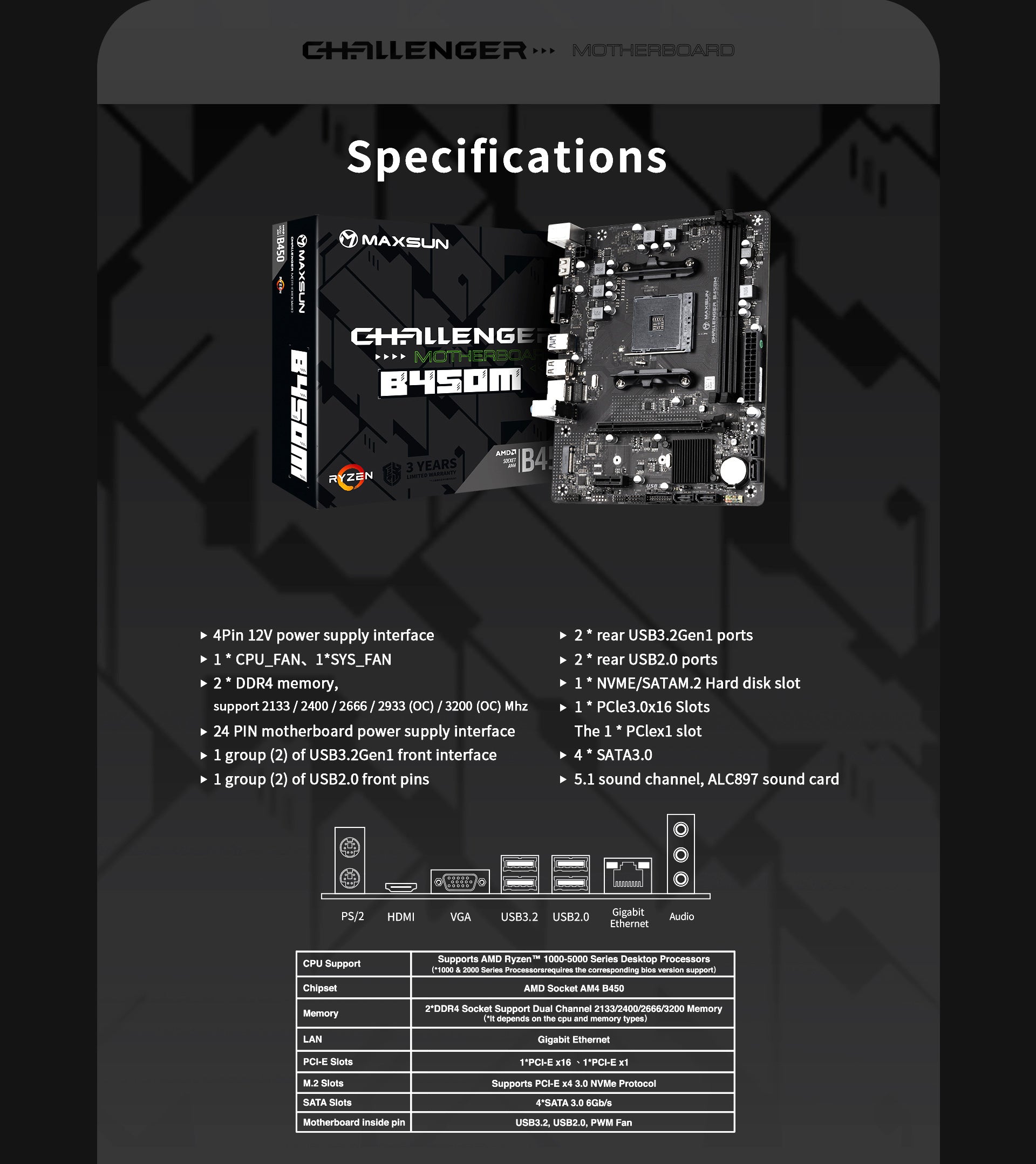

Specifications
- CHIPSET: AMD® B450 Chipset
- CPU (Max Support): AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 G-Series Processors/ AMD Ryzenâ„¢ 5000 Series Processors/ AMD Ryzenâ„¢ 4000 G-Series Processors/ AMD Ryzenâ„¢ 3000 Series Processors

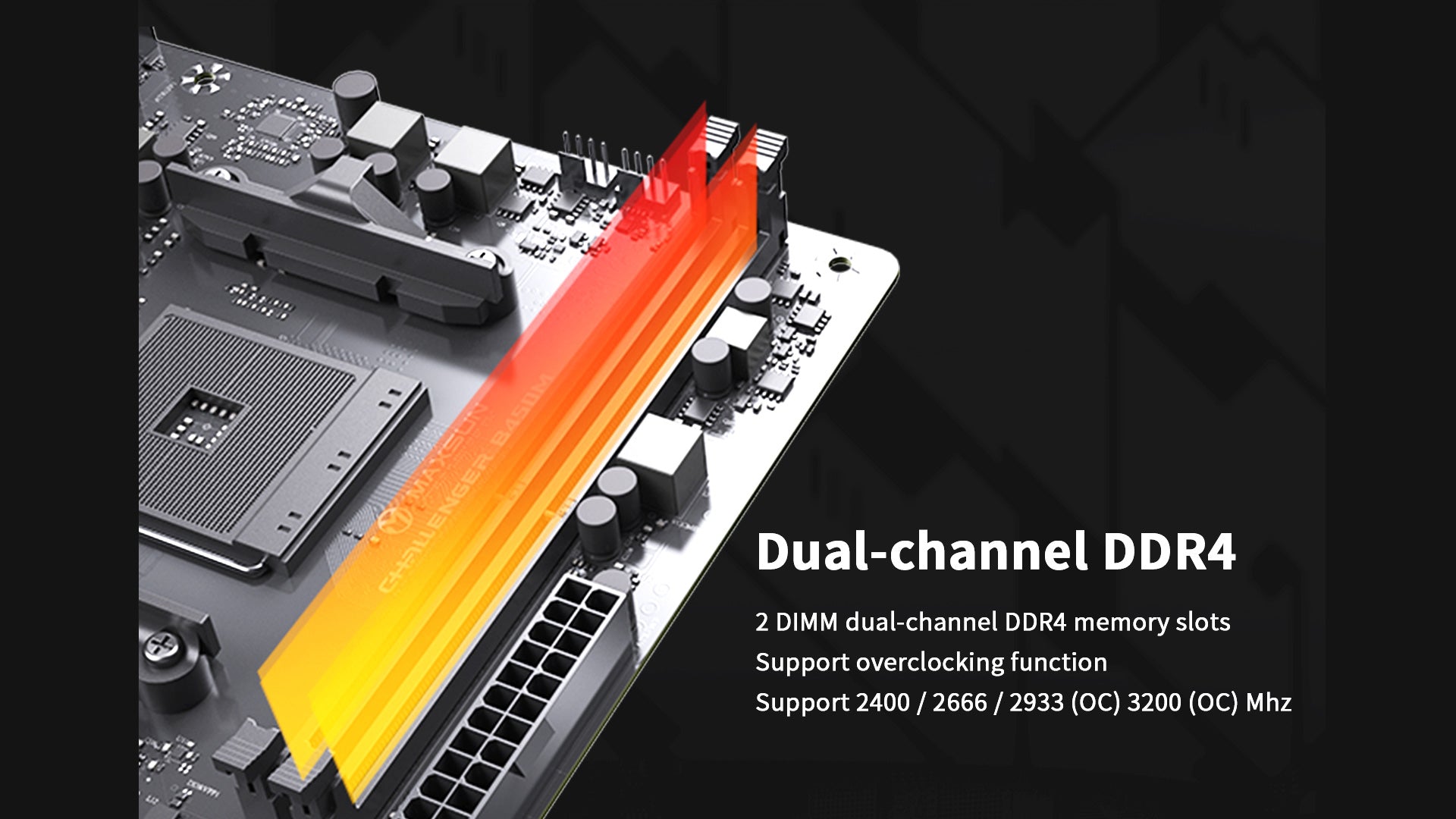

- MEMORY: 2x DDR4, Maximum Memory Capacity 64GB
- Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
- Supports AMD® A-XMP OC
- Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS: 1x VGA
- *Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
- 1x HDMIâ„¢port
- *HDMIâ„¢ port supports up to 4K@30Hz
- *Graphics specifications may vary between CPU types.

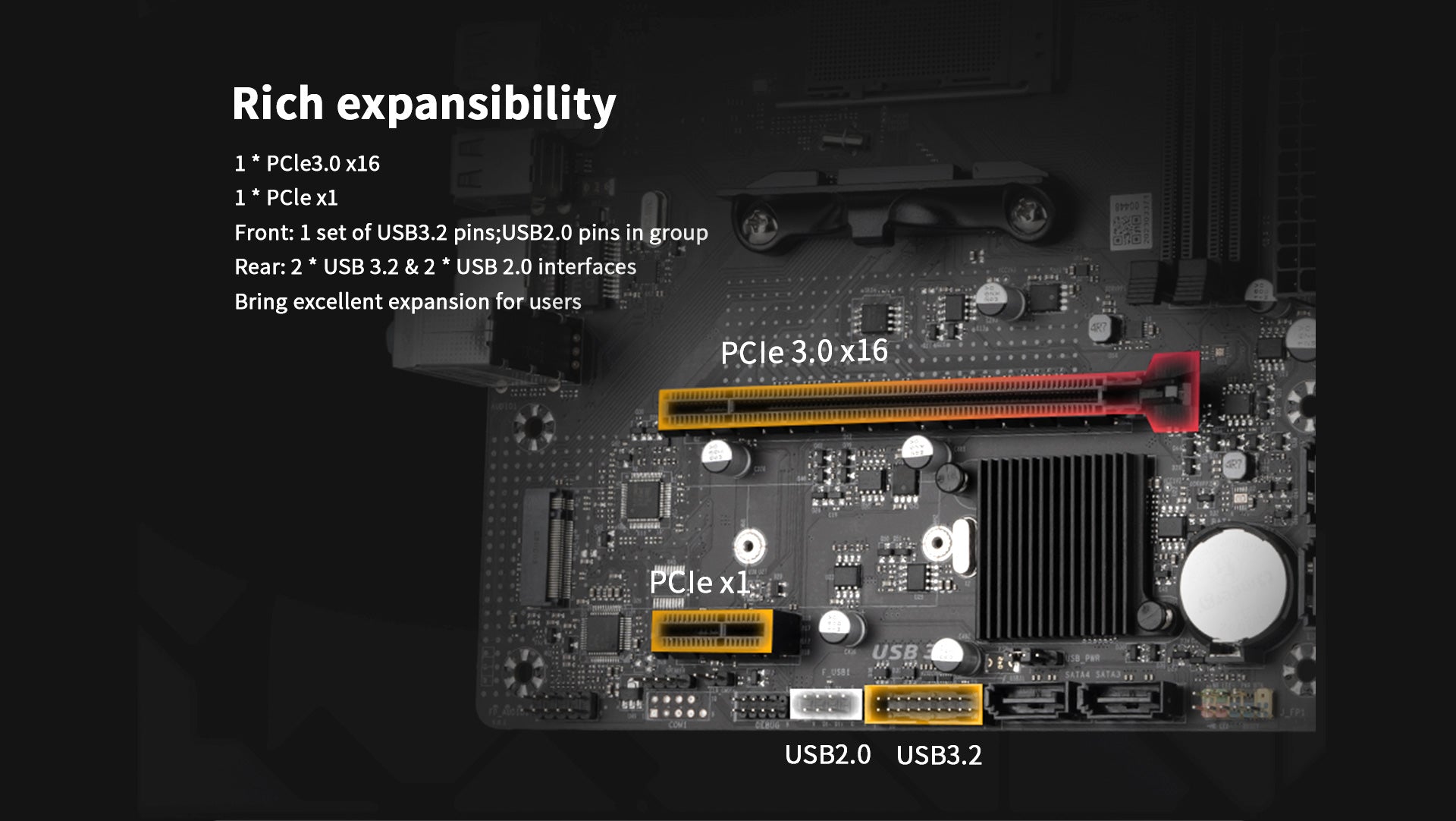

- EXPANSION SLOT: 1x PCIe 3.0 x16 slot and 1x PCIe 3.0 x1 slot
- STORAGE: M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
- 4x SATA 6Gb/s ports
- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB: *Front USB (Total 4 ports)
- 2x USB 3.2 Gen1 Type A
- 2x USB 2.0
- *Rear USB (Total 4 ports)
- 2x USB 3.2 Gen1 Type A
- 2x USB 2.0
- LAN: Realtek® RTL8111H 1G LAN
- AUDIO: Realtek® ALC897 Codec and 5.1-Channel High Definition Audio
- INTERNAL I/O: 1x 24-pin Power Connector(ATX_PWR)
- 1x 4-pin Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x System Fan
- 1x PS/2 interface
- 1x M.2 slots (Key-M)
- 4x SATA 6Gb/s ports
- 1x 4-Pin SPEAKER
- 1x Front Audio
- 1x COM_A Port
- 1x 9-Pin DEBUG_CON
- 1x CLR CMOS
- LED FEATURE: Without Debug LED
- OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR M-ATX: 220mm x 175mm
“TechMathced offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
For further details, visit manufacturer website, here.
For similar products, visit more here.
