About this item
- AMD AM5 Socket
- 2x DIMMs, 8200+ MT/s (OC)
- Micro ATX Form Factor
- Built in WiFi
Warranty!
10 Months
Description
Buy Asus B850M AYW Gaming Wifi Micro-ATX Motherboard in Pakistan | TechMatched
Asus B850M AYW Gaming Wifi Motherboard, Socket AM5, Micro-ATX, DDR5 Up To 128GB, 2x M.2, Wi-Fi 6, Realtek 2.5Gb Ethernet
Product Description

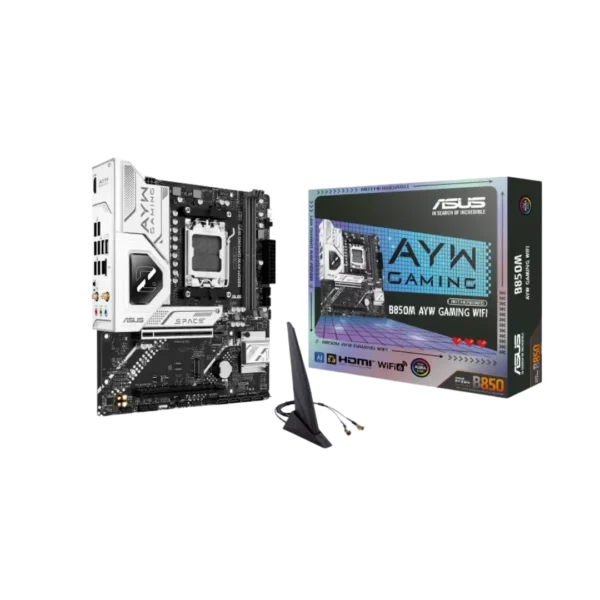

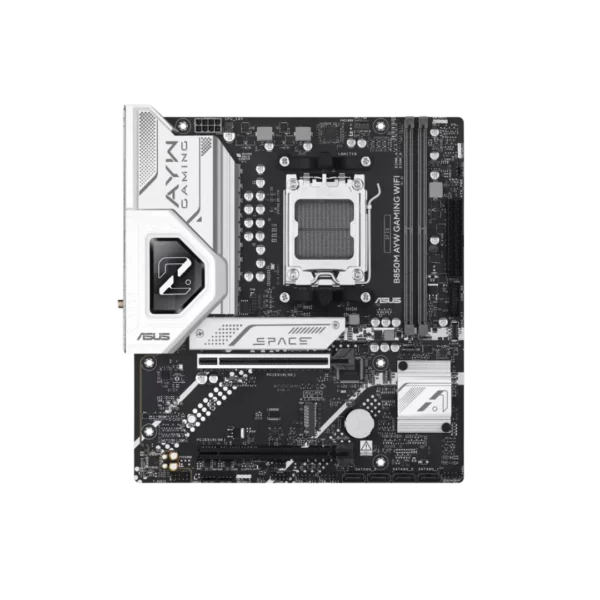

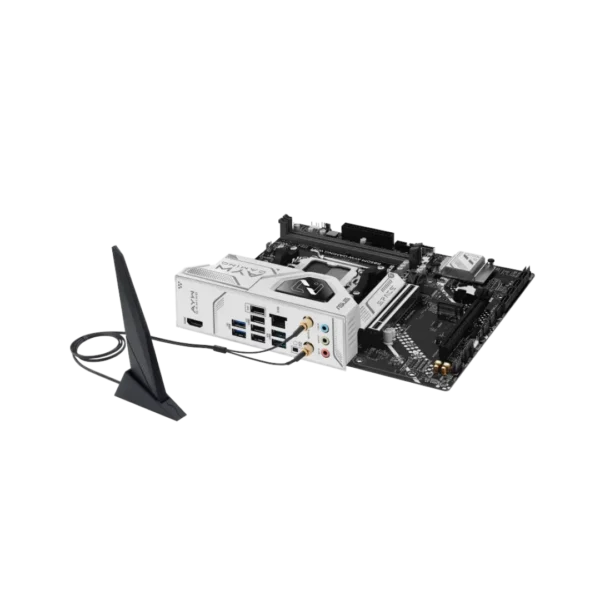

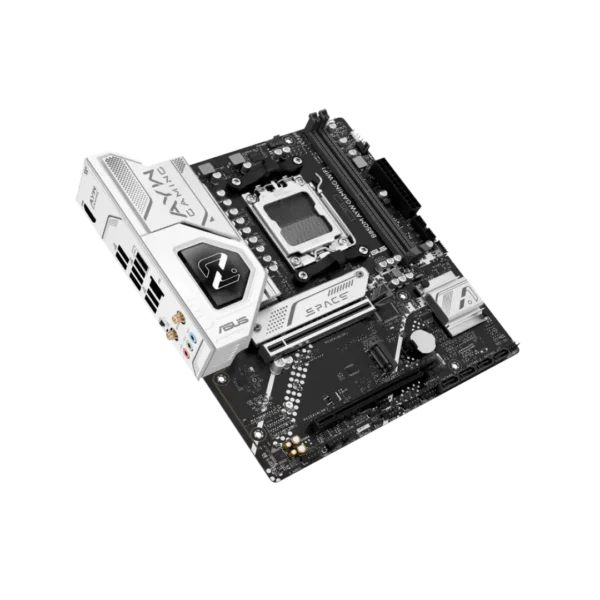

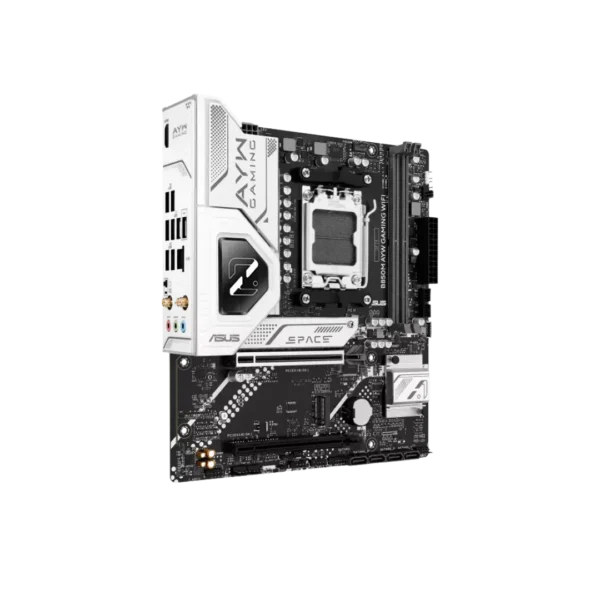

Asus B850M AYW Gaming Wifi Micro-ATX Motherboard
ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specification
| Specification | Details |
|---|---|
| Model | ASUS B850M AYW GAMING WIFI |
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| CPU Support | Up to 170W CPU |
| Chipset | AMD B850 |
| Memory Slots | 2 × DIMM |
| Maximum Memory | 128GB |
| Memory Type | DDR5 |
| Memory Speed | Up to 8200+ MT/s (OC) with Ryzen 9000; 9600+ MT/s (OC) with Ryzen 8000; 8000+ MT/s (OC) with Ryzen 7000 |
| Memory Architecture | Dual Channel |
| Memory Support | ECC & Non-ECC Unbuffered DIMM, AMD EXPO™, ASUS AEMP |
| Graphics Output | 1 × HDMI™ 2.1, up to 4K@60Hz |
| PCIe Slots | 1 × PCIe 5.0 x16 (Ryzen 9000/7000); 1 × PCIe 4.0 x16 (x8/x4, Ryzen 8000); 1 × PCIe 4.0 x16 (x4, B850 chipset) |
| M.2 Slots | 2 × M.2 Key M, 2280 |
| M.2 Support | M.2_1: PCIe 5.0 x4 / PCIe 4.0 x4 depending on CPU; M.2_2: PCIe 4.0 x4/x2 depending on CPU |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 with Ryzen 9000; RAID 0/1 with Ryzen 8000; RAID 0/1/10 with Ryzen 7000 |
| Ethernet | 1 × Realtek 2.5Gb Ethernet |
| Wireless | Wi-Fi 6, 1×1 802.11ax |
| Wi-Fi Bands | 2.4GHz / 5GHz |
| Bluetooth | Bluetooth 5.3 |
| Rear USB | 2 × USB 10Gbps Type-A; 2 × USB 5Gbps Type-A; 4 × USB 2.0 Type-A |
| Front USB | 1 × USB 5Gbps Type-C; 1 × USB 5Gbps header; 2 × USB 2.0 headers |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio |
| Audio Features | Audio Shielding, Premium Audio Capacitors, Dedicated Audio PCB Layers |

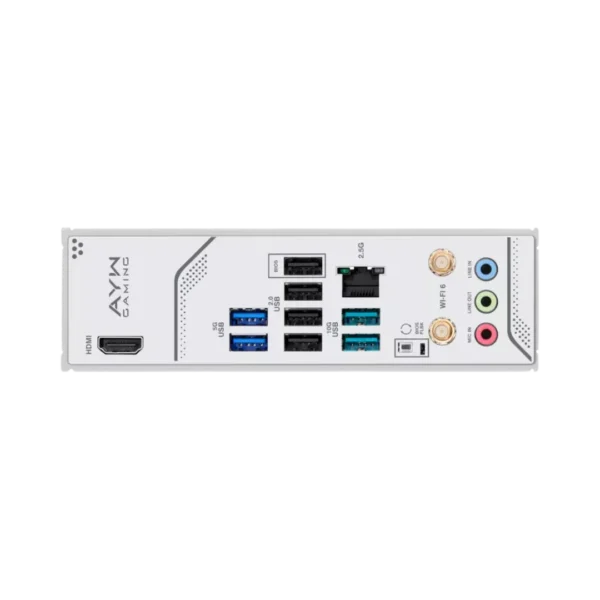

| Back Panel I/O | 8 × USB, 1 × HDMI, 1 × Wi-Fi module, 1 × 2.5Gb Ethernet, 3 × Audio jacks, 1 × BIOS FlashBack™ button |
| CPU Fan Header | 1 × 4-pin |
| Chassis Fan Headers | 3 × 4-pin |
| Power Connectors | 1 × 24-pin Main Power, 1 × 8-pin +12V CPU Power |
| RGB Headers | 3 × Addressable RGB Gen 2 |
| Other Internal Connectors | Clear CMOS, COM, F_AUDIO, S/PDIF Out, SPI TPM, System Panel |
| Protection Features | ASUS 5X Protection III, DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O |
| Cooling Features | M.2 Heatsink, VRM Heatsink Design |
| DIY Features | M.2 Q-Latch, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, Pre-mounted I/O Shield, BIOS FlashBack™ |
| RGB Software | Aura Sync, Aura Creator |
| Software | Armoury Crate, ASUS AI Advisor, ASUS DriverHub, TurboV Core, ASUS GlideX, ASUS CPU-Z |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| BIOS Features | ASUS CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, MyHotkey |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 / Windows® 10 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 × 22.1 cm (9.6 × 8.7 in) |
Visit the manufacturer’s website here
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|
