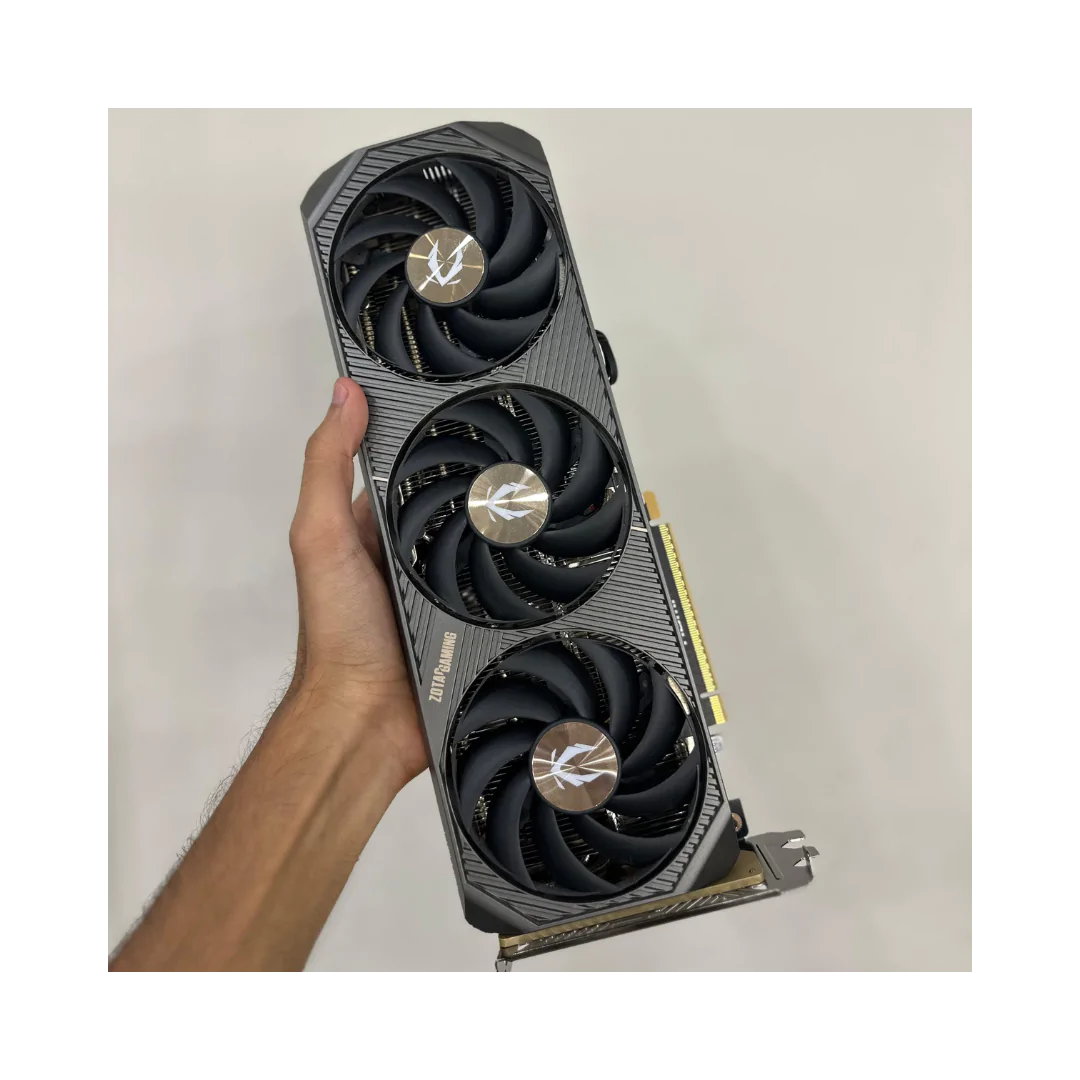

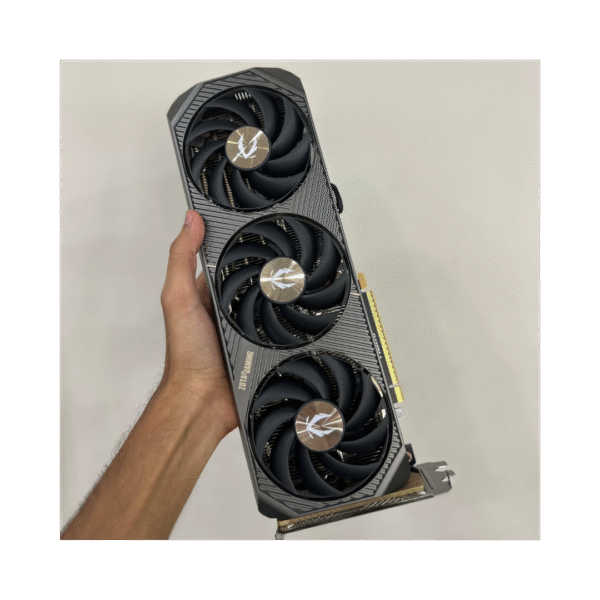

Description
- GPU Architecture: NVIDIA Blackwell (Gen‑5)
- DLSS: 4th Generation (DLSS 4) with Ray Reconstruction
- CUDA Cores: 10,752
- Boost Clock: ~2,640 MHz
- Memory: 16 GB GDDR7, 256‑bit interface
- Memory Speed: 30 Gbps effective
- PCI Express: PCIe 5.0 support
Advanced Cooling System:

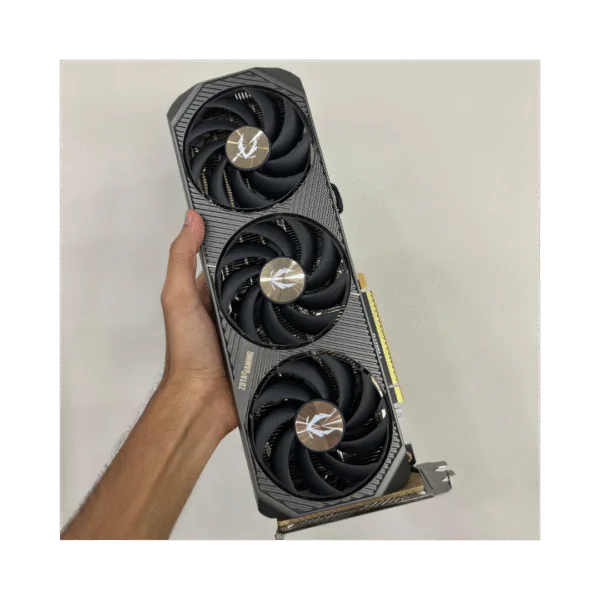

- IceStorm 3.0 Advanced Cooling Solution
- Large Vapor Chamber baseplate
- Triple BladeLink Fans for optimized airflow
- FREEZE Fan Stop technology for silent idle
- Active Fan Control for individual fan tuning
- Reinforced Metal Mid-Frame for structural stability

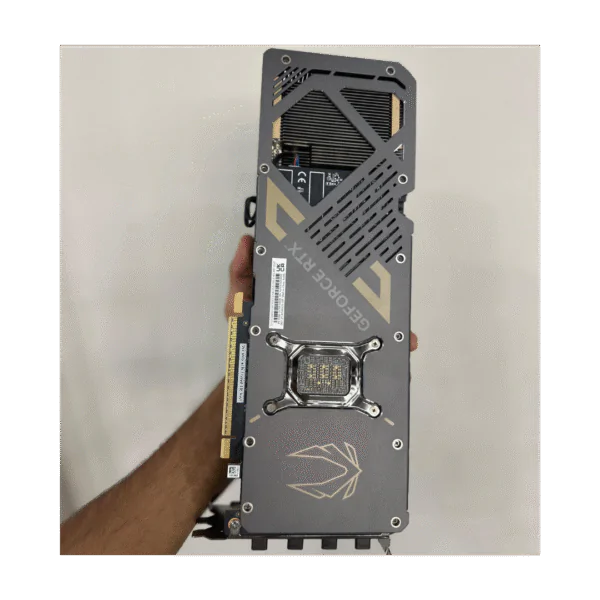

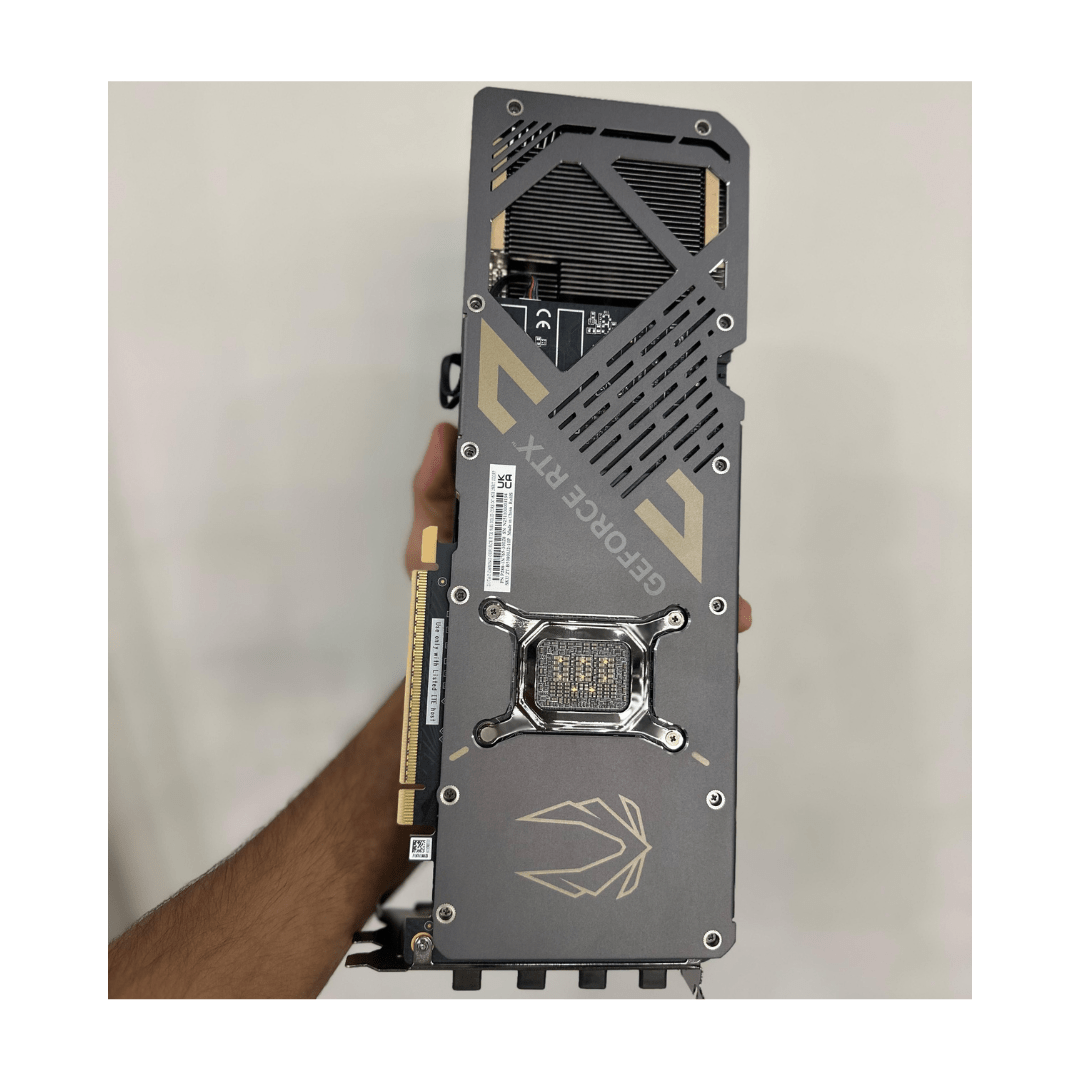

- Metal Backplate with cut-outs for heat dissipation
- Bundled with GPU Support Bracket to reduce sag
- 12V-2×6 Safety Light for secure power connection visibility

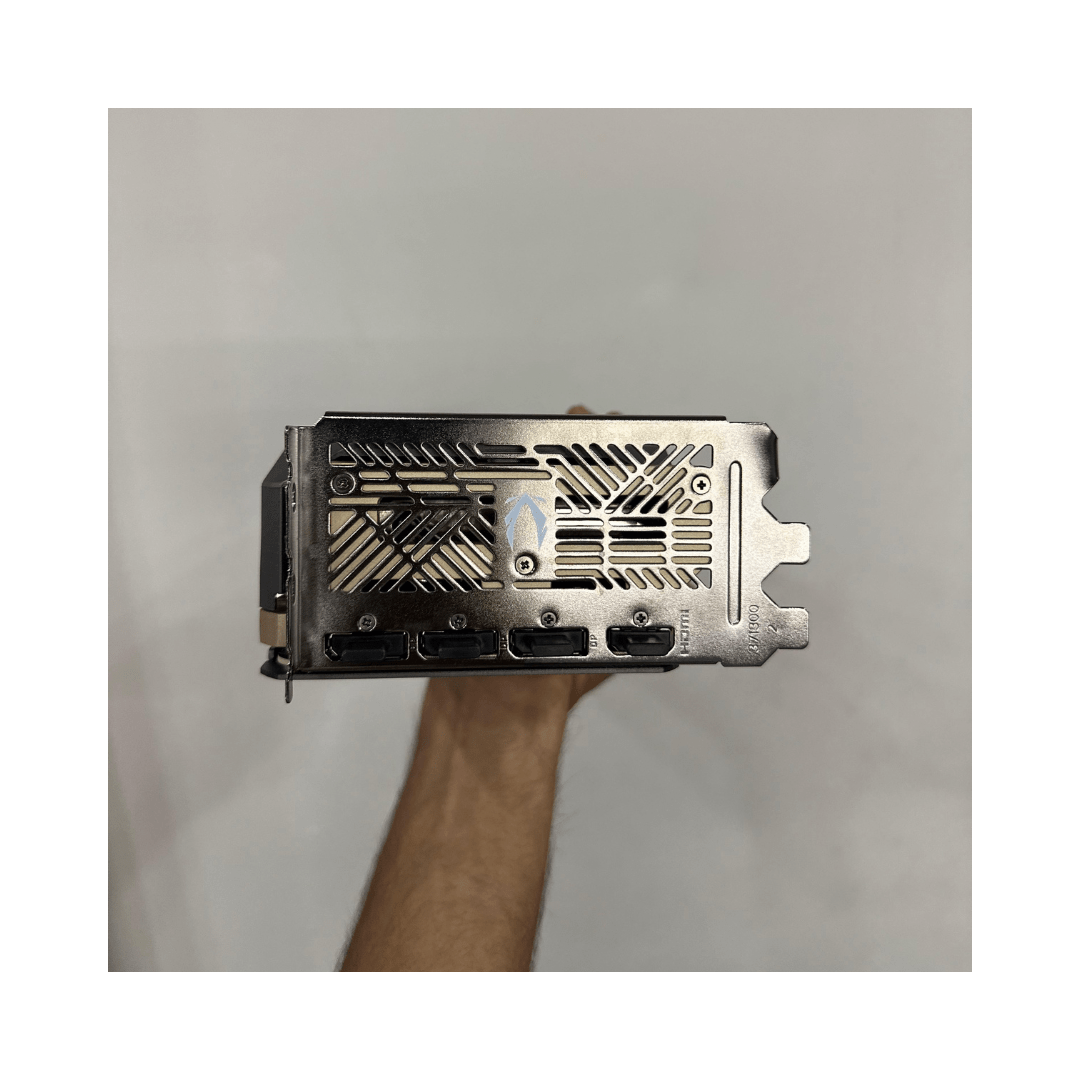

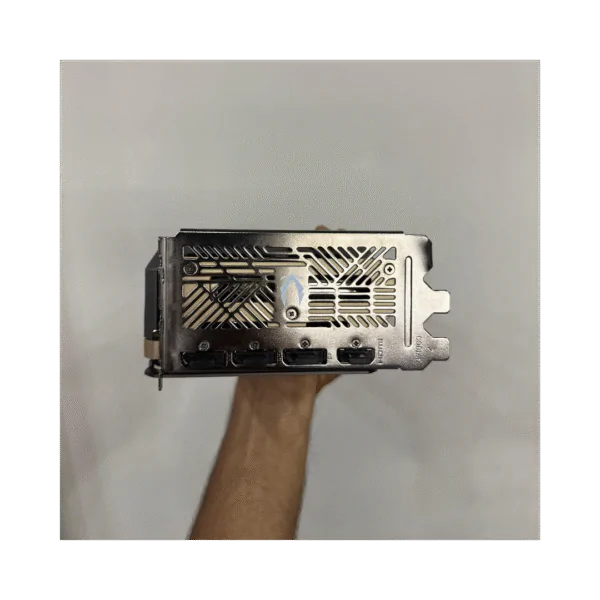

Display Outputs:
- 3 × DisplayPort 2.1b (UHBR20)
- 1 × HDMI 2.1b
- Supports up to 4 simultaneous displays
Display Support:
- Up to 4K @ 480Hz
- Up to 8K @ 165Hz with DSC
Power Requirements:
- Typical Power Draw: ~360W
- Recommended PSU: 850W
- Power Connector: 1 × 16‑pin (12V‑2×6)
Software & Features:
- DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
- Ray Tracing, DLSS 4, Reflex, RTX IO
- Dual BIOS switch for performance or quiet profiles
- Customizable SPECTRA RGB Lighting with SPECTRA LINK sync interface
Specifications
Category | Specification |
---|---|
GPU | NVIDIA GeForce RTX 5080 |
CUDA Cores | 10,752 |
AI TOPS | 1,801 |
Video Memory | 16GB GDDR7 |
Memory Bus | 256-bit |
Engine Clock | 2,640 MHz (Boost) |
Memory Clock | 30 Gbps |
PCI Express Interface | PCI Express 5.0 x16 |
DirectX Support | Microsoft DirectX 12 Ultimate |
OpenGL Support | 4.6 |
Display Outputs | 3 × DisplayPort 2.1b (UHBR20) 1 × HDMI 2.1b |
Max Resolution Support | Up to 4K @ 480Hz or 8K @ 165Hz (DSC) |
HDMI Features | 4K @ 480Hz HDR or 8K @ 120Hz HDR with DSC Gaming VRR (HDMI 2.1b Spec) |
HDCP Version | 2.3 |
Multi-Display Capability | Quad Display (Up to 4 monitors) |
Cooling System | IceStorm 3.0 Vapor Chamber BladeLink Fans FREEZE Fan Stop Active Fan Control |
RGB Lighting | SPECTRA RGB Lighting (SPECTRA LINK Sync) |
Frame / Design | Reinforced Metal Mid-Frame Metal Backplate |
Power Consumption | 360W (High power draw – refer to PSU manual) |
Recommended PSU | 850W |
Power Input | 1 × 12V-2×6 connector Includes 12V-2×6 Safety Light |
Slot Size | 2.5-slot |
SLI Support | No |
Supported OS | Windows 11 / Windows 10 64-bit (version 1809 or later) |
Card Dimensions | 303.5mm × 115.8mm × 55.7mm (11.9″ × 4.6″ × 2.2″) |
Accessories Included | User Manual 3 × 8-pin to 16-pin power adapter cables GPU Support Stand |
