Specifications
Specification Category | Details |
---|---|
GPU | NVIDIA GeForce RTX 5070 |
Architecture / Process Node | Blackwell (TSMC 4N FinFET, 5 nm) |
CUDA Cores / Shading Units | 6,144 CUDA Cores |
TMUs / ROPs | 192 TMUs / 64 ROPs (estimated) |
Ray Tracing / Tensor Cores | 48 RT Cores / 192 Tensor Cores (estimated) |
Base Clock | ~2,250 MHz (approximate base frequency) |
Boost Clock | Up to 2,512 MHz (Standard version) |
Memory | 12 GB GDDR7, 192‑bit bus, 28 Gbps effective, ~672 GB/s bandwidth |
PCI Interface | PCI-Express 5.0 ×16 |
TDP / Power Consumption | ~250 W |
Recommended PSU | 650 W |
Power Connector | 1 × 16-pin (12V‑2×6) PCIe (adapter included for 2× 8‑pin) |
Cooling & Design | Triple-fan IceStorm 2.0 cooling with FREEZE fan stop; full-length heatsink and aluminum backplate |
Fans | 3 × 90 mm Blade fans (tri-fan layout) |
Dimensions | ~304.4 × 115.8 × 41.6 mm (estimated) |

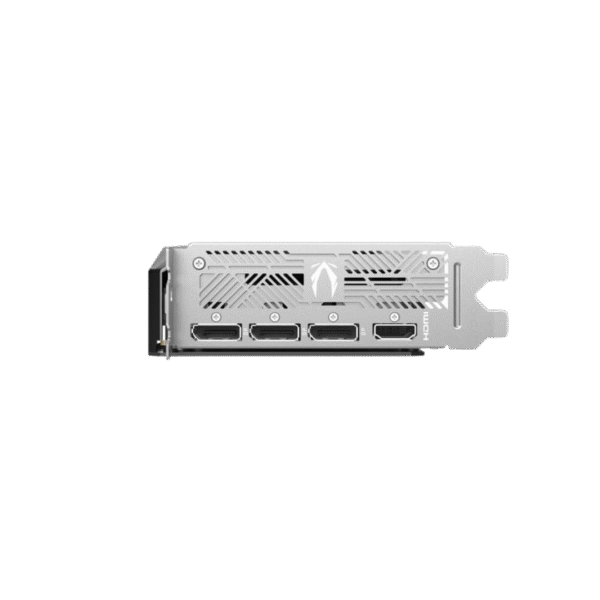

Display Outputs | 3 × DisplayPort 2.1b + 1 × HDMI 2.1b; up to 7680×4320 resolution |
DirectX / OpenGL Support | DirectX 12 Ultimate, OpenGL 4.6 |
NVIDIA Features | DLSS 4, Reflex, RTX IO, NVIDIA Studio, AV1 decode/encode, NVIDIA Broadcast |
Form Factor | 2-slot, ATX |
Operating System | Windows 10/11 (64-bit) |
System Requirements | PCIe x16 slot, 16 GB RAM recommended, 650 W PSU |
