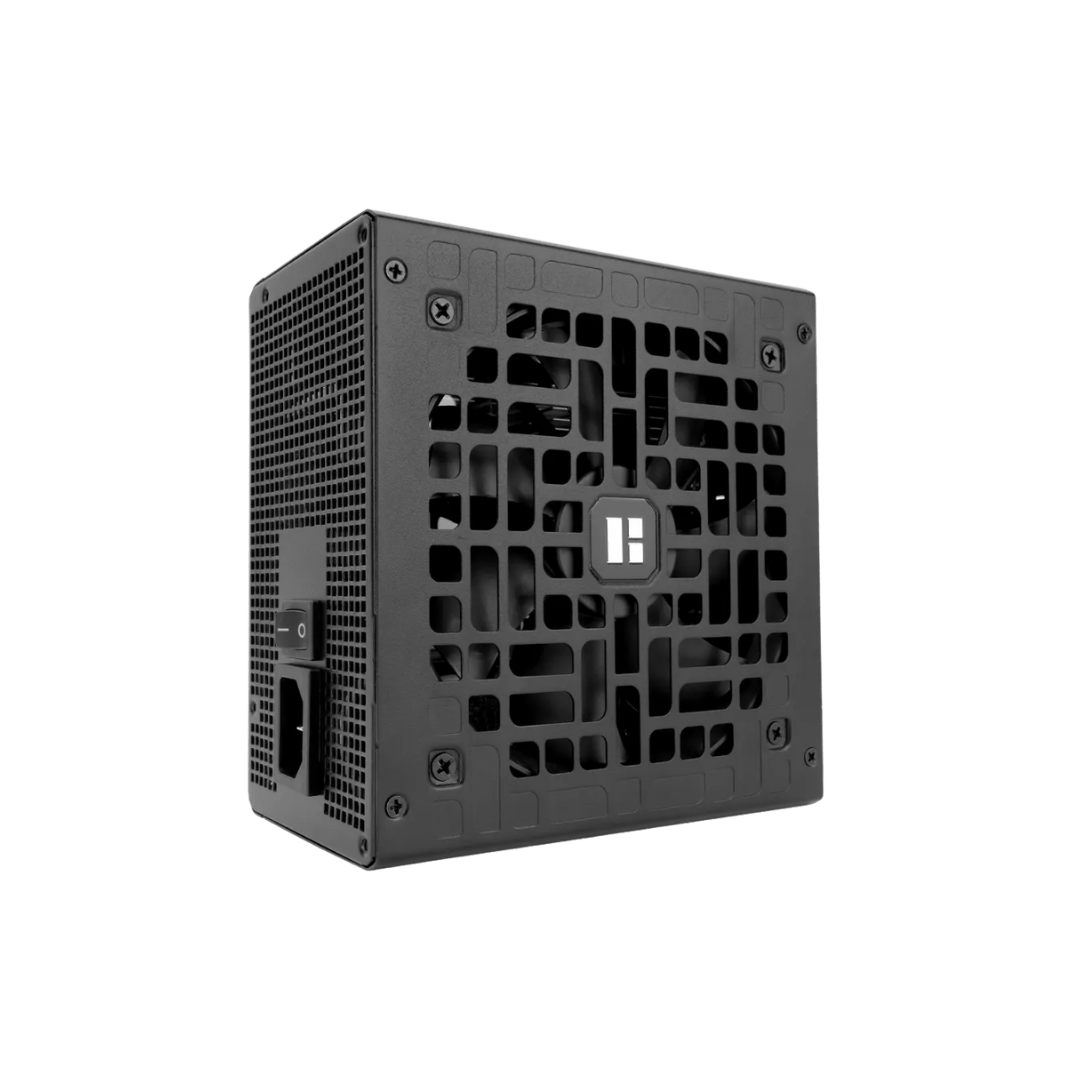

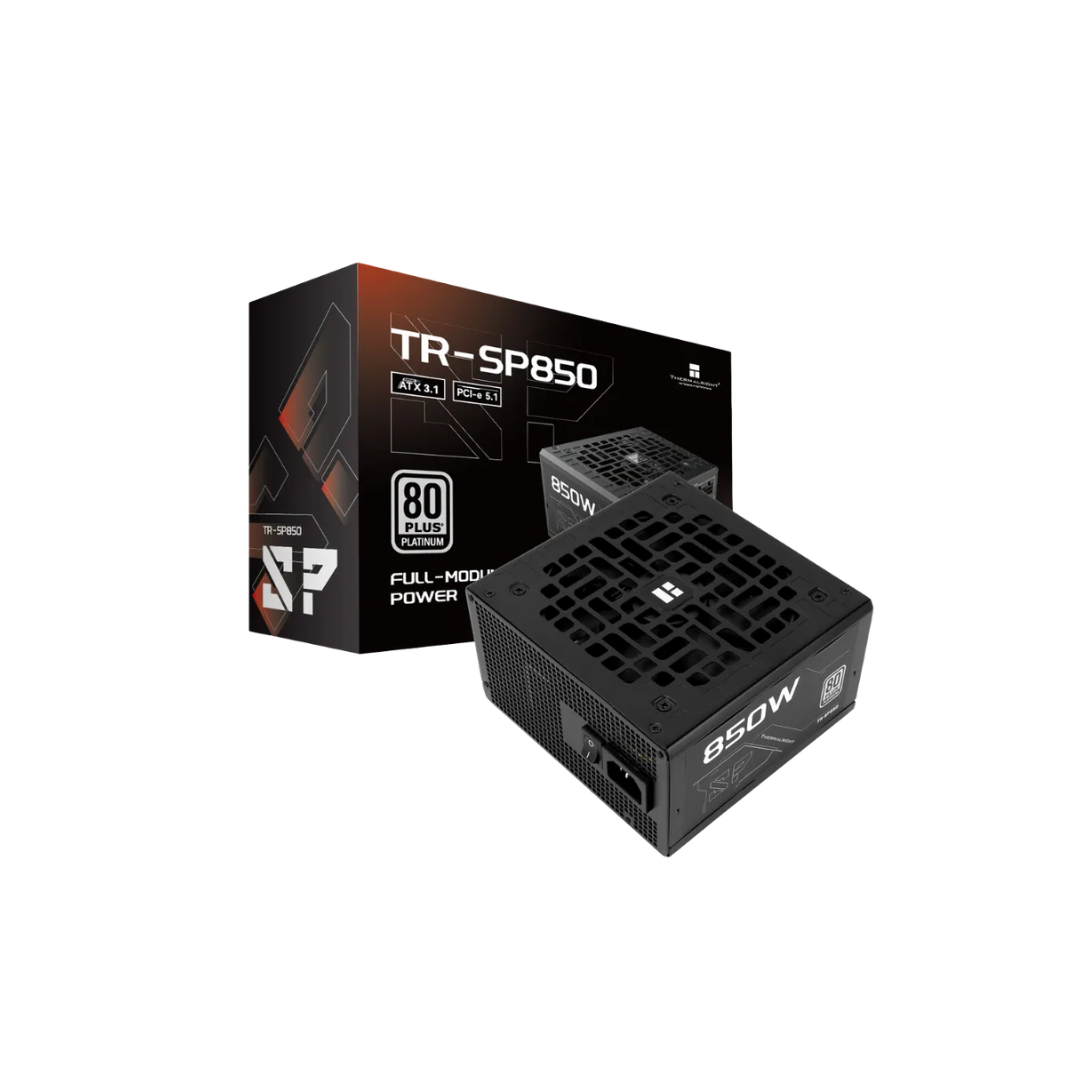

Thermalright TR‑SP850 850W 80+ Platinum Fully Modular ATX 3.1 PSU with PCIe 5.1 Support and Quiet 120mm Fan

Key Features

• 80 PLUS Platinum Certified
• ATX 3.1 and PCIe 5.1 ready
• Fully modular cable design
• 850 W continuous output
• Premium 105 °C Japanese capacitors
• Comprehensive safety protections including OVP, OCP, SCP, OTP, and UVP
• Active PFC for stable power
• Quiet 120 mm cooling fan
• Compact full-size ATX form factor
• Extensive connector support including ATX, EPS, PCIe, SATA, and Molex

Thermalright TR SP850 80+ Platinum PSU

Dimensions
The Thermalright TR‑SP850 power supply measures approximately 150 mm in length, 140 mm in width, and 85 mm in height. Its compact full-size ATX design fits standard mid-tower and full-tower cases, allowing for easy installation.

Power and efficiency
This PSU delivers a continuous output of 850 watts, suitable for high-performance gaming PCs and workstation systems. It is 80 PLUS Platinum certified, achieving very high energy efficiency—typically around 92% under normal load—which helps reduce heat and power waste.

Input specifications
The power supply supports an input voltage range of 100 to 240 volts AC, with an input current between 11 and 5.5 amps. It operates at mains frequencies from 47 to 63 Hz, making it compatible with power systems worldwide.

Cooling and operating conditions
The TR‑SP850 features a 120 mm cooling fan that balances quiet operation with effective heat dissipation. It is designed to run reliably in ambient temperatures from 0 to 40 degrees Celsius.

Reliability and protection
The unit uses high-quality internal components, including durable Japanese capacitors rated for 105°C, and has a mean time between failures (MTBF) of more than 100,000 hours. It also includes comprehensive electrical protections such as over-power, over-voltage, over-temperature, over-current, short-circuit, and under-voltage protection to safeguard the system.

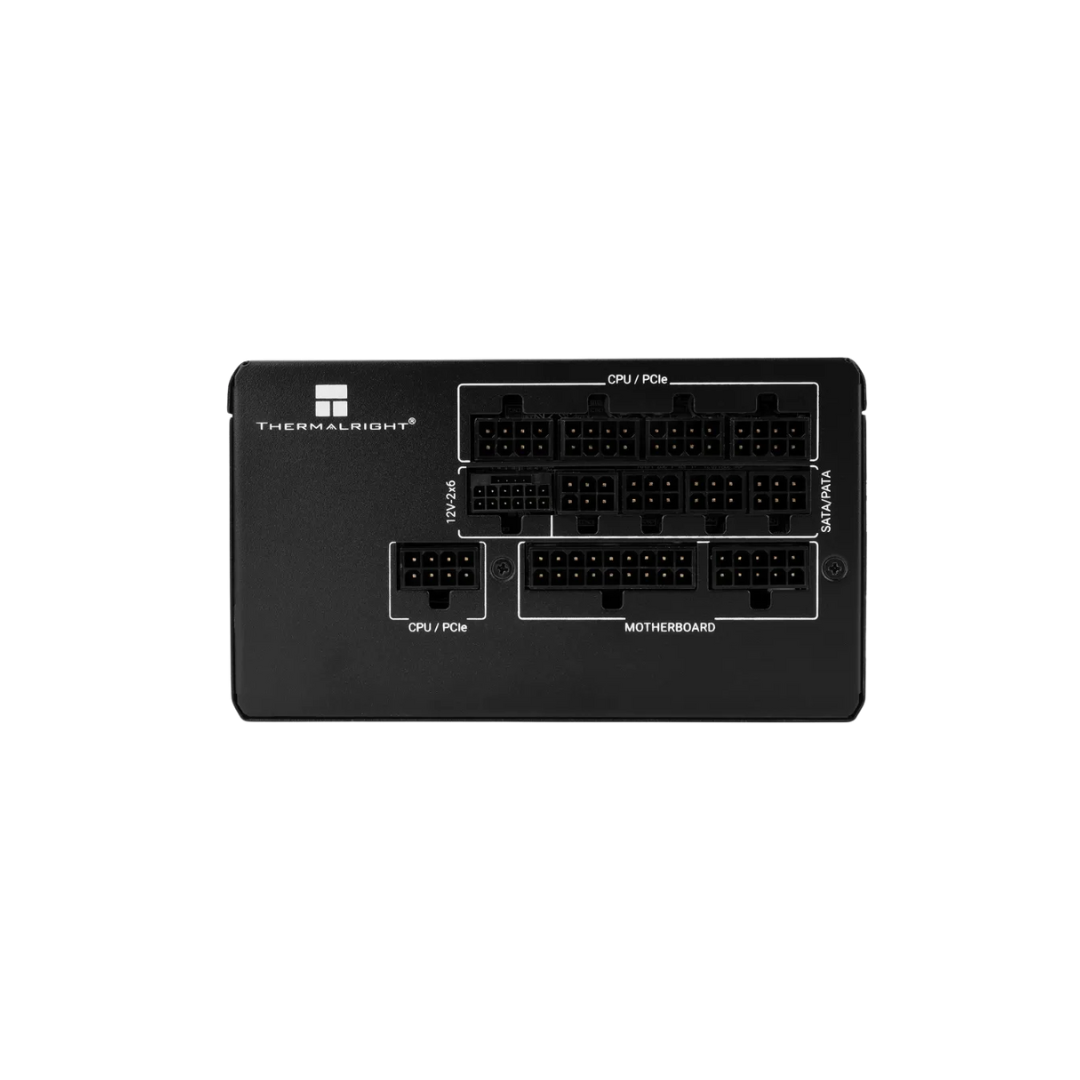

Standards and connectors
This PSU complies with the ATX 3.1 standard and supports PCIe Gen 5.1 power delivery through a native connector, ensuring compatibility with modern graphics cards and stable power delivery. It includes a wide range of connectors such as a 20+4 pin motherboard connector, dual 4+4 pin CPU connectors, one PCIe 5.1 connector, multiple PCIe 6+2 pin connectors, SATA power connectors, and Molex power connectors, providing flexibility for various components.
