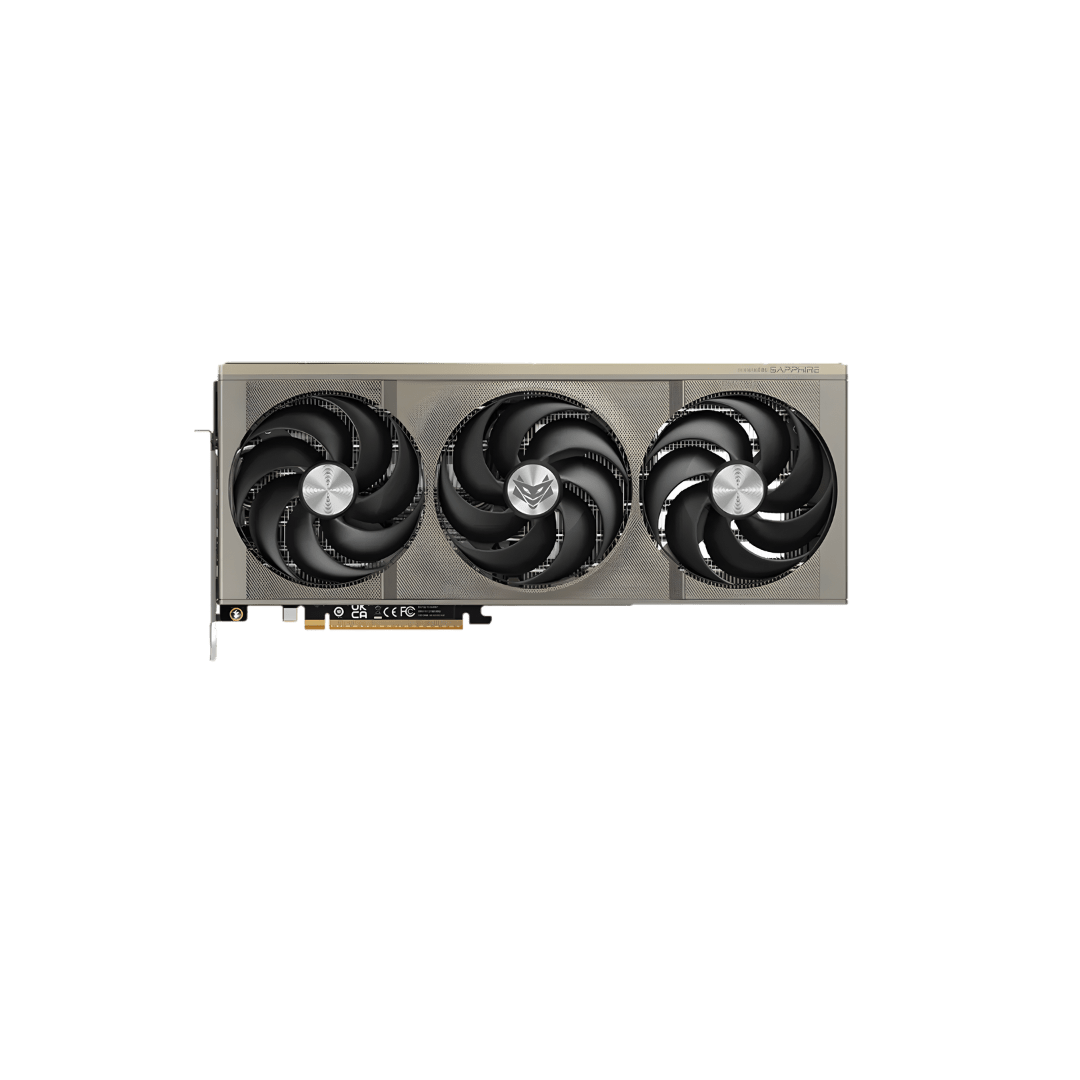

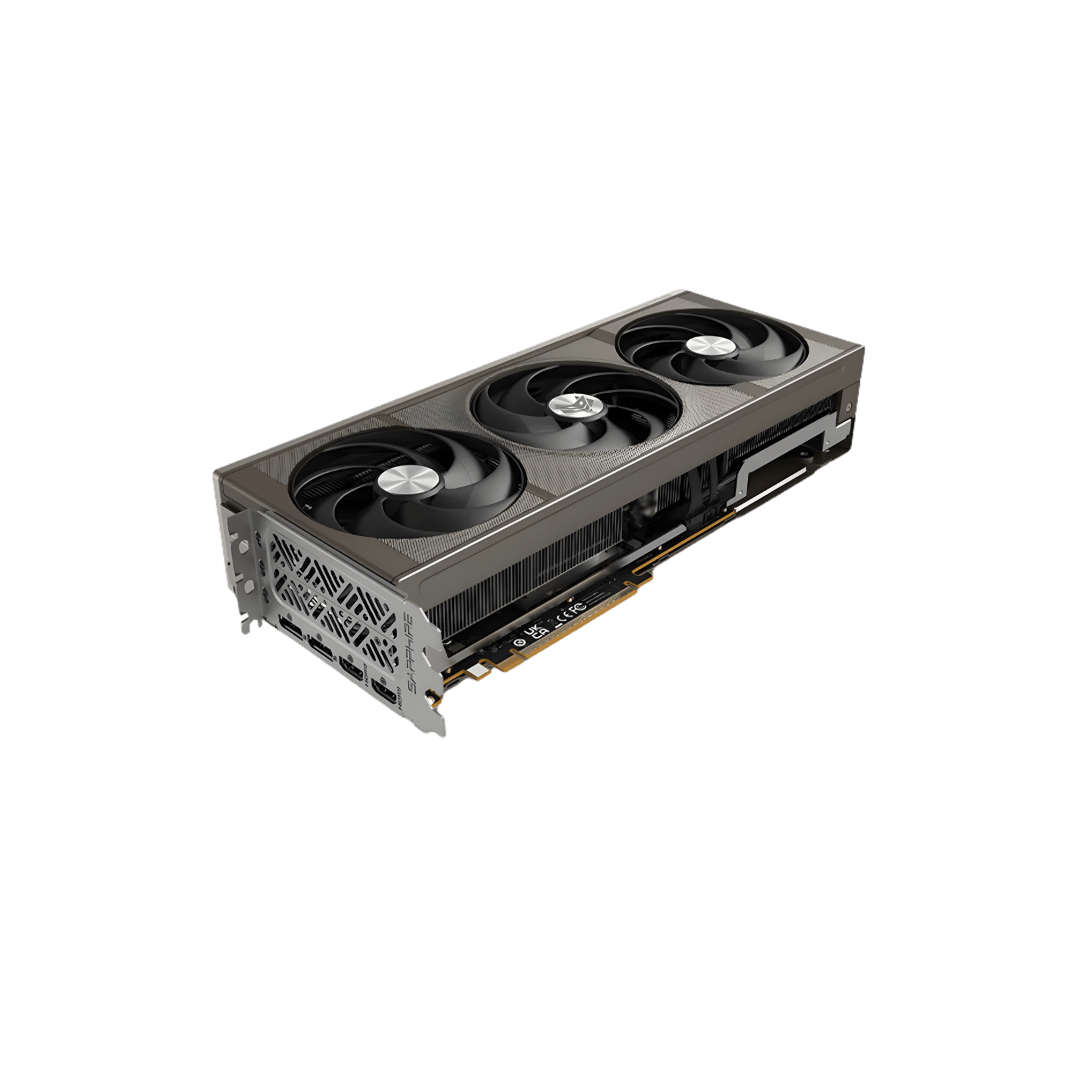

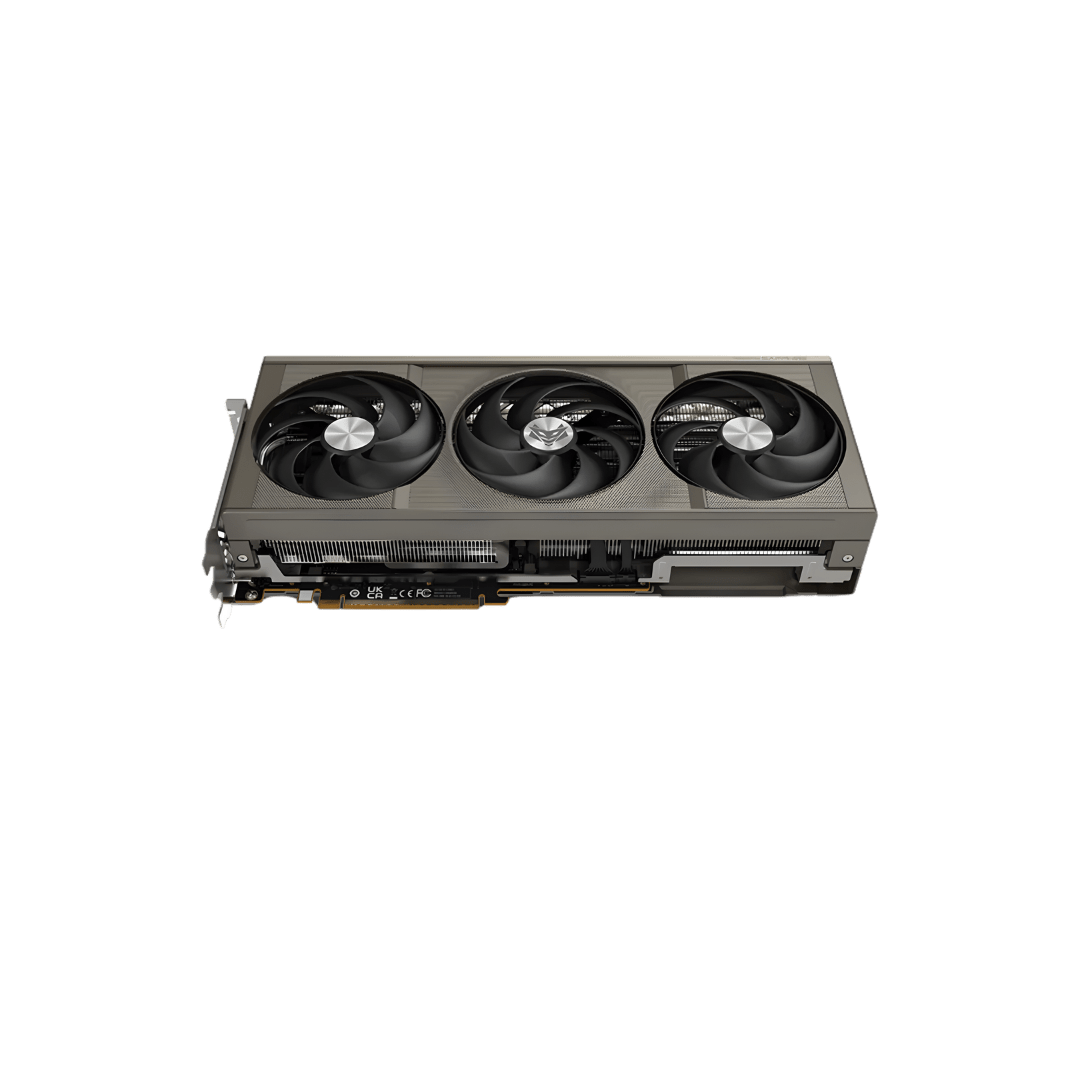

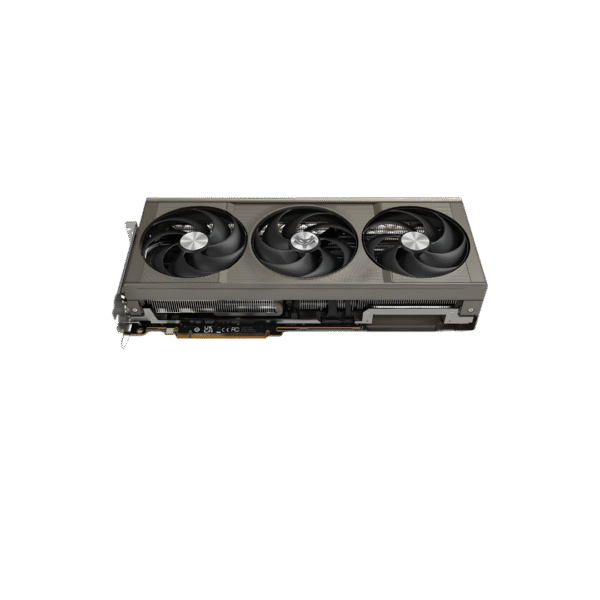

The SAPPHIRE NITRO+ AMD Radeon RX 9070 XT OC (16 GB) represents the pinnacle of cutting-edge graphics engineering and design. Powered by AMD’s RDNA 4 architecture and built on an advanced 4 nm process, this GPU delivers exceptional performance for gaming, content creation, and professional workloads. With 4096 stream processors, 64 compute units, and 64 ray accelerators, it provides incredible rendering power and next-generation ray tracing performance. The card operates with a Game Clock of up to 2520 MHz and a Boost Clock reaching up to 3060 MHz, ensuring fluid gameplay and responsiveness even in the most demanding scenarios. Equipped with 16 GB of high-speed GDDR6 memory on a 256-bit interface running at 20 Gbps, it offers massive bandwidth and efficient performance across all modern titles and creative applications.

Advanced Cooling Technology

The NITRO+ RX 9070 XT OC features SAPPHIRE’s renowned Tri-X Cooling System, designed to deliver maximum cooling efficiency and minimal noise. The system employs three AeroCurve fan blades that reduce air friction, increase static pressure, and optimize airflow through the heatsink assembly. The Free Flow cooling design complements this with a finely tuned heatsink fin module that minimizes turbulence and channels air more effectively, maximizing thermal dissipation during high-load operation.

Each composite heatpipe is carefully engineered to ensure optimal heat transfer and even distribution throughout the cooling module. The Integrated Cooling Module further enhances this by maintaining direct contact with the GPU, VRMs, and memory modules, providing balanced and consistent temperature control across all critical components.

Premium Thermal Materials

To achieve superior thermal transfer, SAPPHIRE integrates Honeywell PTM7950 thermal interface material (TIM) into the RX 9070 XT OC. This premium phase-change compound offers outstanding thermal conductivity, allowing rapid heat dissipation from the GPU die to the cooler. It enhances both reliability and longevity by maintaining lower operating temperatures even under sustained workloads, ensuring long-term stability and performance consistency.

Build Quality and Durability

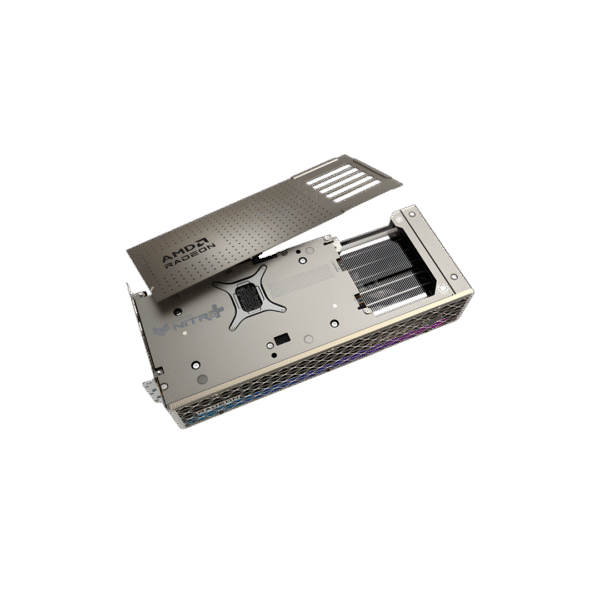

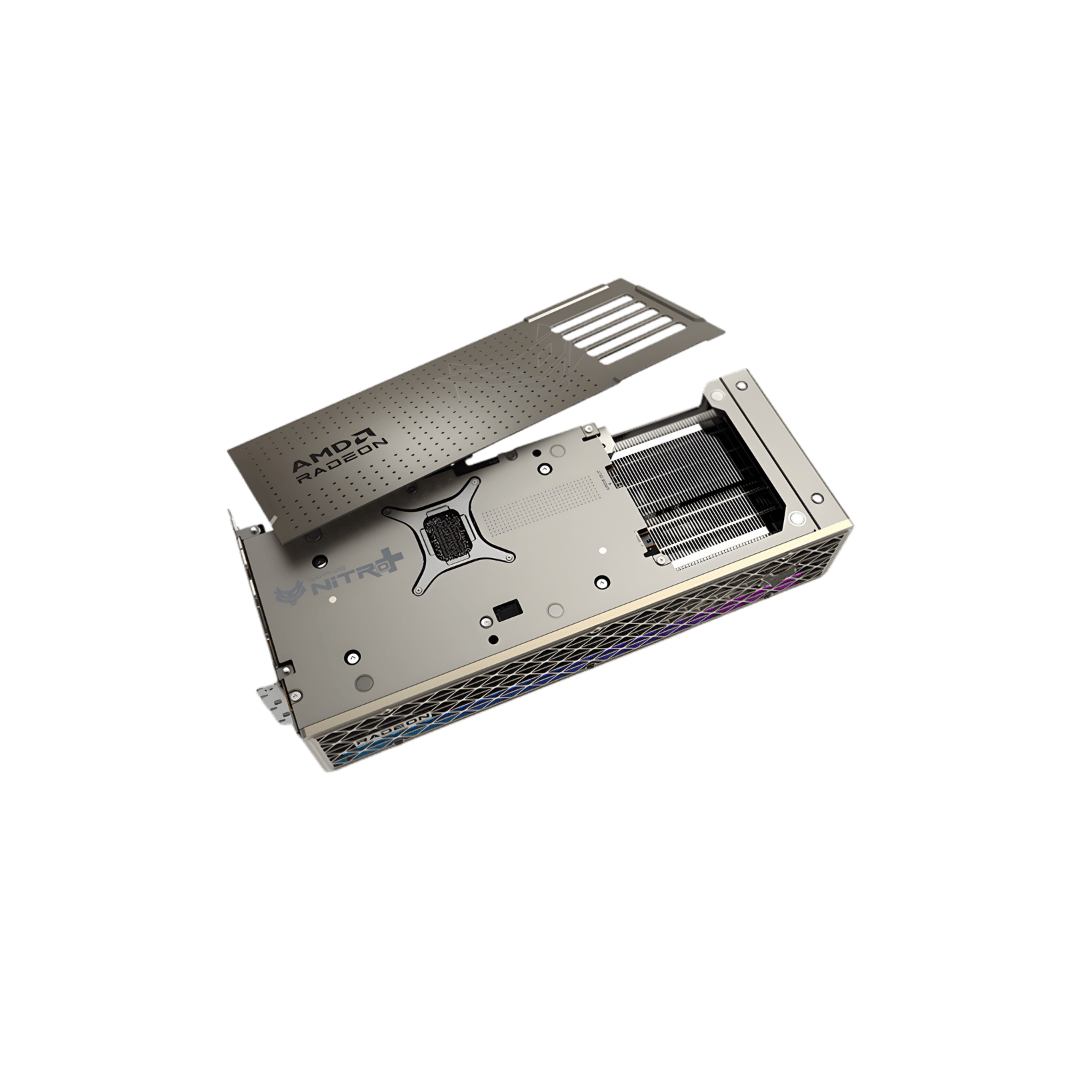

The NITRO+ RX 9070 XT OC is built with an emphasis on structural integrity and reliability. Its all-aluminum Tough Metal Backplate adds rigidity, prevents PCB bending, and assists in passive heat dissipation. The FrameDefense design incorporates a reinforced internal structure that protects the GPU, VRMs, and memory components from physical stress during handling or installation.

Dual ball-bearing fans provide an extended lifespan—up to 85% longer than sleeve-bearing designs—while operating up to 10% quieter than previous generations. The 12-layer High TG Copper PCB, constructed with 2 oz copper layers, supports high current flow, stable signal transmission, and consistent performance. Integrated fuse protection safeguards the power delivery circuit against potential electrical surges, further enhancing reliability.

Power and Structural Enhancements

Engineered with a fully digital power design, the RX 9070 XT OC delivers precise voltage control and improved power efficiency under load. The card draws approximately 330 watts of power through a 12V 2×6-pin connector and is best paired with a 750-watt power supply to ensure optimal stability.

To maintain physical balance and prevent sagging, SAPPHIRE includes an L-shaped graphics card supporter. This durable bracket secures the GPU inside the chassis and allows for easier installation or removal during system maintenance.

Design and Connectivity

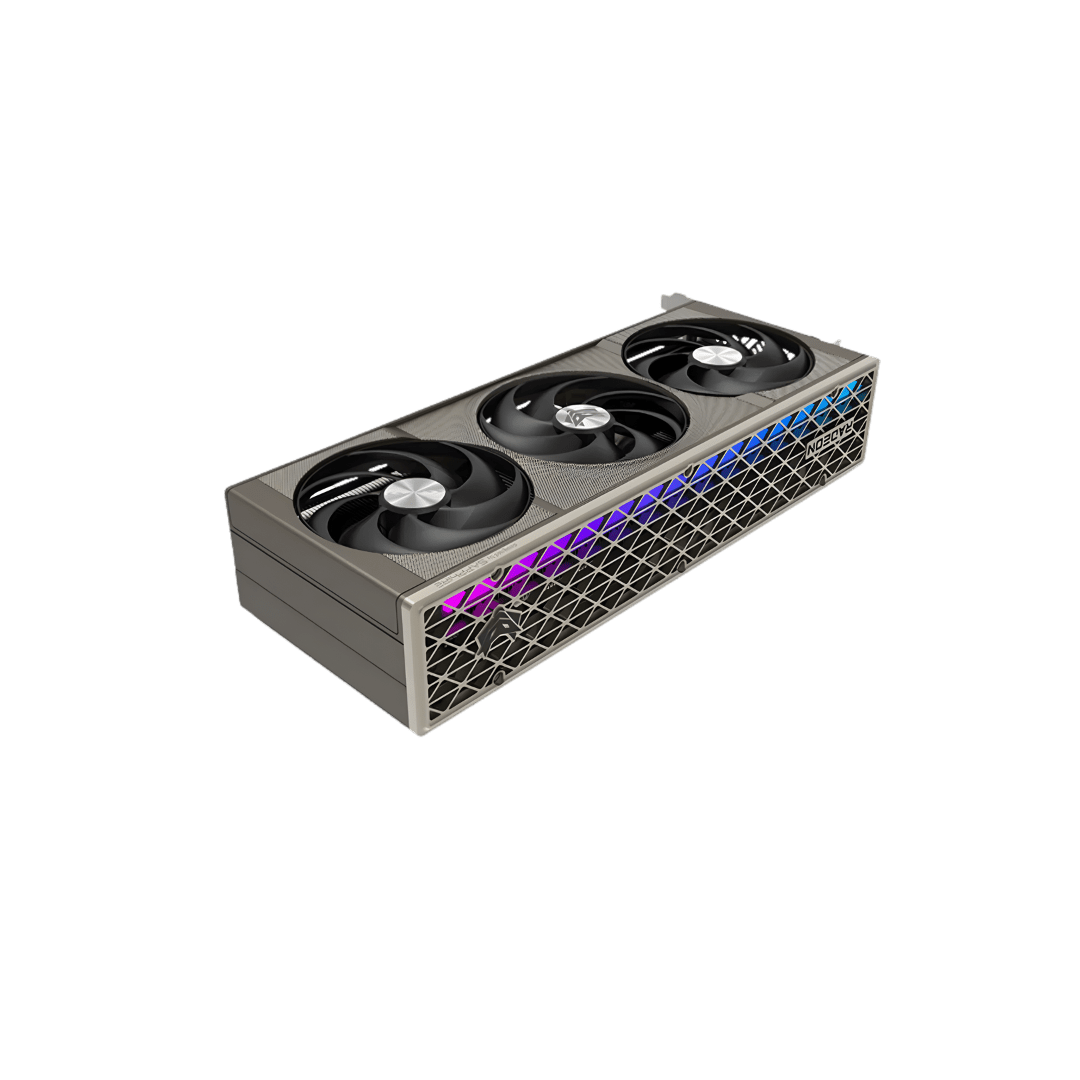

The SAPPHIRE NITRO+ RX 9070 XT OC combines functional design with a premium aesthetic. Its sleek black and silver finish, customizable RGB lighting, and stealth power connector contribute to a refined, modern look. The card utilizes the PCI Express 5.0 x16 interface, offering full compatibility with current and next-generation motherboards.

Connectivity options include two HDMI 2.1a and two DisplayPort 2.1a outputs, supporting up to four simultaneous displays and resolutions up to 8K (7680 × 4320). Measuring 330.8 mm in length, 128.5 mm in width, and 65.7 mm in height, the card occupies 3.2 slots and fits seamlessly into high-end gaming or workstation builds.

Conclusion

The SAPPHIRE NITRO+ AMD Radeon RX 9070 XT OC (16 GB) delivers a perfect balance of power, efficiency, and craftsmanship. With advanced RDNA 4 architecture, high-speed GDDR6 memory, and a host of thermal innovations, it stands as one of the most capable GPUs in its class. Its Tri-X cooling system, Honeywell PTM7950 TIM, and durable construction ensure consistent performance and quiet operation. Designed for gamers, creators, and performance enthusiasts, the NITRO+ RX 9070 XT OC offers unmatched reliability, cooling precision, and raw graphical power—setting a new benchmark for premium graphics cards.
