Description
MSI Pro B760M-E DDR4 Intel 12/13th Gen microATX Motherboard – Supports DDR4 Memory – Support Intel® Coreâ„¢ 14th/ 13th/ 12th Gen Processors.
About this item
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

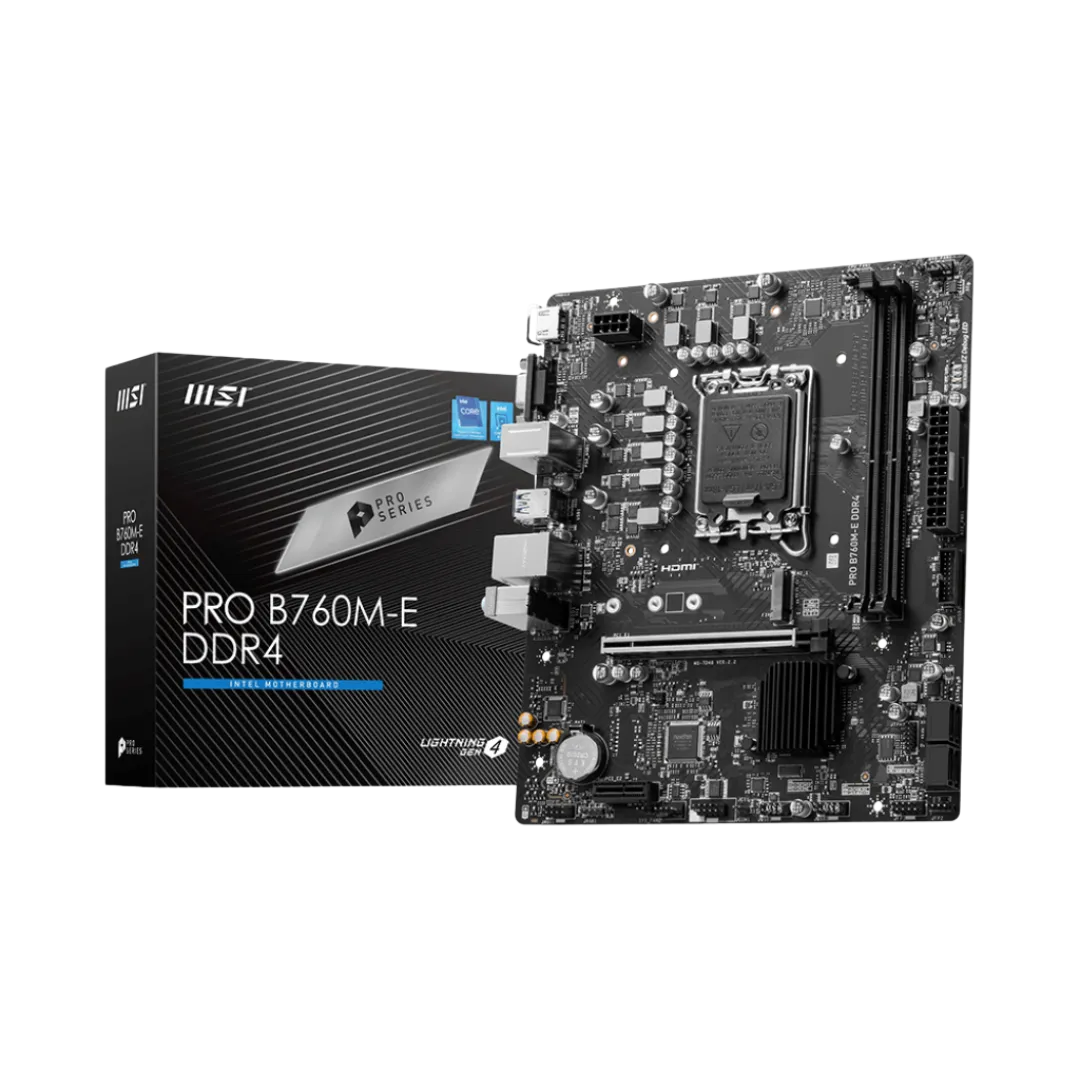

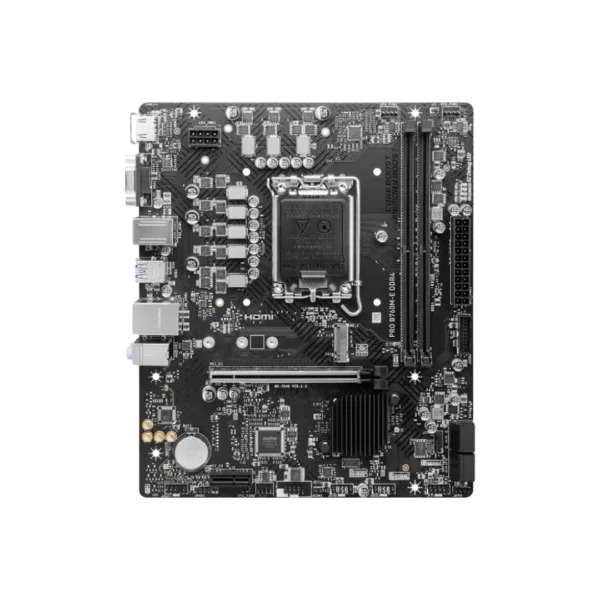

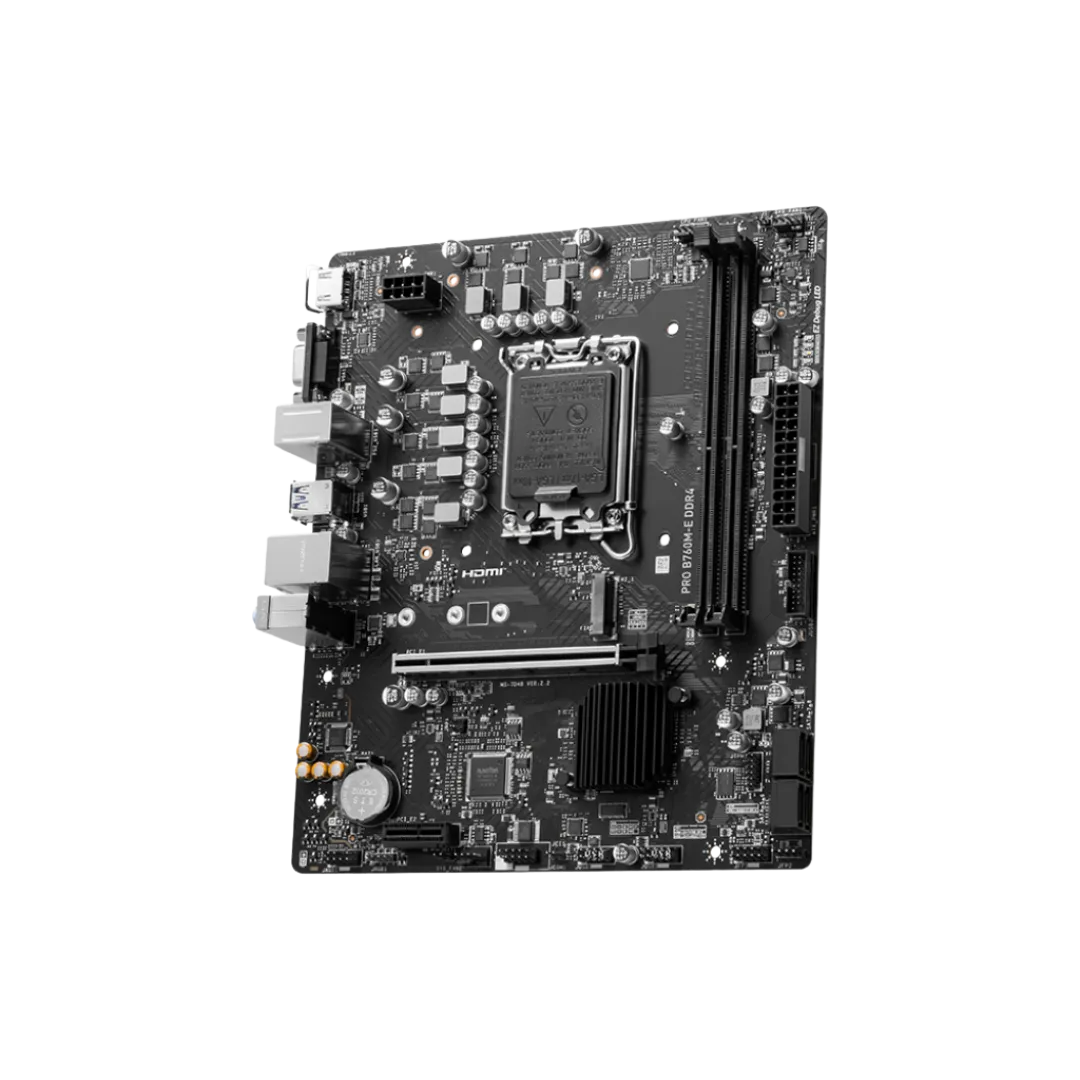

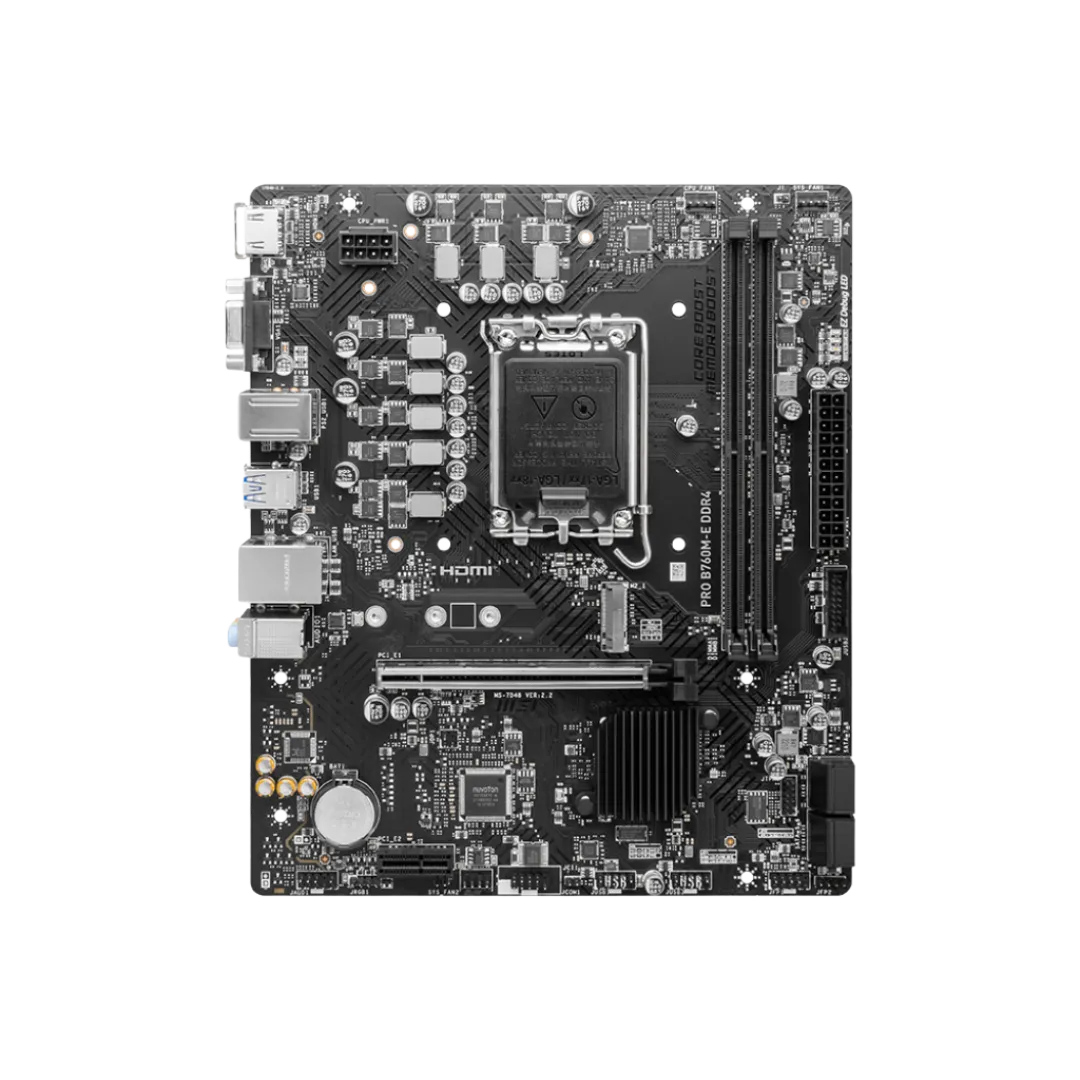

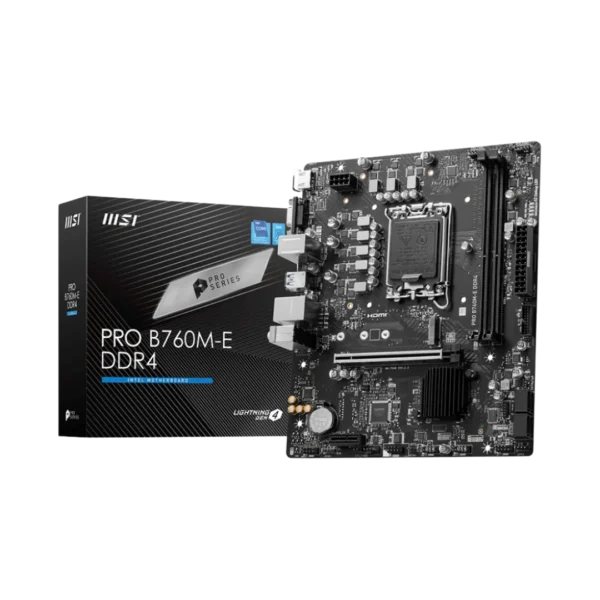

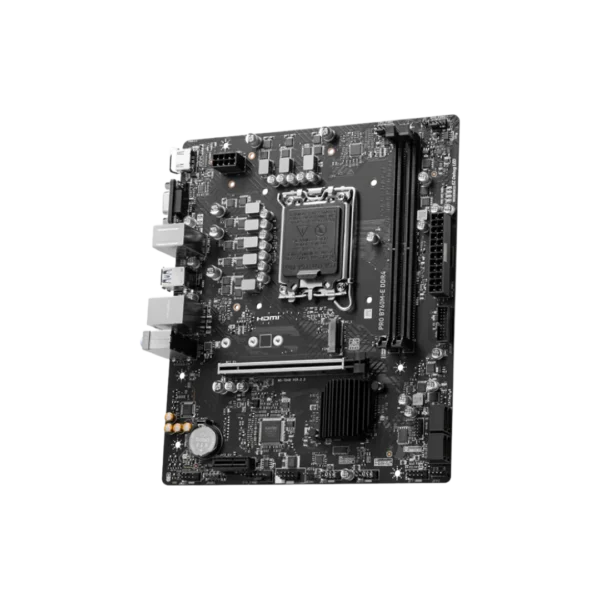

MSI PRO B760M-E DDR4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Specification
Chipset | INTEL B760 |
---|---|
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode |
Onboard Graphics | 1x HDMIâ„¢ Support HDMIâ„¢ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
LAN | Realtek® RTL8111H Gigabit LAN |
Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 1x USB 5Gbps Type A ports |
LED FEATURE | 4x EZ Debug LED |

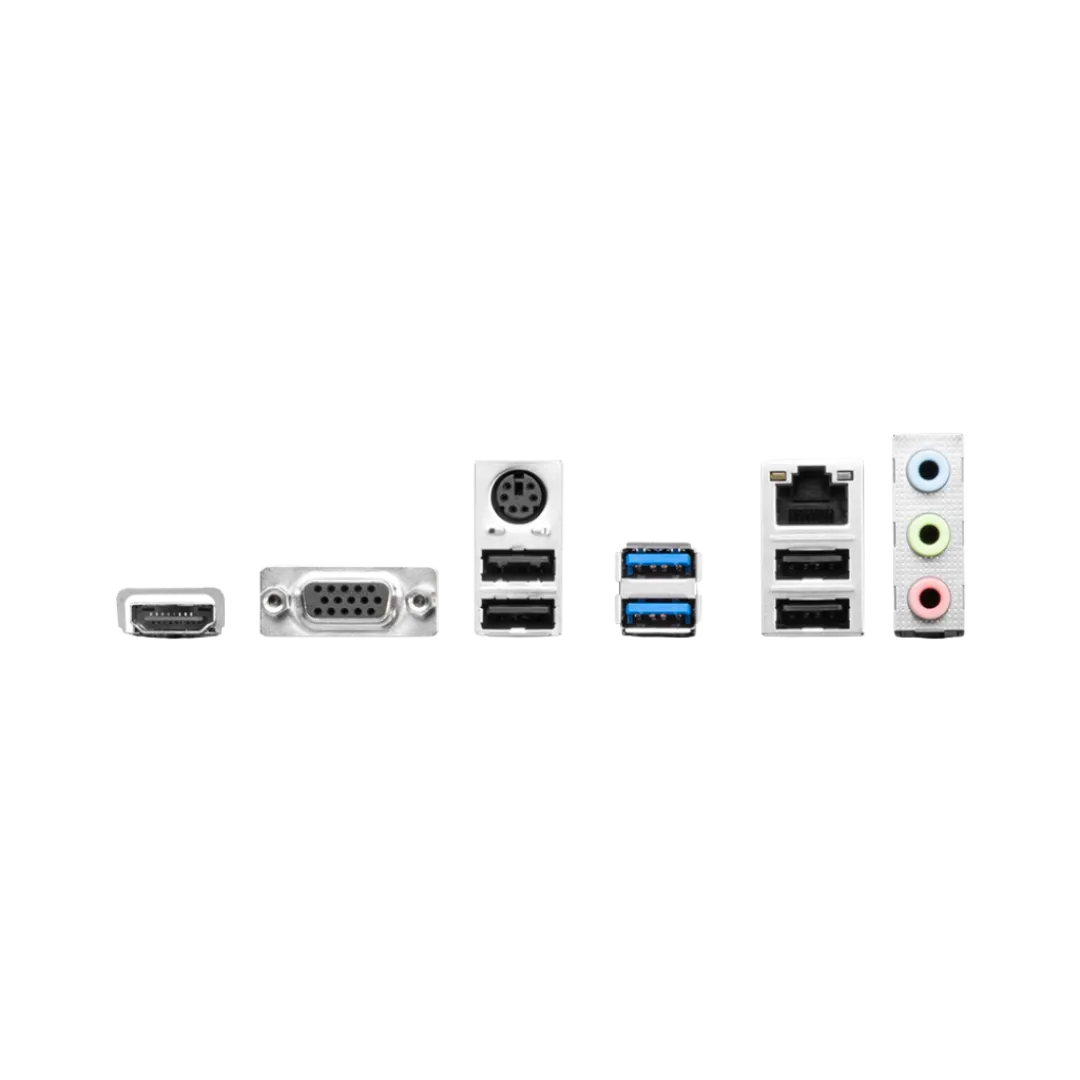

BACK PANEL PORTS | ![]()
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
For further details, visit official website.
