About this item
- Supports AMD Ryzen 9000 Series
- 4x DIMMs, DDR5 8400+ MT/s (OC)
- 18+2+1 Duet Rail Power System
- Frozr Guard Extended Heatsink
- Dual PCIe 5.0 x16, Dual Gen5 M.2
Avail Free delivery on Bank Transfer
Description
MSI MPG X870E CARBON WIFI Gaming Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 5.0, Dual M.2 Gen5, SATA 6Gb/s, USB 40Gbps, HDMI/DP, Wi-Fi 7, Bluetooth 5.4, 5Gb/2.5Gb LAN, ATX)
Key Features
- Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Extreme Power Design: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer server-grade PCB with 2oz thickened copper for maximum stability and overclocking
- Frozr Guard: Extended Heatsink, 7W/mK MOSFET thermal pads, choke thermal pads, M.2 Shield Frozr II – built for high-performance systems and nonstop operation
- EZ DIY Features: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, Smart Button, EZ Antenna
- Lightning Fast Game Experience: Dual PCIe 5.0 x16 slots, Dual Lightning Gen 5 x4 M.2 slots for next-gen SSDs
- Ultra Connectivity: USB4 40Gbps, USB-C front and rear, 5G LAN + 2.5G LAN, Wi-Fi 7 & Bluetooth 5.4 – latest solutions for ultra-fast, stable networking and data transfer
- Audio Boost 5: Premium audio with high-resolution codec and isolated audio design for immersive studio-grade sound
MSI MPG X870E CARBON WIFI
MPG X870E CARBON WIFI is crafted for gamers and performance enthusiasts who demand cutting-edge technology and premium build quality. Equipped with next-gen PCIe 5.0 slots, dual Gen5 M.2 support, true Wi-Fi 7 solution, USB4 40Gbps, dual LAN (5G + 2.5G), and powerful 18+2+1 Duet Rail Power System, it’s engineered to unleash the full potential of AMD Ryzenâ„¢ 9000 series processors and beyond.
Unleash Limitless Power
The MPG X870E CARBON WIFI is a performance-driven ATX motherboard based on the high-end AMD X870E chipset. It supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors and is packed with enthusiast-grade features including ultra-fast DDR5 memory support, PCIe 5.0 expansion, USB4 connectivity, and an advanced power delivery system to handle demanding workloads and high-end GPUs with ease.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5)
- Extreme Power: 18+2+1 Duet Rail Power System with 90A SPS, 8-layer Server-Grade PCB with 2oz Copper for enhanced durability and stability
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8400MT/s OC)
- 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
- Dual Lightning Gen5 & Dual Gen4 M.2 slots with M.2 Shield Frozr II
- Ultra Connect: USB4 Type-C (40Gbps), Realtek 5G LAN + 2.5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
- 8-Channel (7.1) USB High-Performance Audio with Audio Boost 5
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release, EZ Antenna, Smart Button
SpecificationÂ
| Category | Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Form Factor | ATX |
| Power Design | 18+2+1 Duet Rail Power System with 90A SPS, dual 8-pin CPU connectors, server-grade 8-layer PCB with 2oz copper |
| Memory | 4× DDR5 UDIMM slots, up to 256 GB |
| Memory Speed Support | DDR5 8400 – 5600 (OC) MT/s / DDR5 5600 – 4800 (JEDEC) MT/s |
| Memory OC Performance | Ryzen™ 9000 Series: • 1DPC 1R → up to 8400+ MT/s • 1DPC 2R → up to 6400+ MT/s • 2DPC 1R → up to 6400+ MT/s • 2DPC 2R → up to 4800+ MT/s |
| Memory Features | Dual-channel, Non-ECC, Un-buffered, AMD EXPOâ„¢, CUDIMM (Clock Driver bypass mode) |
| Display Outputs | 1× HDMI™ 2.1 FRL (max 8K @ 60Hz)* 2× USB4 Type-C DisplayPort 1.4 (max 4K @ 60Hz)* *Available only with CPUs featuring integrated graphics |
| PCIe Slots | 3× PCI-E x16: • PCI_E1 → PCIe 5.0 x16 (CPU) • PCI_E2 → PCIe 5.0 x4 (CPU) • PCI_E3 → PCIe 4.0 x4 (Chipset)* *PCI_E3 runs x2 when M2_3 is populated; switchable to x4 by disabling M2_3 |
| M.2 Storage | 4× M.2 slots: • M.2_1 → PCIe 5.0 x4 (CPU) – 22110/2280 • M.2_2 → PCIe 5.0 x4 (CPU) – 2280/2260 • M.2_3 → PCIe 4.0 x4 (Chipset) – 2280/2260 • M.2_4 → PCIe 4.0 x4 (Chipset) – 2280/2260 |
| SATA Storage | 4× SATA III (6Gb/s) ports |
| Storage Notes | • M2_2 slot is disabled with Ryzen™ 8500 / 8300 CPUs • USB4 ports and M2_2 share PCIe 5.0 x4 bandwidth • PCI_E3 and M2_3 share lanes (see BIOS options) |
| RAID Support | RAID 0, 1, 10 for SATA RAID 0, 1, 5, 10 for M.2 NVMe (RAID 5 for Ryzen 9000 only) |
| Multi-GPU | AMD CrossFire / Multi-GPU support |
| USB Ports (Rear) | • 2× USB 40Gbps Type-C • 1× USB 10Gbps Type-C • 2× USB 10Gbps Type-A • 3× USB 5Gbps Type-A • 4× USB 2.0 |
| USB Ports (Front) | • 1× USB 20Gbps Type-C • 4× USB 5Gbps Type-A • 4× USB 2.0 |
| LAN | 1× Realtek® 8126-CG 5G LAN 1× Realtek® 8125BG 2.5G LAN |
| Wireless | Wi-Fi 7 (802.11be) Tri-band 2.4/5/6GHz, 320MHz bandwidth MU-MIMO, Bluetooth® 5.4 *Wi-Fi 7 and Bluetooth 5.4 ready in Windows 11 24H2 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High-Performance Audio Supports 32-bit / 384kHz playback (front panel) Supports S/PDIF out |
| Internal I/O Headers | • 1× 24-pin ATX_PWR • 2× 8-pin CPU_PWR • 1× PCIe_PWR (8-pin) • 1× CPU Fan, 1× Pump Fan, 6× System Fan • 2× JFP (Front Panel) • 1× Chassis Intrusion • 1× Front Audio (JAUD) • 3× Addressable RGB (JARGB_V2) • 1× RGB Header (JRGB) • 1× TPM Header • 4× USB 2.0 • 4× USB 5Gbps • 1× USB 20Gbps Type-C |

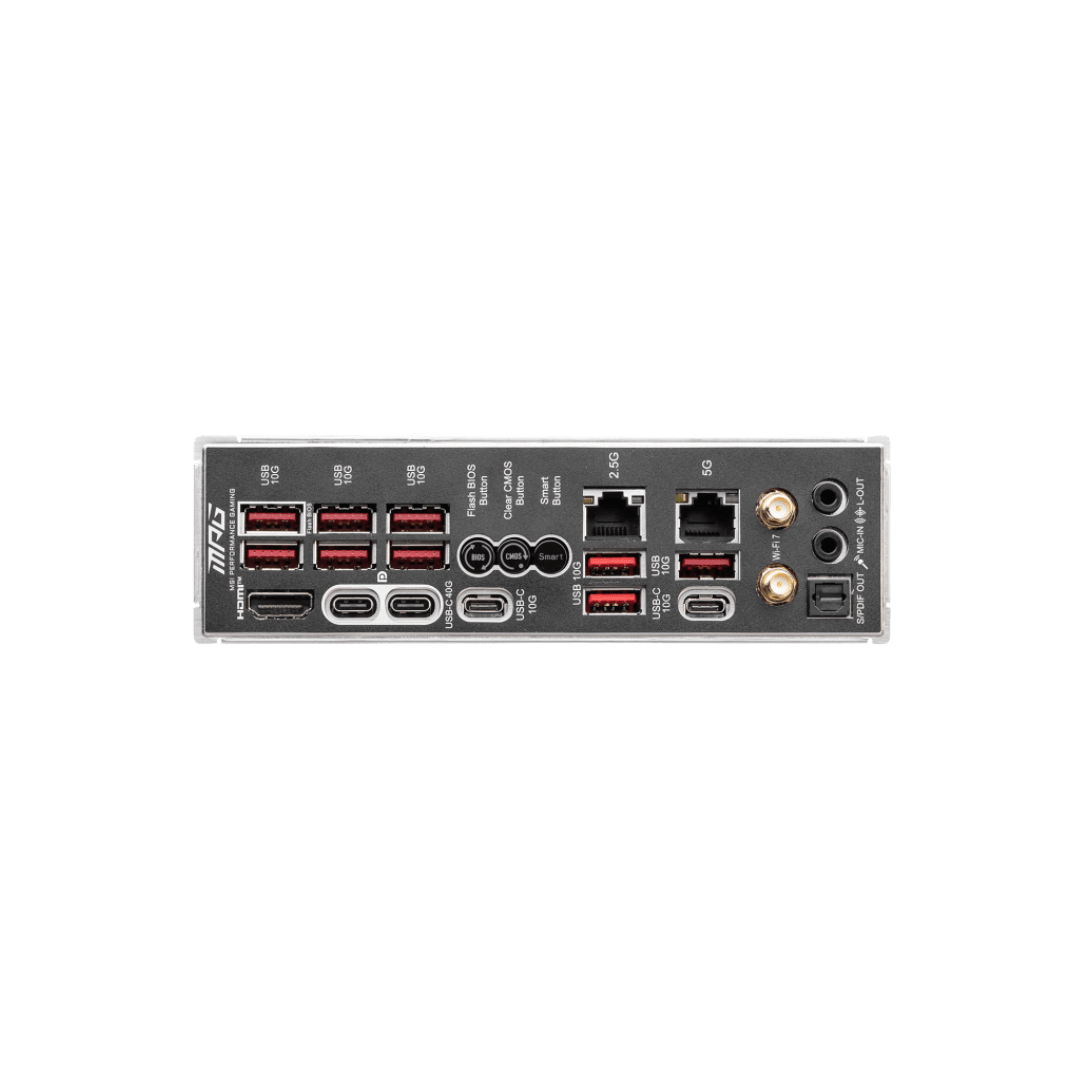

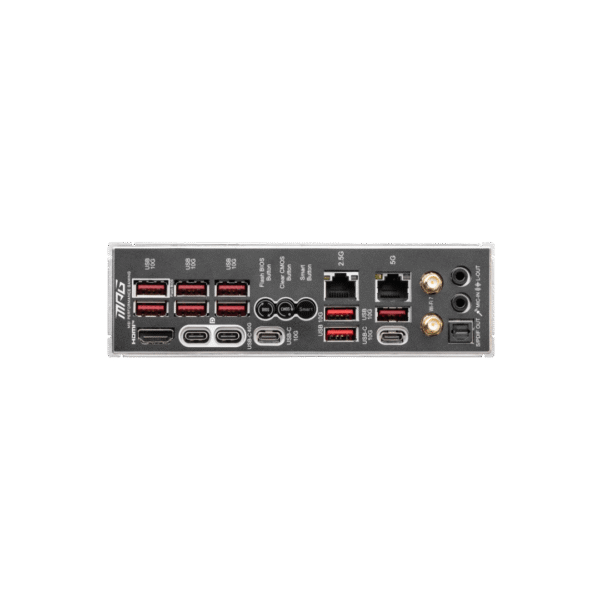

| Back Panel Ports | • Clear CMOS Button • Flash BIOS Button • HDMI™ • 2× USB 40Gbps Type-C • USB 10Gbps Type-C • USB 10Gbps Type-A • USB 5Gbps Type-A • USB 2.0 • 5G LAN + 2.5G LAN • Audio Jacks • Wi-Fi / Bluetooth Antenna Ports |
| Debug & Diagnostic | • 4× EZ Debug LED • 1× EZ Digit Debug LED |
| OS Support | Windows® 11 64-bit |
For further details, visit official website.
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 1-Year |
