Buy MSI B850 GAMING PLUS WIFI6E Motherboard in Pakistan | TechMatched
₨69,000.00
Buy MSI B850 GAMING PLUS WIFI6E Motherboard in Pakistan | TechMatched
About this item
- Supports Ryzen AM5
- DDR5 up to 8200+
- PCIe 5.0 M.2
- PCIe 4.0 slots
- Dual 8-pin power
Avail Free delivery on Bank Transfer
Description
MSI B850 GAMING PLUS WIFI 6E ATX Motherboard for AMD Ryzen 9000/8000/7000 Series with DDR5, PCIe 5.0, Wi-Fi 6E, and 2.5G LAN
Key Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution – The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

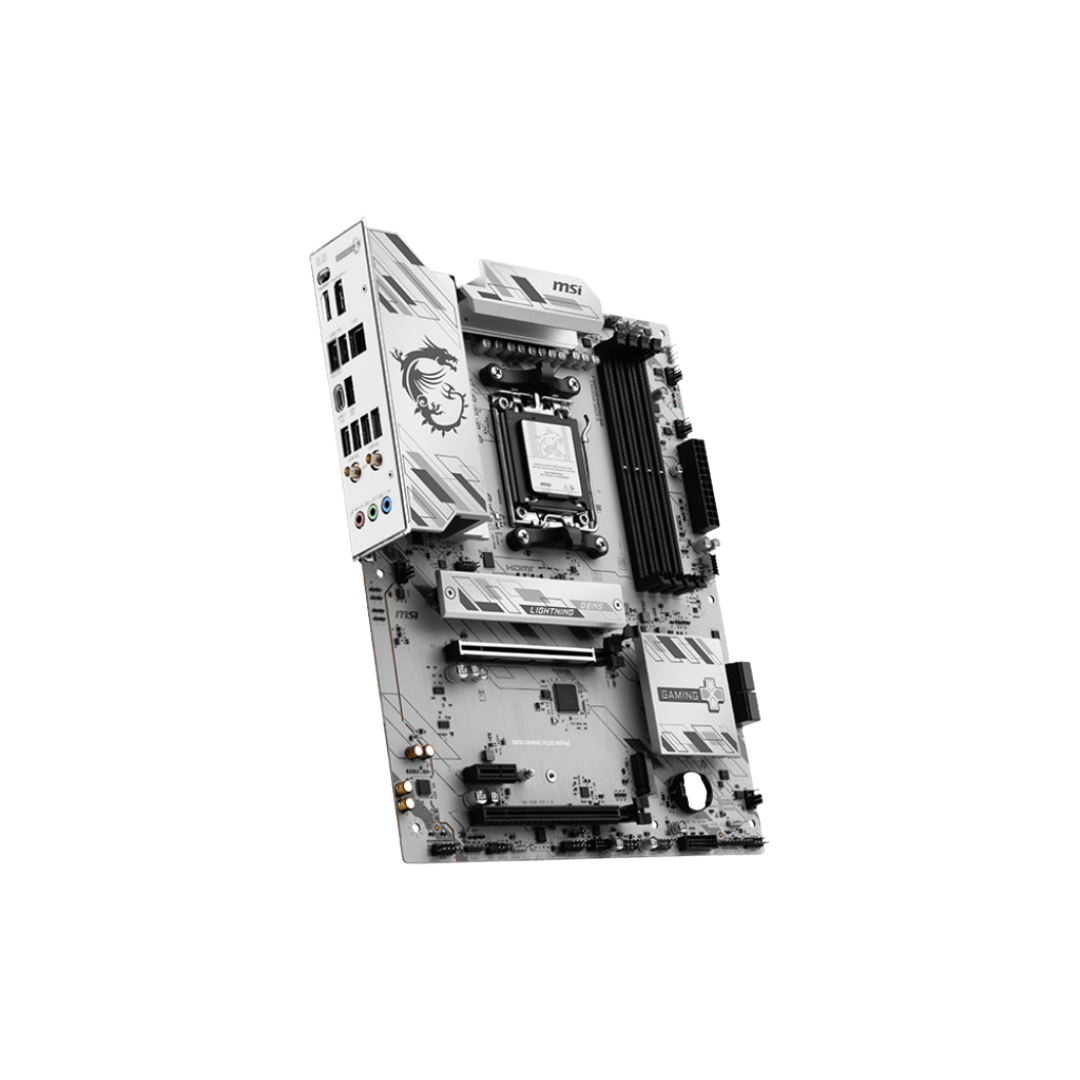

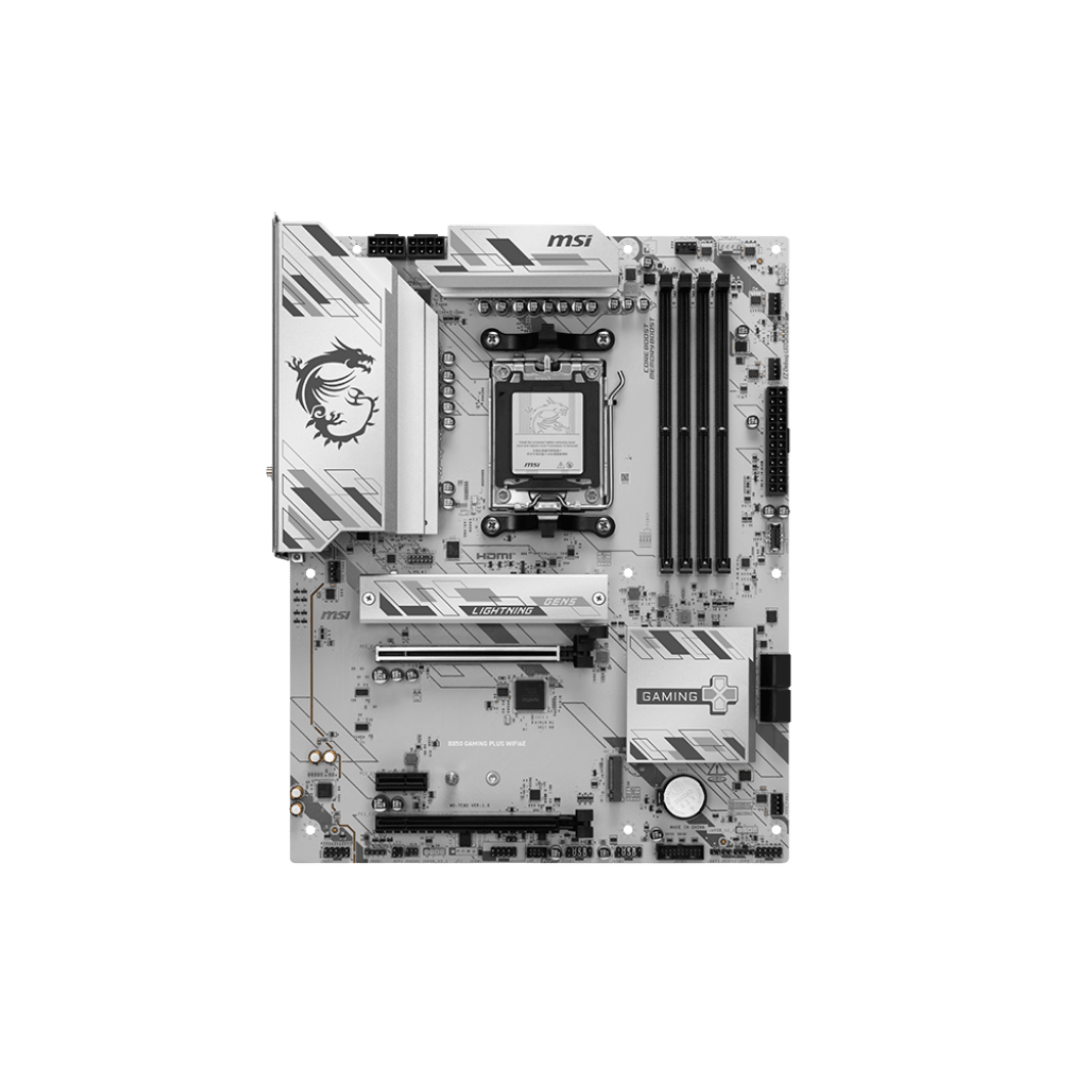

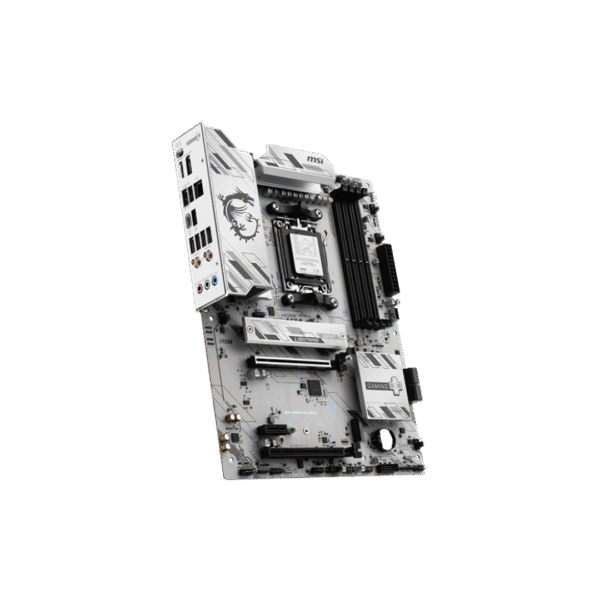

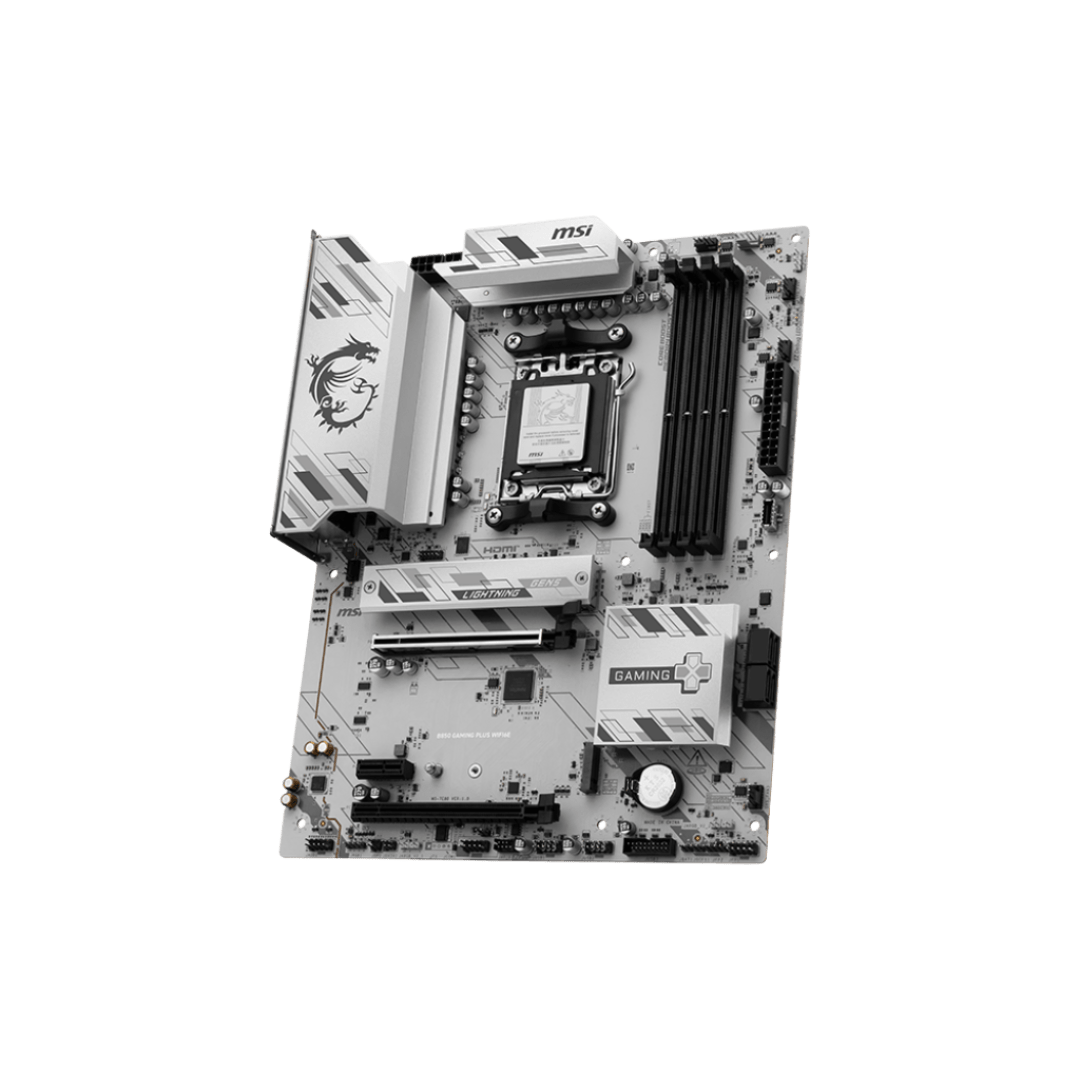

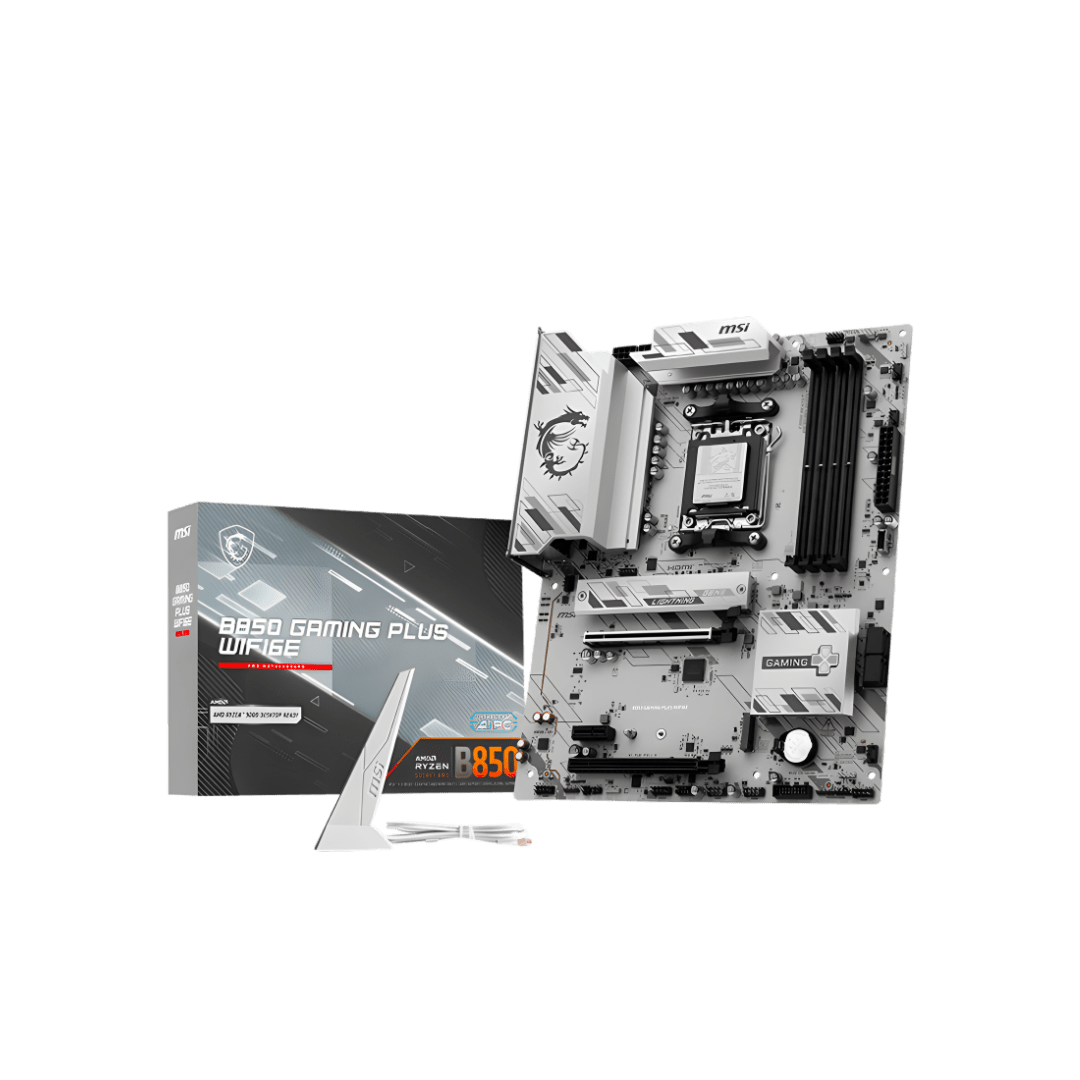

MSI B850 GAMING PLUS WIFI6E
The MSI B850 GAMING PLUS WIFI 6E is an ATX motherboard built for modern AMD gaming and productivity systems. It uses the AMD B850 chipset with the AM5 socket and supports Ryzen 9000, 8000, and 7000 Series processors. It offers strong performance, reliable connectivity, and long-term upgrade flexibility, making it ideal for high-performance PC builds.
Processor and Chipset Support
This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. The AM5 socket provides access to the latest platform features, including DDR5 memory and PCIe Gen5 storage support.
Memory Performance
The board includes four DDR5 UDIMM slots with a maximum memory capacity of 256 GB. It supports high-speed DDR5 memory up to 8200+ MT/s through overclocking, along with AMD EXPO memory profiles for easy and stable tuning.
Graphics and Display Outputs
HDMI 2.1 and DisplayPort 1.4 outputs are available for processors that include integrated graphics. Both ports support up to 4K resolution at 60 Hz, providing clear and smooth display output when using APUs.
Expansion Slots
The motherboard features one PCIe 4.0 x16 slot for a graphics card, one PCIe 4.0 x4 slot, and one PCIe 3.0 x1 slot. This setup supports additional expansion devices such as capture cards, sound cards, and other PCIe peripherals.
Storage Capabilities
The motherboard includes two M.2 slots: one running PCIe 5.0 x4 for next-generation NVMe SSDs, and one running PCIe 4.0 x4 for high-speed storage. It also offers four SATA 6 Gb/s ports for SSDs and HDDs, making it suitable for both speed and capacity needs.
Networking and Wireless Connectivity
For networking, the board provides a Realtek 2.5G LAN port for fast wired connections. It also includes Wi-Fi 6E, offering improved wireless performance through access to the 6 GHz band. Bluetooth 5.3 support is included for wireless peripherals and accessories.
USB and I/O Connectivity

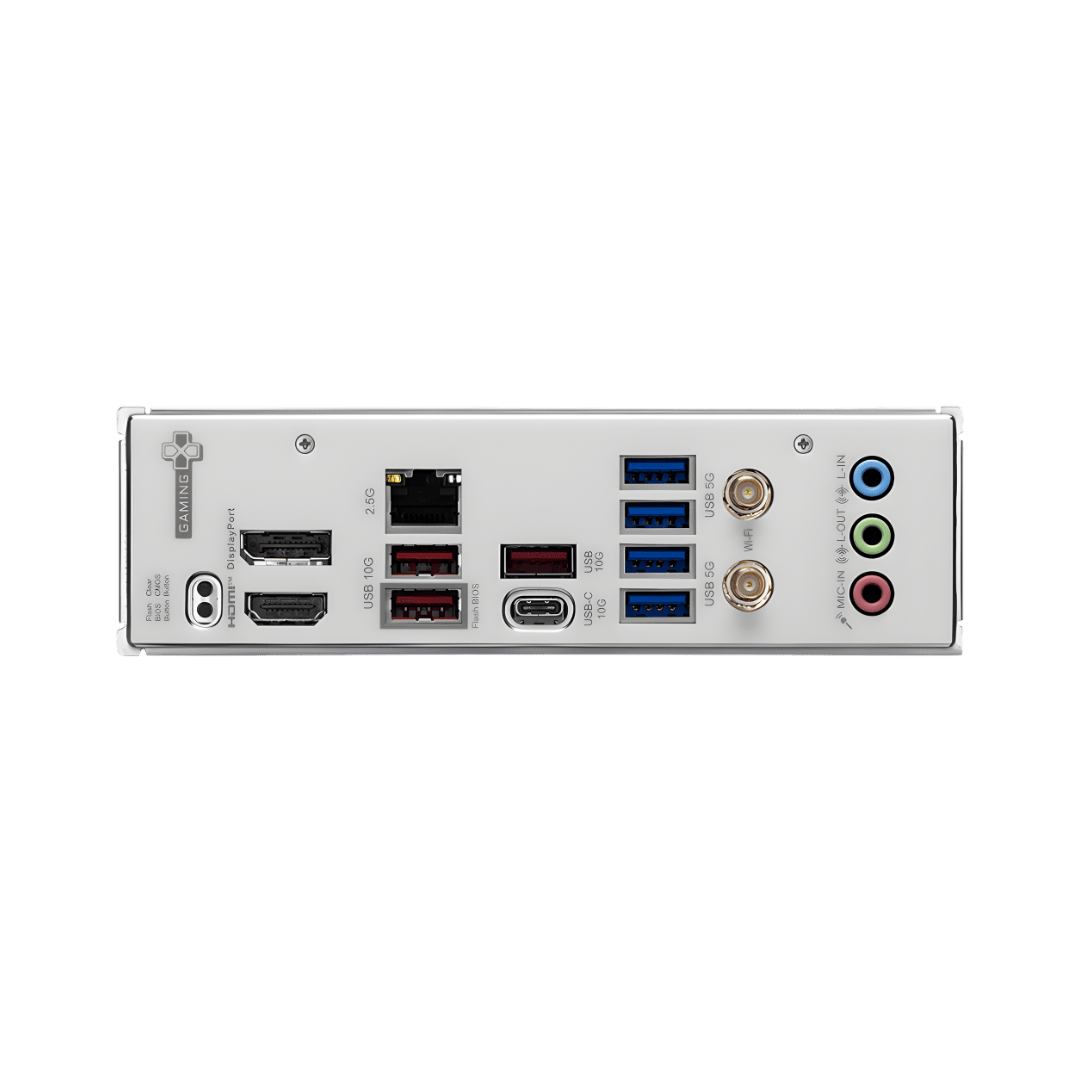

The rear I/O provides five USB 10 Gbps ports, six USB 5 Gbps ports, and four USB 2.0 ports. Internal headers support additional front-panel connections, including USB 2.0, USB 5 Gbps, and USB 10 Gbps Type-C.
Audio System
The Realtek ALC897 codec powers the audio system, providing 7.1-channel high-definition audio for gaming, movies, and general use.
Cooling and Internal Headers
The motherboard includes CPU fan headers, pump headers, and several system fan headers to support air or liquid cooling systems. RGB and ARGB headers allow lighting customization, and a TPM header provides hardware security support.
Form Factor and Build Features
The board uses the ATX form factor, measuring 305 mm by 244 mm. It also includes convenient features such as debug LEDs and reinforced slots to improve installation, durability, and troubleshooting.
Specification
| Category | Specification |
|---|---|
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4 × DDR5 UDIMM, up to 256 GB |
| Memory Speed | Up to 8200+ MT/s (OC), EXPO supported |
| Integrated Graphics (CPU-dependent) | HDMI 2.1 (4K@60), DisplayPort 1.4 (4K@60) |
| Expansion Slots | • 1 × PCIe 4.0 ×16 • 1 × PCIe 4.0 ×4 • 1 × PCIe 3.0 ×1 |
| Storage | • 1 × M.2 PCIe 5.0 ×4 • 1 × M.2 PCIe 4.0 ×4 • 4 × SATA 6 Gb/s |
| RAID Support | SATA: RAID 0 / 1 / 10 NVMe: RAID 0 / 1 |
| USB (Rear) | • 5 × USB 10 Gbps (Type-A & Type-C) • 6 × USB 5 Gbps • 4 × USB 2.0 |
| USB (Internal Headers) | USB 2.0, USB 5 Gbps, USB 10 Gbps Type-C headers |
| LAN | Realtek 2.5G LAN |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| Form Factor | ATX (305 mm × 244 mm) |
| Internal Headers / Other | 24-pin ATX, dual CPU power, multiple fan headers, RGB/ARGB headers, TPM header |
For further details, visit official website.
“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 1-Year |
