About this item
- MSI B840 GAMING PLUS WIFI
- Supports DDR5 Memory
- AMD B840 Chipset
- Frozr Guard
10 Months Warranty
Avail Free delivery on Bank Transfer
Description
MSI B840 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard, Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors, WiFi 7
About this item
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

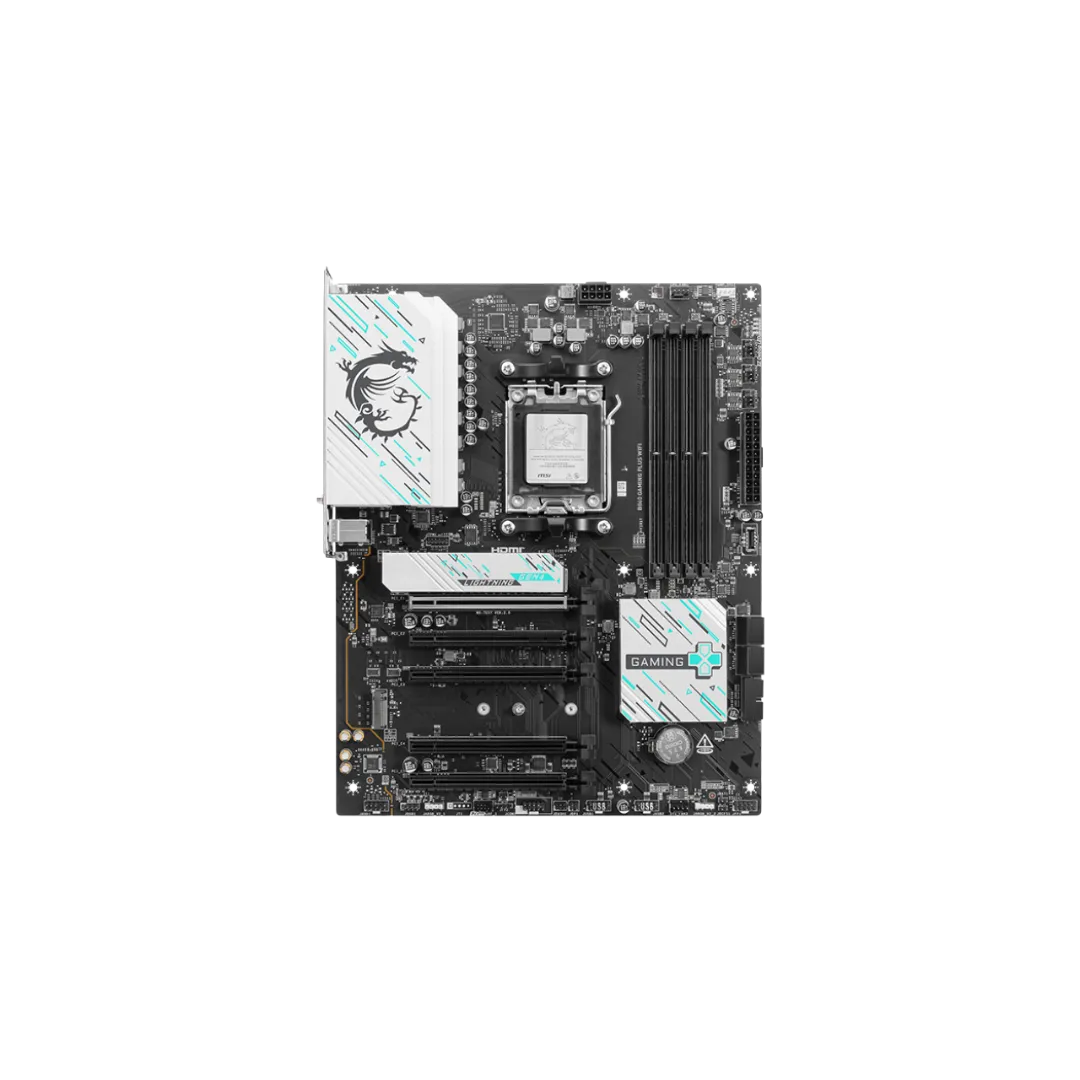

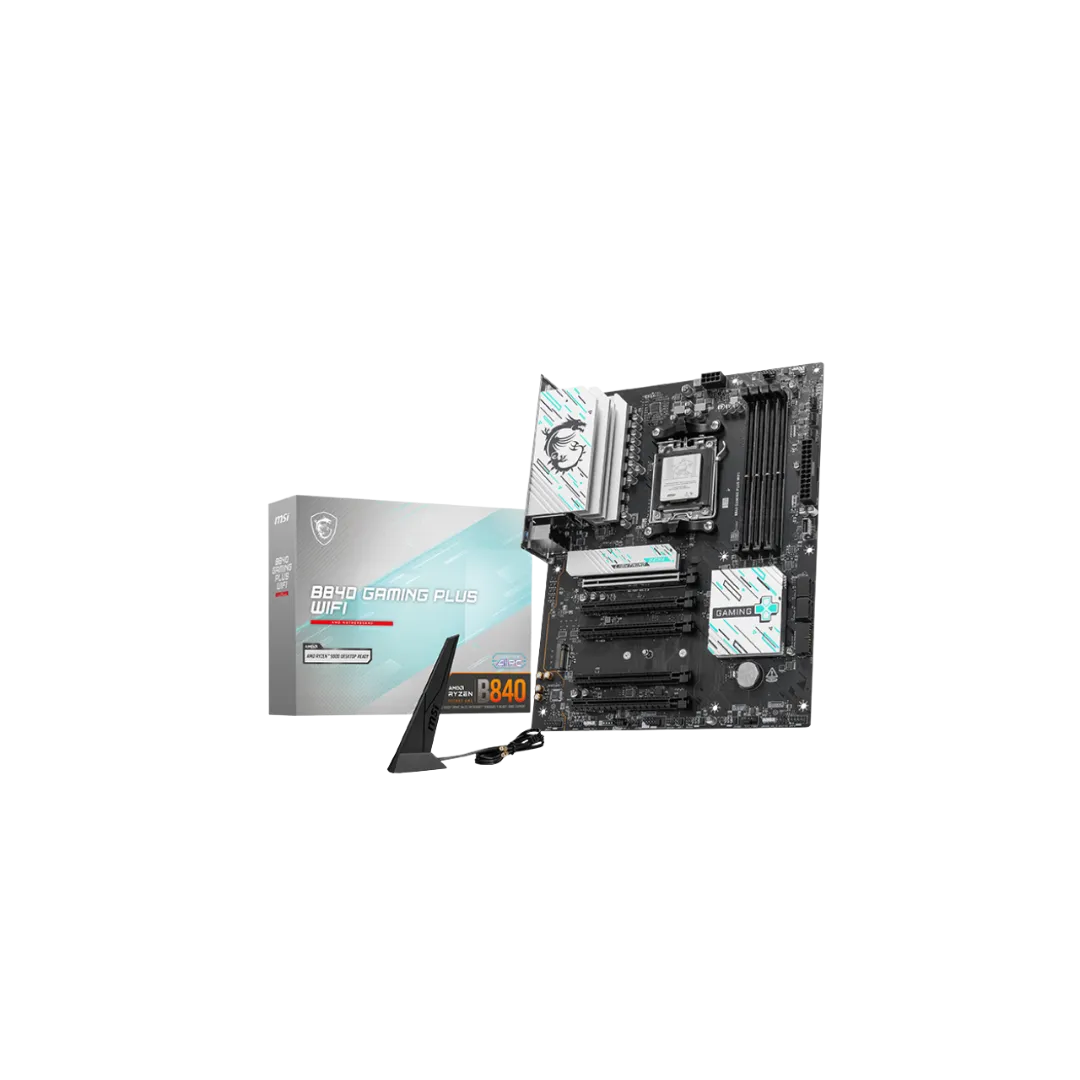

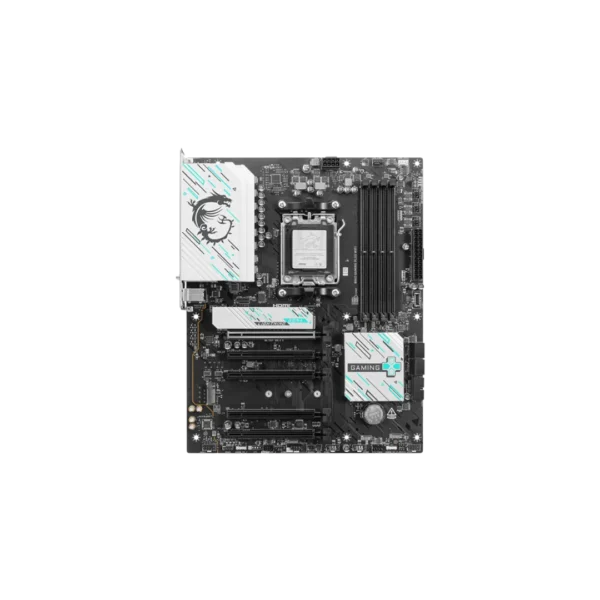

MSI B840 GAMING PLUS WIFI
The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
| Category | Specification |
|---|
| Chipset | AMD B840 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory Slots | 4x DDR5 UDIMM (Up to 256GB) |
| Memory Support | DDR5 8000–5600 (OC) MT/s / DDR5 5600–4800 (JEDEC) MT/s |
| Max Overclocking (Ryzen 9000) | 1DPC 1R: 8000+ MT/s 1DPC 2R: 6400+ MT/s 2DPC 1R: 6400+ MT/s 2DPC 2R: 5600+ MT/s |
| Memory Features | Dual-Channel, AMD EXPO™, Non-ECC, Un-buffered, CUDIMM (Clock Driver bypass mode only) |
| Onboard Graphics | 1x HDMI™ 2.1 (4K@60Hz, CPU dependent) |
| Expansion Slots | 5x PCIe x16 – PCI_E1: Gen 4 x16 (CPU) – PCI_E2: Gen 3 x1 (Chipset) – PCI_E3: Gen 3 x1 (Chipset) – PCI_E4: Gen 3 x4 (Chipset) – PCI_E5: Gen 3 x1 (Chipset) |
| PCI_E1 Support by CPU | Ryzen™ 9000/7000: x16 Ryzen™ 8700/8600/8400: x8 Ryzen™ 8500/8300: x4 |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage | 2x M.2 – M.2_1 (CPU): PCIe 4.0 x4, 2280/2260 – M.2_2 (CPU): PCIe 4.0 x4, 22110/2280/2260 4x SATA 6Gb/s |
| M.2 Support by CPU | Ryzen™ 9000/7000: PCIe 4.0 x4 Ryzen™ 8700/8600/8400: PCIe 3.0 x4 Ryzen™ 8500/8300: PCIe 3.0 x2 |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1 (M.2 NVMe) |

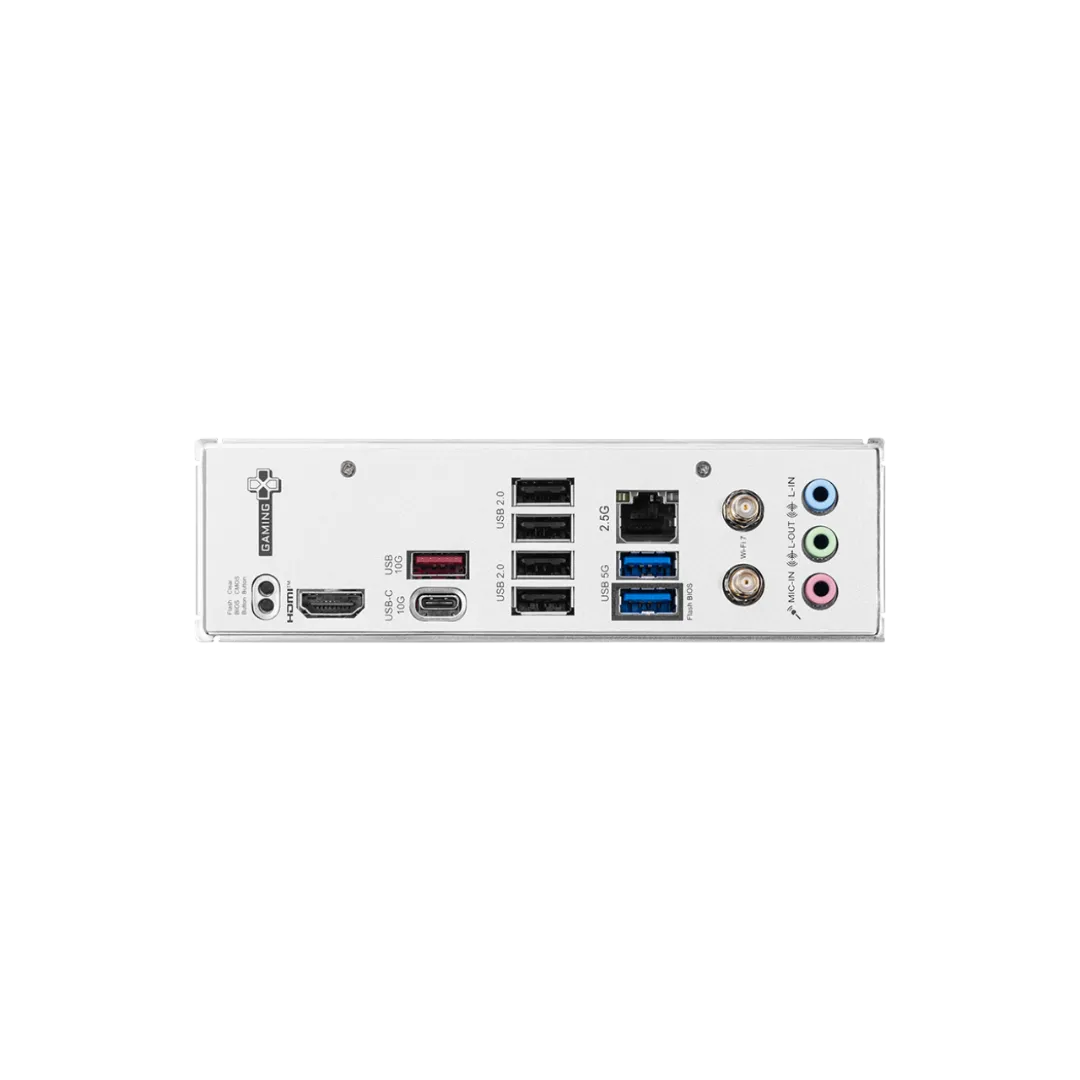

| USB Ports | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal I/O | 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 1x Combo Fan (Pump/Sys), 4x System Fan, 1x EZ Conn-header, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x JDASH, 2x JARGB_V2, 1x JRGB, 1x TPM header |
| Wireless LAN | Wi-Fi 7 (M.2 Key-E slot), MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz, up to 5.8Gbps |
| Bluetooth | Bluetooth® 5.4 (Windows 11 version 24H2 required) |
| LED Feature | 4x EZ Debug LED |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX (243.84mm x 304.8mm) |
For further details, visit official website.
“TechMathced offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 1-Year |
