Description
MSI B650M Gaming Wifi DDR5 AMD AM5 microATX Motherboard – Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors – Supports DDR5 Memory
About this item
- Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper

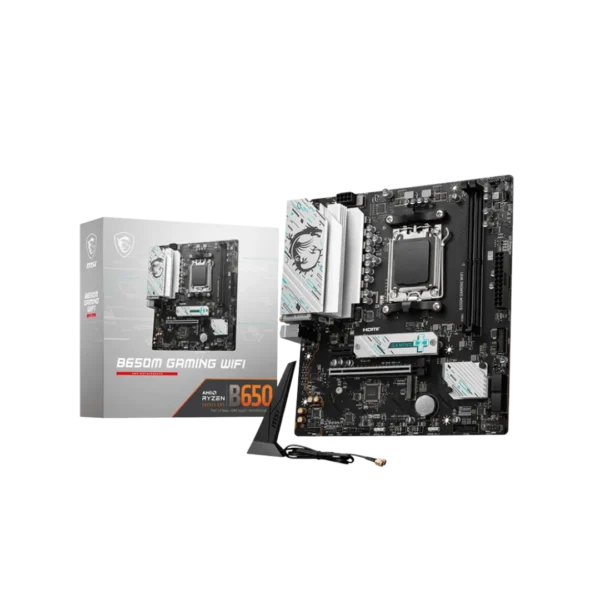

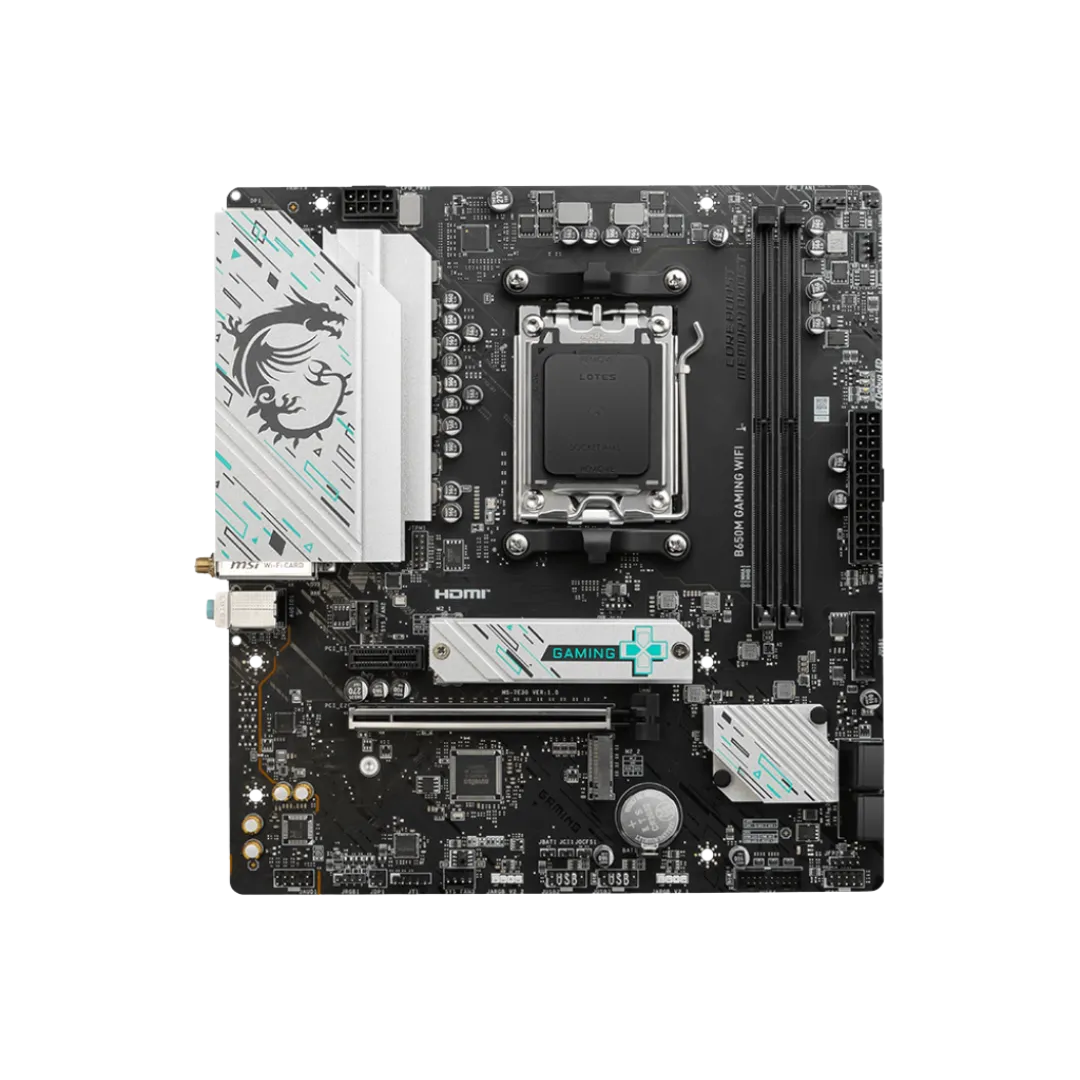

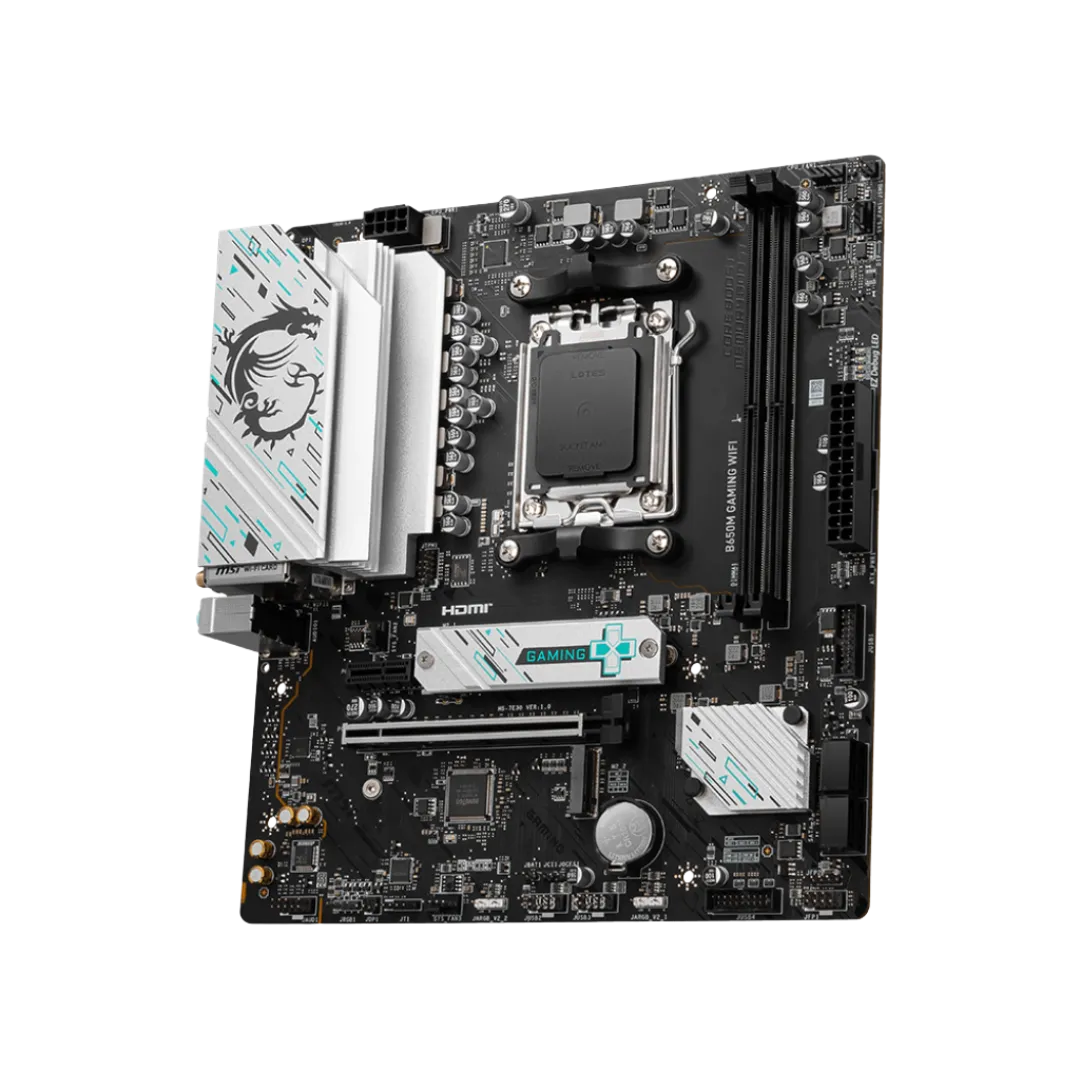

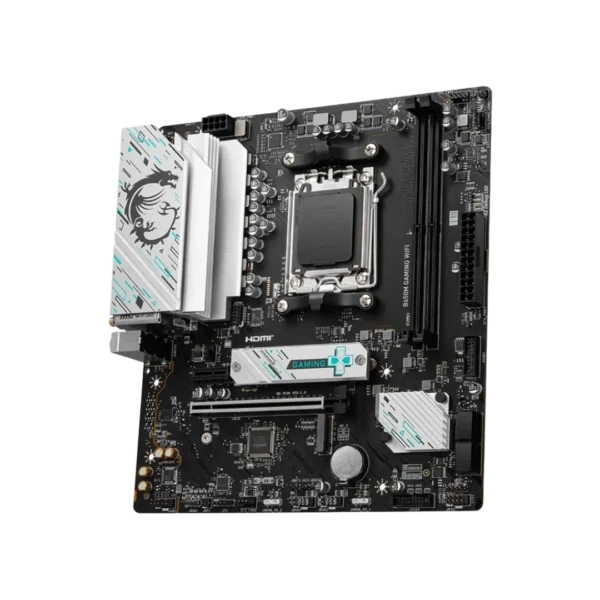

MSI B650M GAMING WIFI
B650M GAMING WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
Specification
Chipset | AMD B650 |
---|---|
CPU | Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode |
Onboard Graphics | 1x HDMIâ„¢ Support HDMIâ„¢ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot | 1x PCI-E x16 slot Supports x16/x1 • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G •The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
LAN | Realtek® RTL8125BG 2.5Gbps LAN |
Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
LED FEATURE | 4x EZ Debug LED |

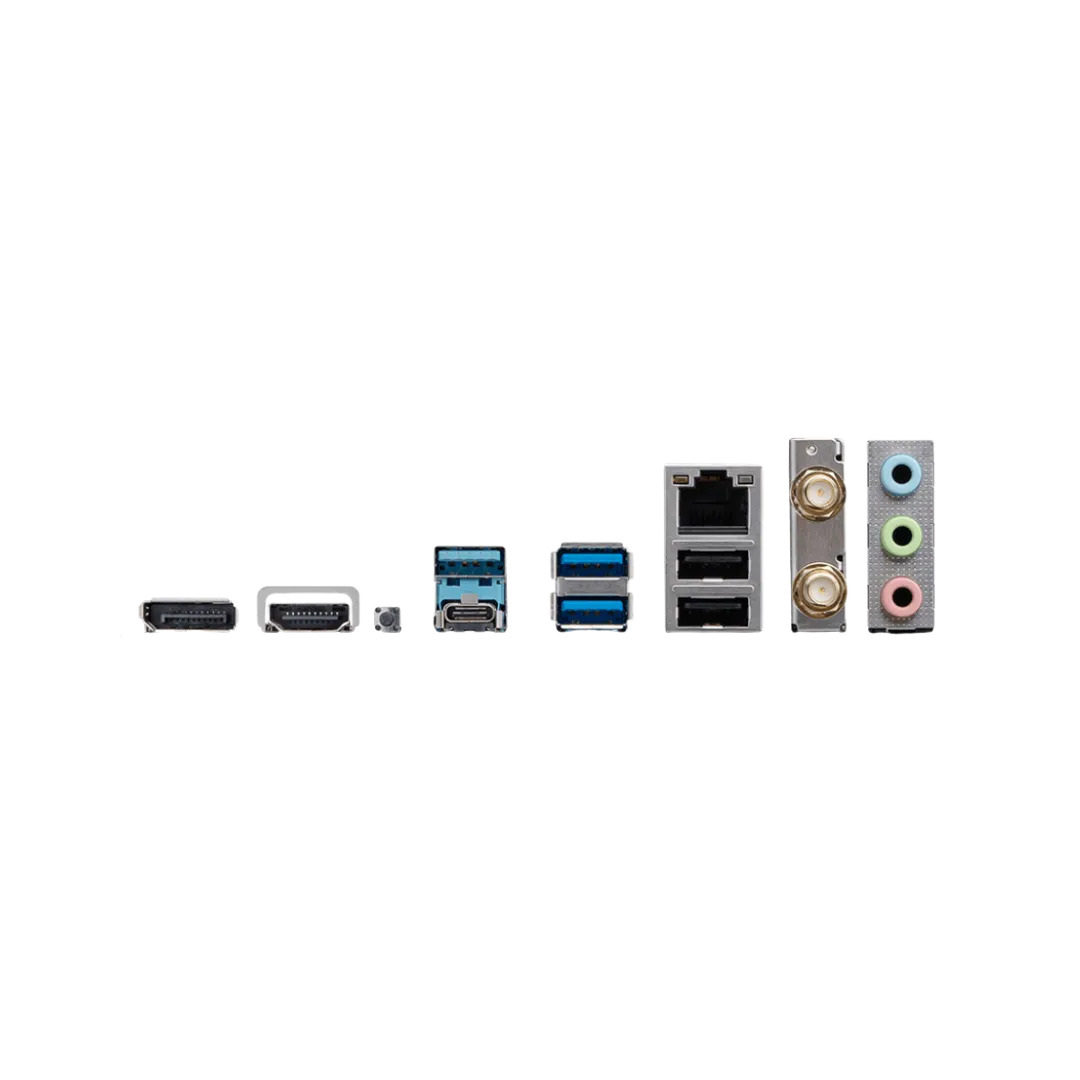

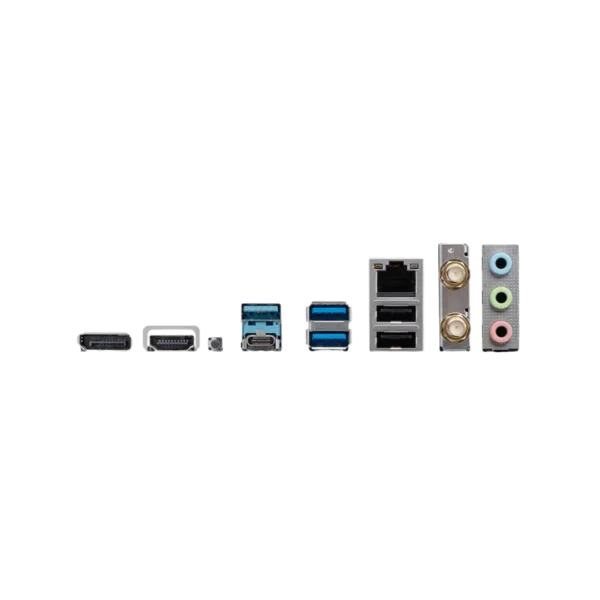

BACK PANEL PORTS | ![]()
|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
For further details, visit official website.
