Buy Gigabyte X870E Aorus Master Motherboard in Pakistan | TechMatched

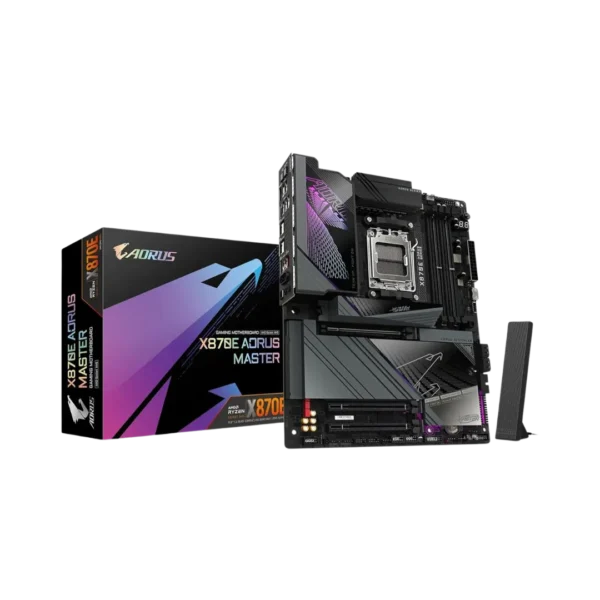

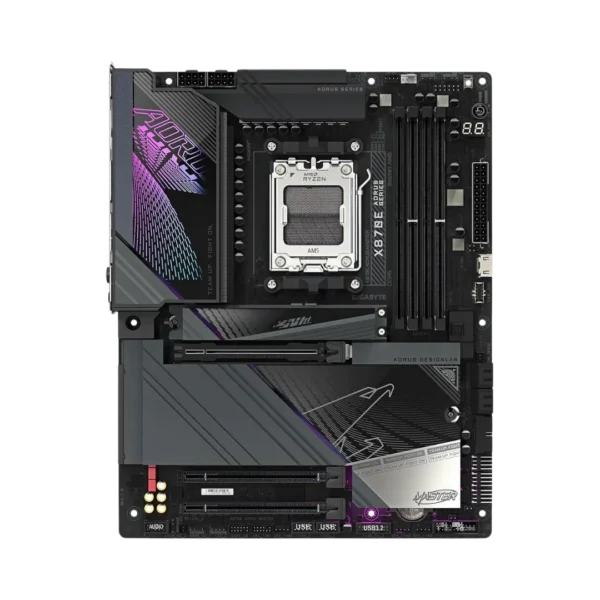

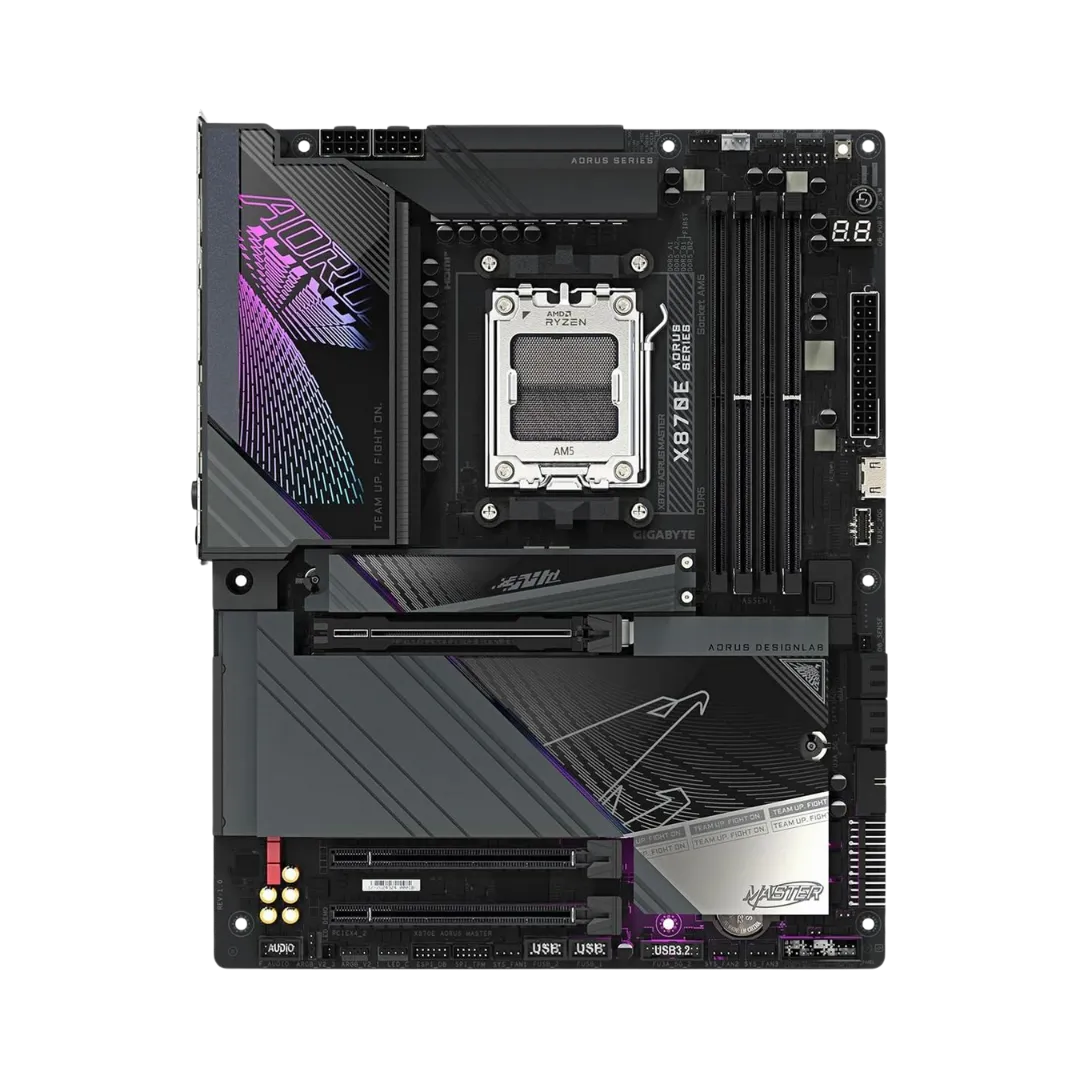

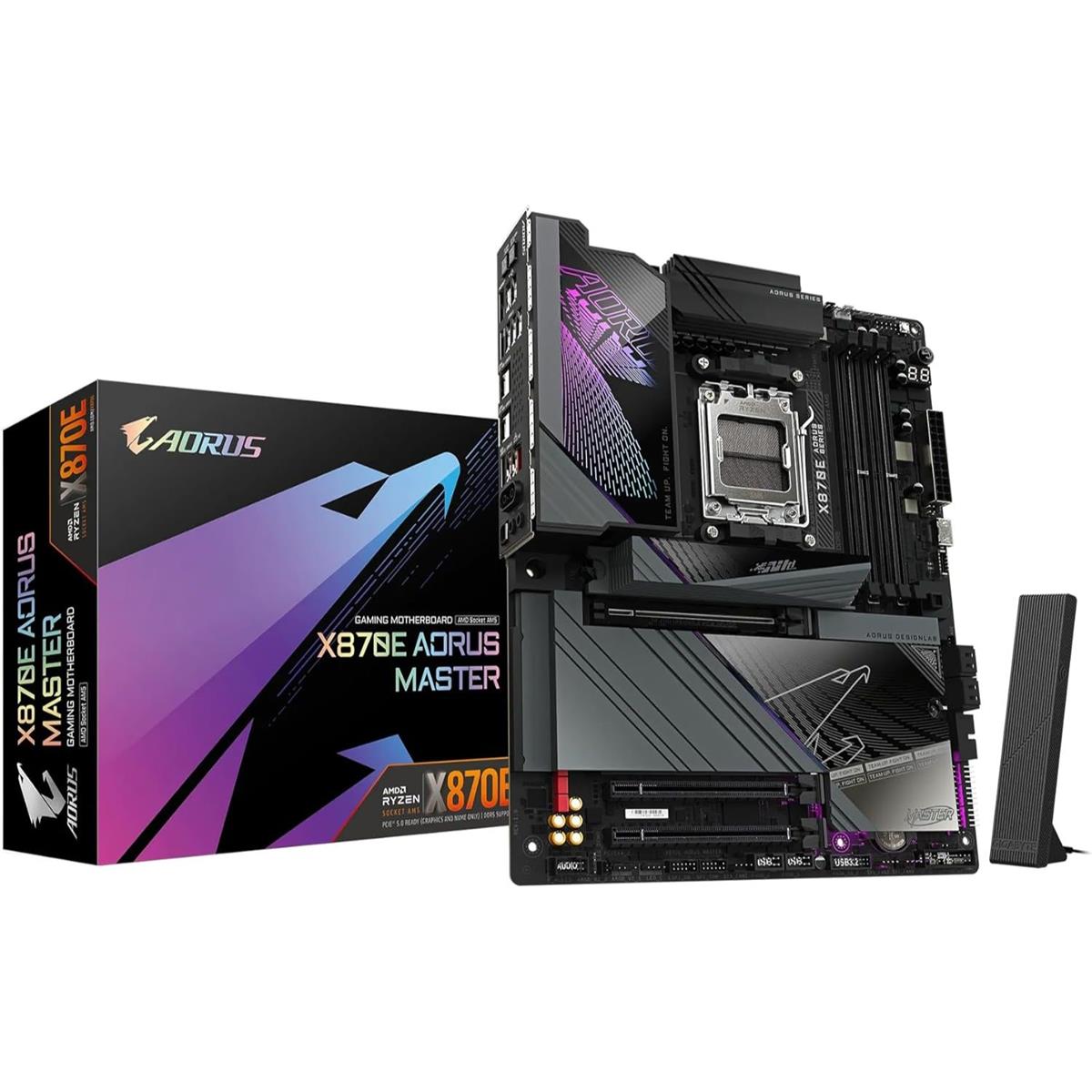

Gigabyte X870E Aorus Master AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4X M.2, PCIe 5.0, USB4, WIFI7, 5GbE LAN, EZ-Latch
- DDR5 OC up to 8600MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules
- M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio : Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Gigabyte X870E Aorus Master
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration
Enhance DDR5 speeds with a single click.
Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
SPECIFICATION
Category | Specification |
---|---|
CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series (AM5 Socket) |
Chipset | AMD X870E |
Memory Support | DDR5 4400–8600 (OC), up to 256GB, 4x DIMMs, ECC/Non-ECC Un-buffered DIMMs, Dual Channel, AMD EXPO™ & XMP |
Integrated Graphics | AMD Radeon™ (depends on CPU) |
Graphics Ports | 2x USB4 Type-C (DP), 1x HDMI 2.1 (4K@60Hz), 1x Front HDMI 1.4 (1080p@30Hz) |
Audio | Realtek® ALC1220, DTS:X® Ultra, 7.1-channel, S/PDIF Out |
LAN | Realtek® 5GbE (5G/2.5G/1G/100M) |
Wi-Fi & Bluetooth | Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3 |
Expansion Slots | – 1x PCIe 5.0 x16 (CPU, shares lanes with M.2) – 1x PCIe 4.0 x4 (Chipset) – 1x PCIe 3.0 x4 (Chipset) |
M.2 Storage | – 1x PCIe 5.0 x4 (M2A_CPU) – 2x PCIe 5.0 x4 (M2B/M2C_CPU, Ryzen 9000/7000 only) – 1x PCIe 4.0 x4 (M2D_SB) |
SATA Storage | 4x SATA 6Gb/s, RAID 0/1/5/10 |
USB (Back Panel) | – 2x USB4 Type-C – 4x USB 3.2 Gen 2 Type-A – 4x USB 3.2 Gen 1 – 2x USB 2.0 |
USB (Internal) | – 1x USB 3.2 Gen 2×2 Type-C – 4x USB 3.2 Gen 1 – 4x USB 2.0 |
Internal I/O | – 2x 8-pin CPU Power – 6x Fan Headers – 5x RGB Headers – TPM, Noise, Temp Sensors – Front Panel/Audio/USB Headers |
BIOS | AMI UEFI BIOS, Q-Flash, Q-Flash Plus |
Software | GIGABYTE GCC, Norton OEM, LAN Manager |
Operating System | Windows 11 64-bit only |
Form Factor | ATX (30.5cm x 24.4cm) |
For further details, visit official website.
