AMD Socket AM5 Support

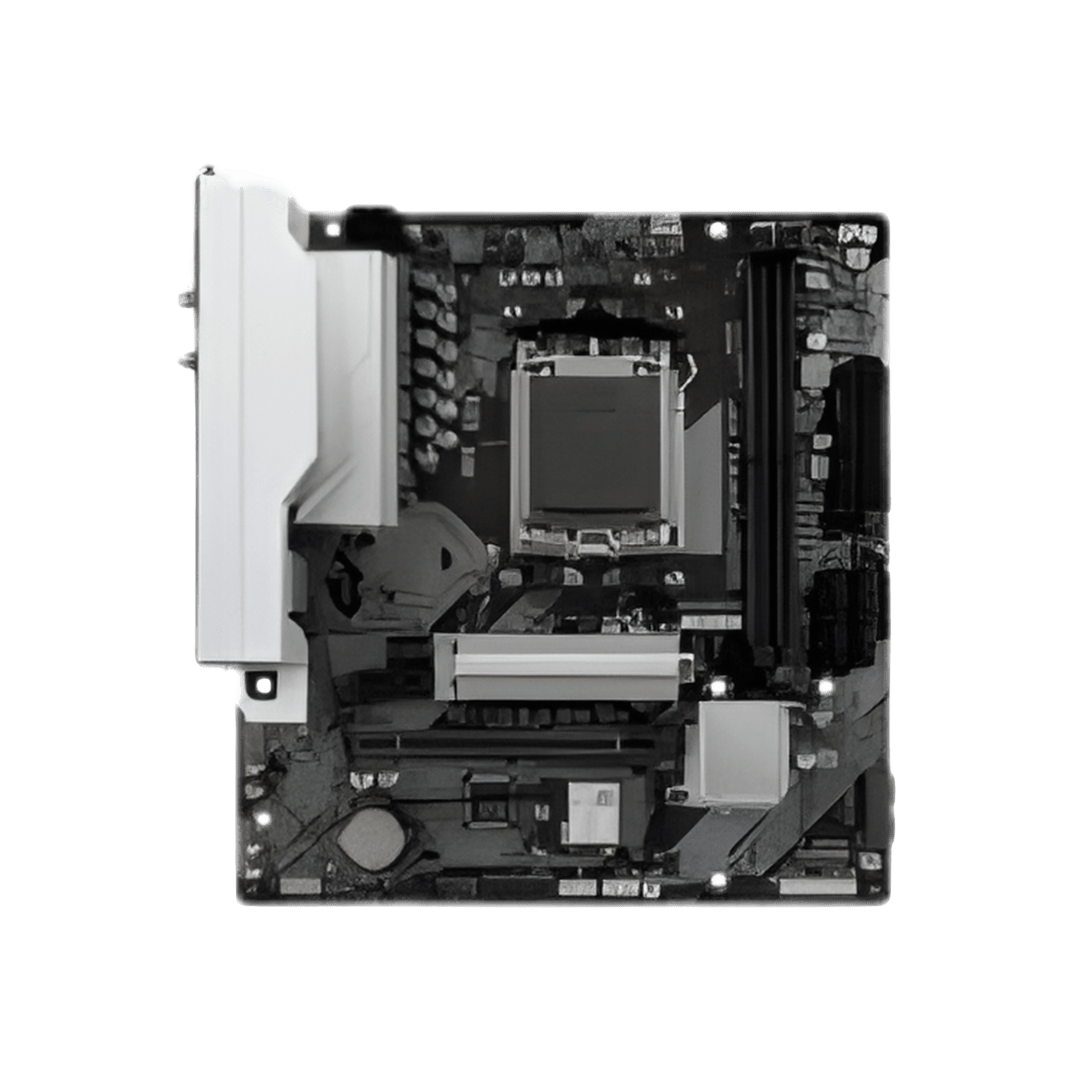

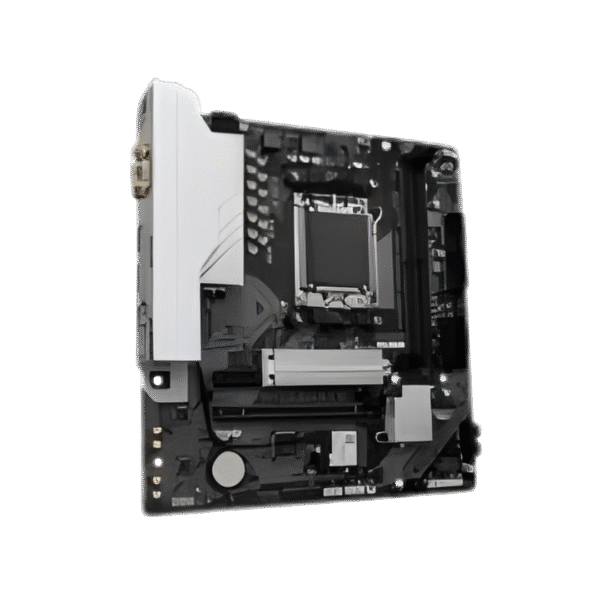

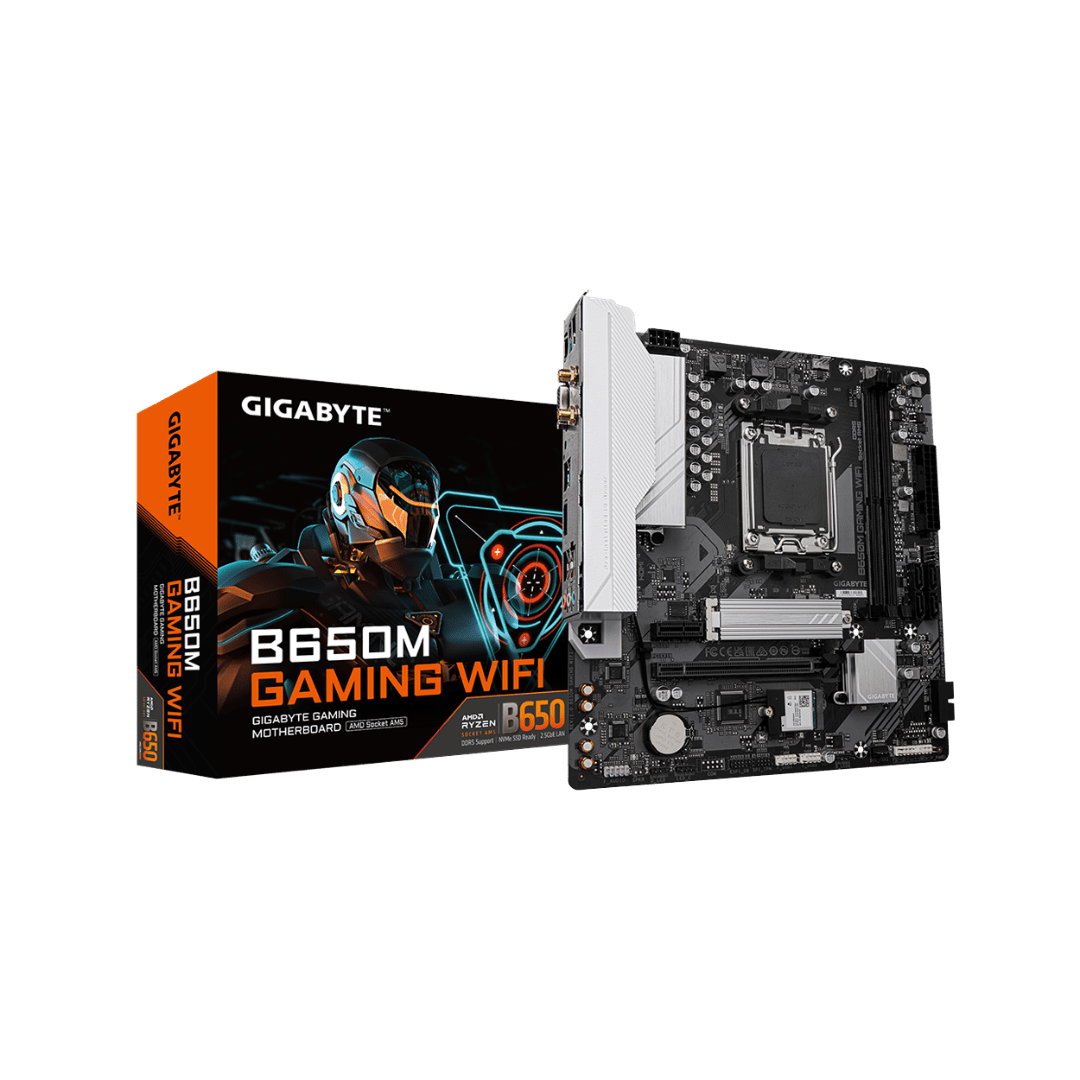

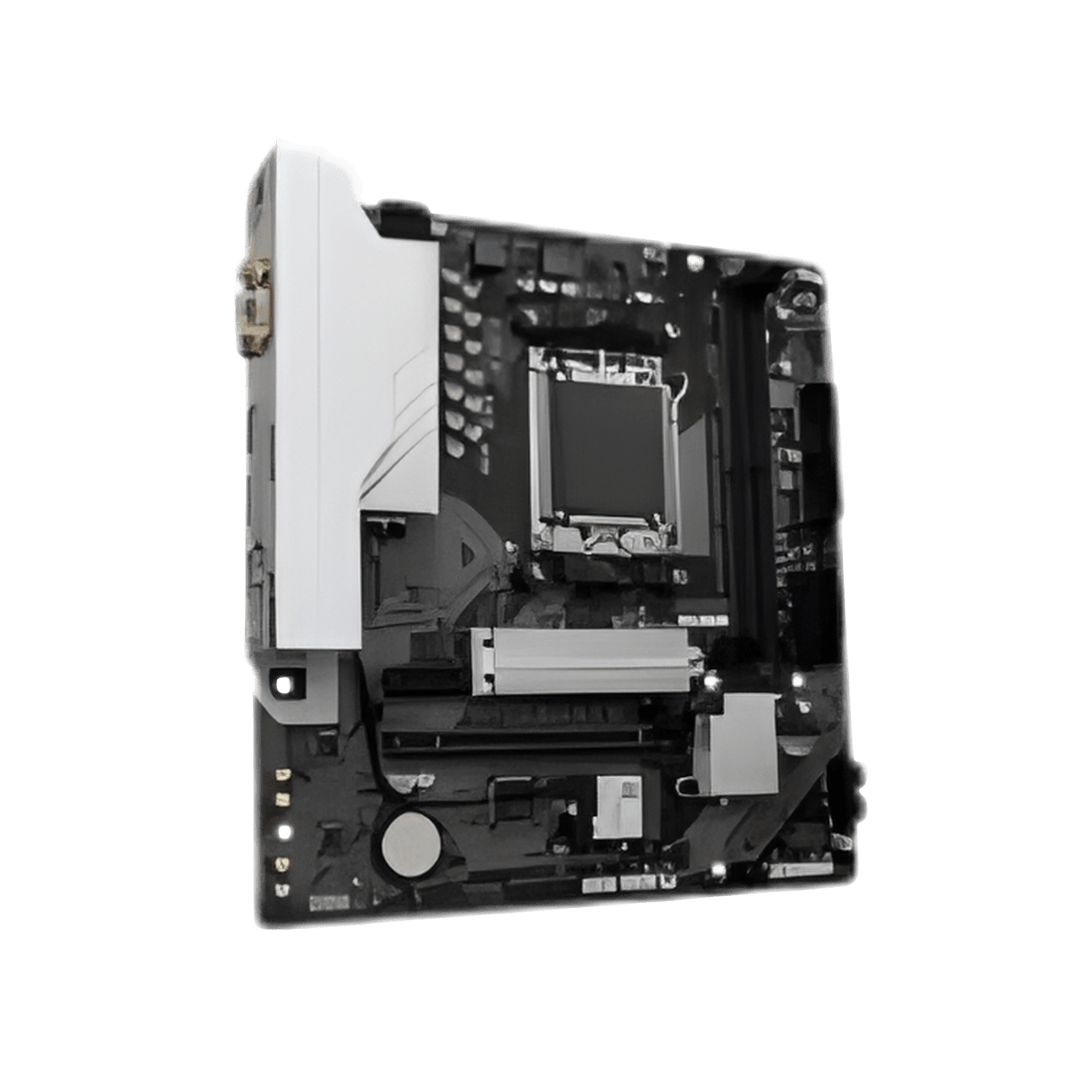

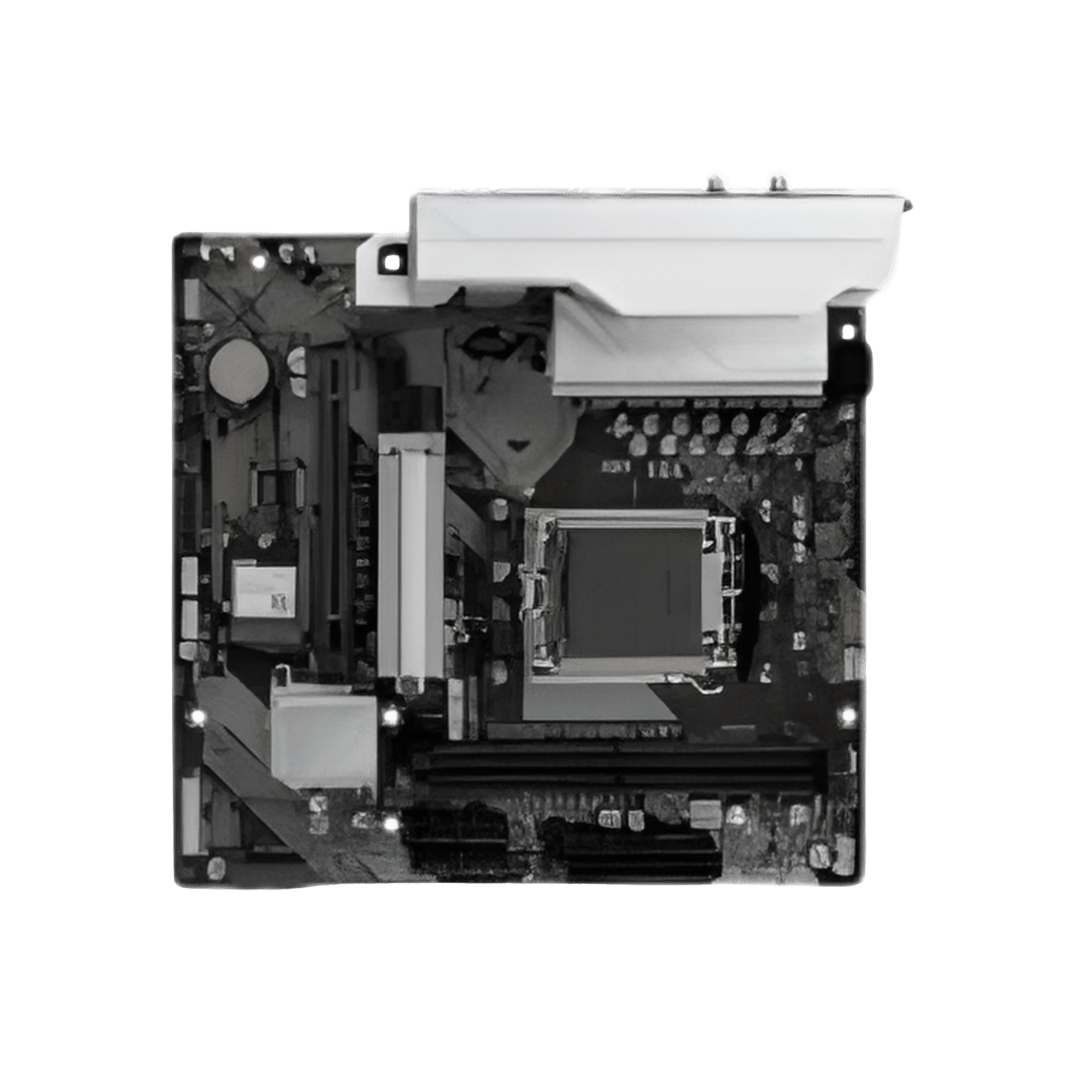

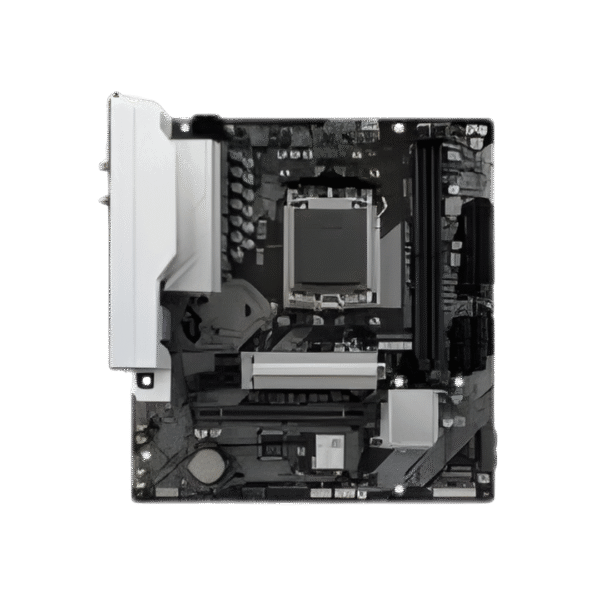

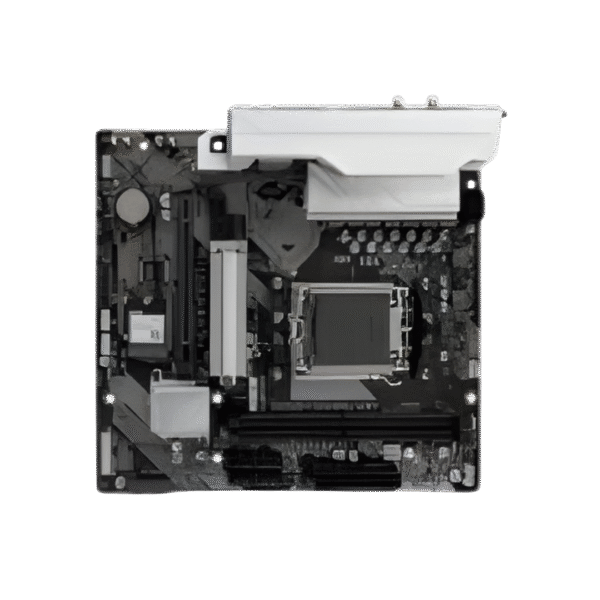

The GIGABYTE B650M GAMING WIFI is built on the advanced AMD AM5 platform, offering full compatibility with AMD Ryzen 7000 and Ryzen 8000 Series processors. This provides next-generation performance, improved efficiency, and access to the latest AMD technologies.
High-Performance Power Delivery
Featuring a 5+2+2 phase digital VRM design, the motherboard ensures stable and efficient power delivery to the CPU and other critical components. This design supports smooth performance during gaming, multitasking, and demanding workloads.
Dual-Channel DDR5 Memory Support
With two SMD DDR5 DIMM slots, the board supports high-speed memory modules with AMD EXPO and Intel XMP profiles. These technologies allow easy memory tuning for higher frequencies and improved stability.
Ultra-Fast Storage
The motherboard includes support for PCIe 4.0 x4 M.2 SSDs, delivering rapid storage performance, faster boot times, and reduced game and application loading speeds.
EZ-Latch PCIe Slot
The primary PCIe x16 slot is equipped with GIGABYTE’s EZ-Latch quick-release mechanism, allowing users to install or remove graphics cards more conveniently without dealing with tight or obstructed latches.
High-Speed Networking
Built-in 2.5GbE LAN provides fast and reliable wired networking, ideal for smooth online gameplay, large data transfers, and low-latency connectivity.
Versatile Display Outputs
The motherboard offers HDMI and D-Sub display outputs, ensuring compatibility with both modern and older monitors. Users can run display outputs even without a dedicated GPU when using a Ryzen processor with integrated graphics.
Smart Fan 6 Cooling System
Smart Fan 6 includes multiple temperature sensors and hybrid fan headers that support both PWM and DC fans. The Fan Stop feature keeps the system silent when temperatures are low, ensuring efficient and quiet cooling.
Q-Flash Plus BIOS Update
With Q-Flash Plus, users can update the BIOS without installing a CPU, memory, or graphics card. This feature makes it easy to prepare the motherboard for newer processors before assembling the full system.
Specifications
| Category |
Specification |
| CPU Support |
AMD Socket AM5, Ryzen 7000 / 8000 / 9000 Series |
| Chipset |
AMD B650 |
| Memory |
2 x DDR5 DIMM slots, up to 128 GB, DDR5 4400–6400(OC), Dual-Channel, AMD EXPO & XMP support |
| Graphics |
1 x D-Sub (1920×1200@60Hz), 1 x HDMI (4096×2160@60Hz) |
| Audio |
Realtek HD Audio, up to 7.1 channels |
| LAN |
Realtek 2.5GbE |
| Wireless |
WiFi 802.11 a/b/g/n/ac, Bluetooth 4.2 |
| Expansion Slots |
1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset) |
| Storage |
1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/10 |
| USB |
Rear: 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x USB 2.0
Internal: 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| Back Panel |

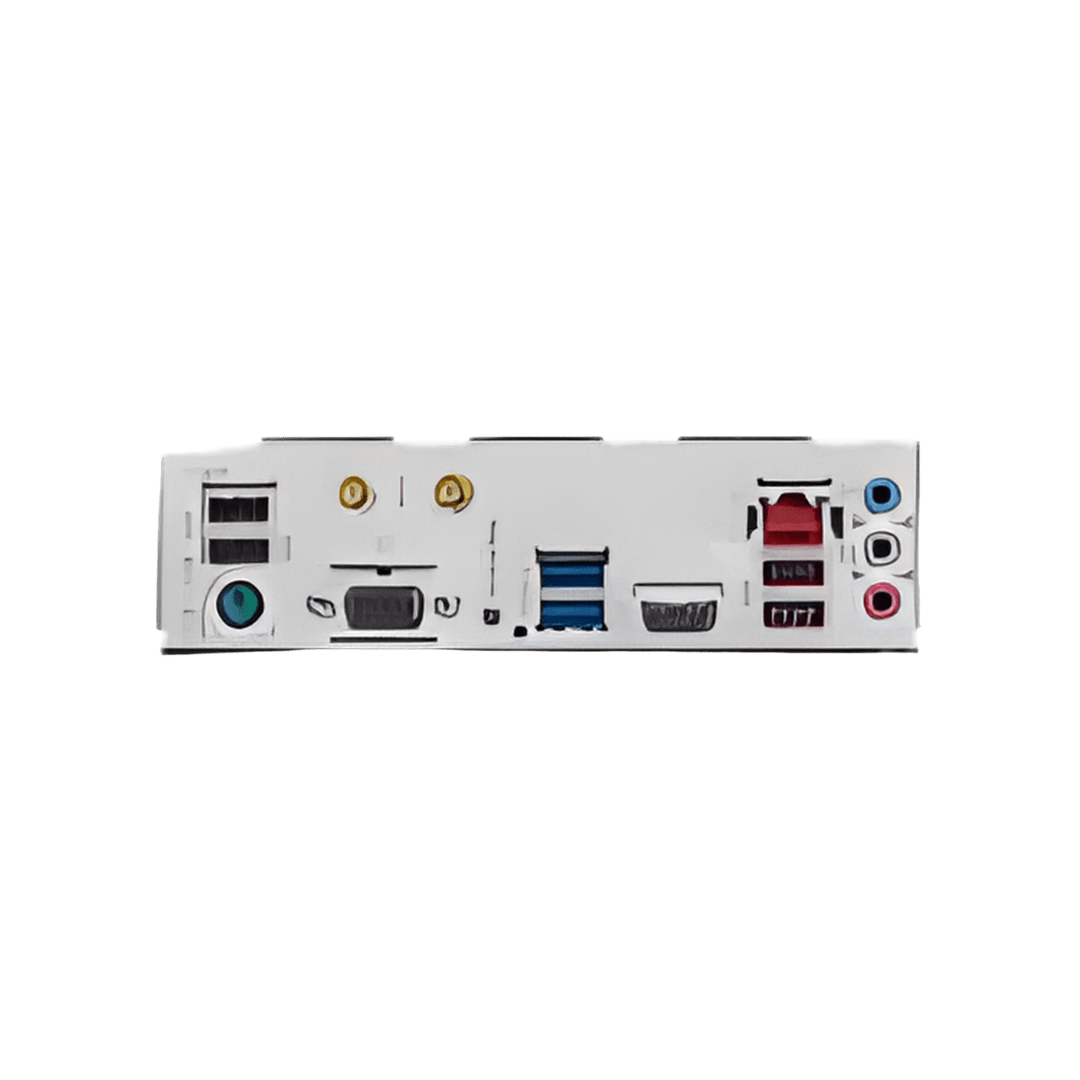

USB ports, PS/2, D-Sub, HDMI, LAN, audio jacks, Q-Flash Plus button |
| Internal Headers |
Fan headers, RGB/ARGB headers, TPM, SATA, M.2, front USB |
| BIOS |
AMI UEFI, 256 Mbit, Q-Flash & Q-Flash Plus |
| OS Support |
Windows 10/11 64-bit |
| Form Factor |
Micro ATX (24.0 cm x 22.5 cm) |
