Description

Key Features

• Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra Durable™ PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
• High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
• Realtek GbE LAN with Bandwidth Management

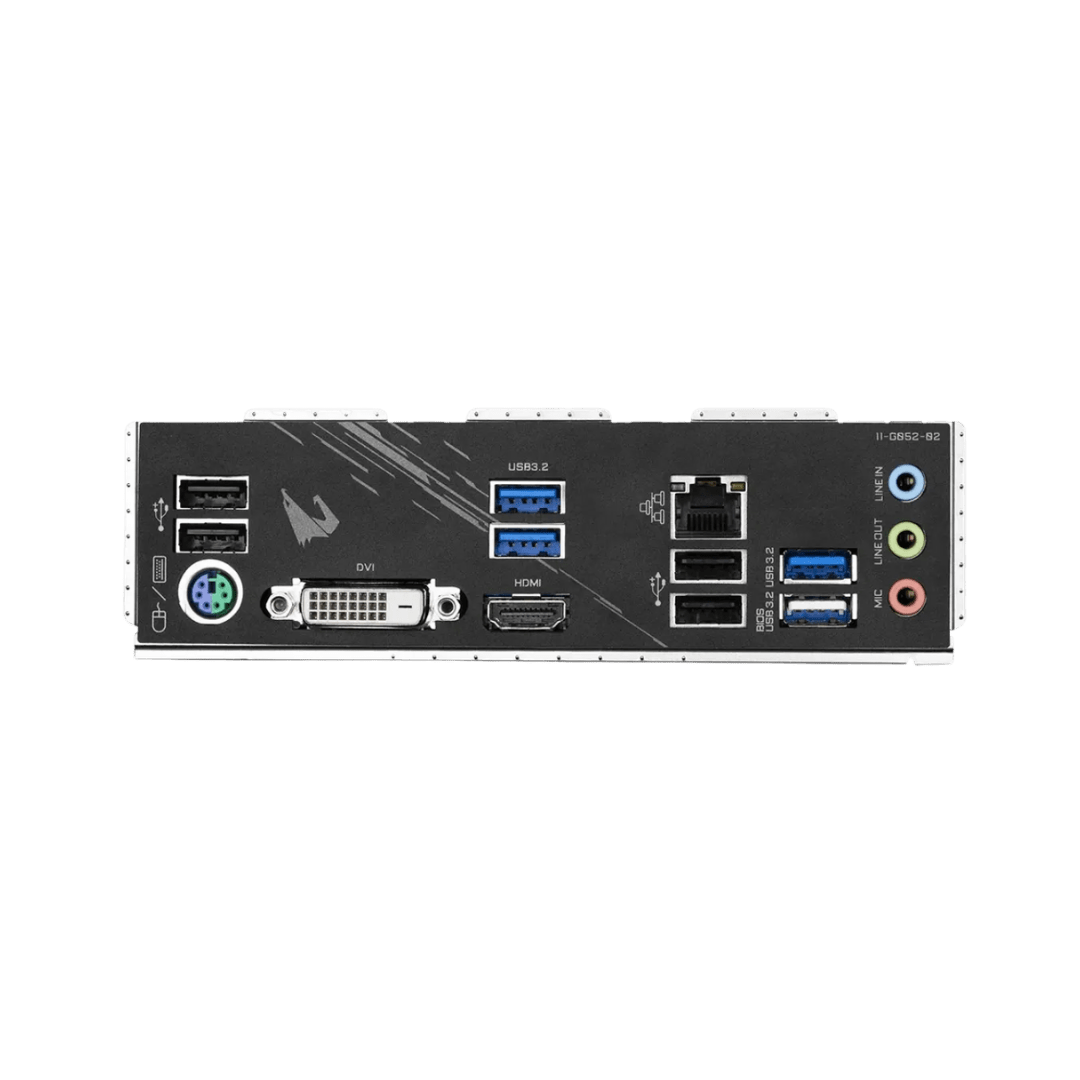

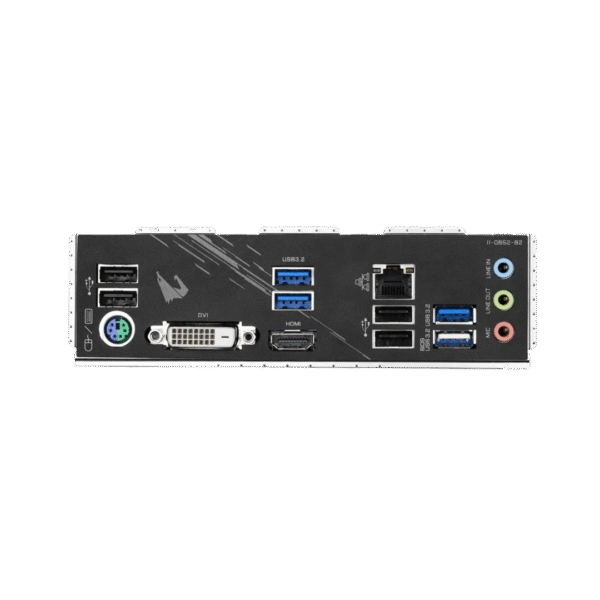

• Rear HDMI & DVI Support
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Anti-Sulfur Resistors Design

  AMD StoreMI Technology

  GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

  The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users’ computing behaviors

  Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi

  PERFORMANCE
  5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

  GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

  Benefits of Low RDS(on) MOSFETs

  ‧ Optimized gate charge to minimize switching losses.
  ‧ Lower temperature, smaller size, better thermal characteristics.



  PCIe 4.0* Hardware Design

  PCIe 4.0 Slot

  PCIe 4.0 x16 slot with faster bandwidth and lower impedance.

  M.2 PCIe 4.0 Slot

  M.2 PCIe 4.0 x4 slot with Lower impedance.

  * Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
  CONNECTIVITY
  Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

  With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

  *Actual support may vary by CPU.




  Realtek GbE LAN with Bandwidth Management

  Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.



  HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support



  HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.



  Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
  Learn more about PERFORMANCE
  COOLING
  Enlarged MOSFET Heatsink

  • Enlarged MOSFET Heatsink ensures lower temperature.
  • Pre-installed IO Shield for easier assembly.





  Smart Fan 5

  With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



  Fan Connectors

  Internal Temperature Sensors

  Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

  Temperature Sensors



  Hybrid Fan Headers



  ■ 5 Temperature Sensors
  ■ 3 Fan Pin Headers
  ■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
  ■ Interoperable Fans and Sensors
  ■ Intuitive UI for Fan Control
  FAN STOP

  Hybrid FAN Header

  Smart Fan 5 Software

  Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

  Intelligent Fan Control Design



  LIGHTING
  RGB FUSION 2.0

  With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

  With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

  * The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.



  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •






  RGB Fusion 2.0 Software

  RGB Fusion APP



  With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.



  Sync with one click



  Individual control as you wish

  AUDIO


  High-End Audio Capacitors

  GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

  Audio Noise Guard

  GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
  ULTRA DURABLE
  Q-Flash Plus

  Update the BIOS easily without installing the CPU, memory and graphics card.



  With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!






  GIGABYTE Patented Double Locking Bracket



  Solid Pin Power Connectors

  B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.



  Solid Pin Power connector advantages

  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan



  START SULFURIZATION PROTECTION

  Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
