Product Description

Case Design and Dimensions

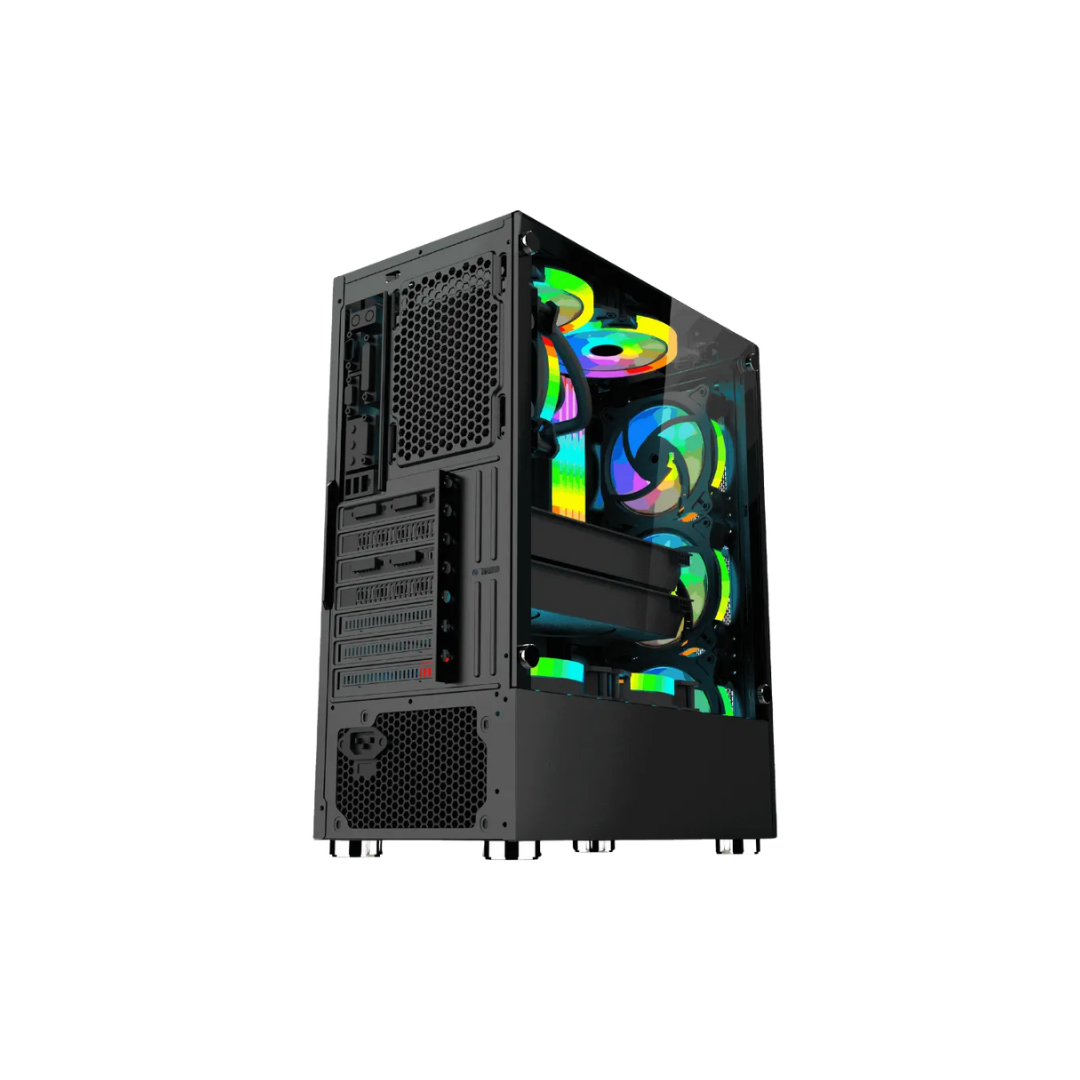

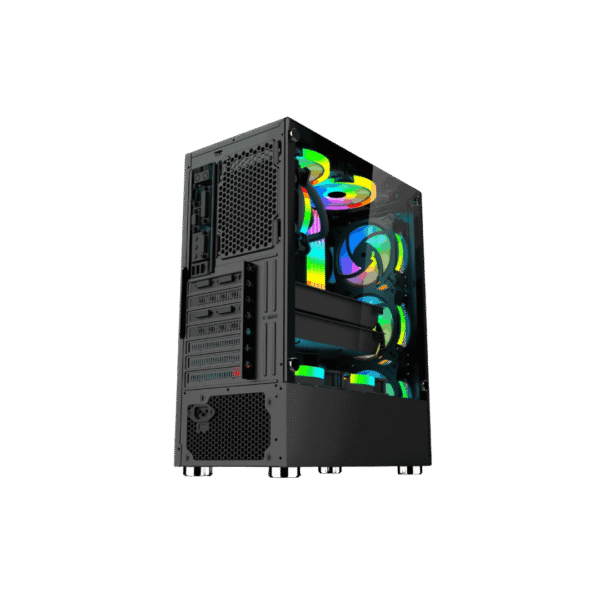

The case is designed as a mid-tower chassis with overall dimensions of 375 × 210 × 480 mm, including footpad support for added stability. Its internal hardware space measures 335 × 210 × 468 mm, offering ample room for component installation while maintaining efficient airflow. The package dimensions of 425 × 265 × 530 mm ensure safe handling and protection during transport.

Motherboard and Power Supply Compatibility
This case supports a wide range of motherboard sizes, including E-ATX, ATX, and Micro-ATX, making it suitable for various build requirements. It is compatible with ATX power supplies and features a bottom-mounted PSU design that helps improve airflow separation and simplifies cable routing.

Component Clearance and Expansion Support
The chassis allows a maximum CPU cooler height of 165 mm, enabling the use of most high-performance air cooling solutions. It also supports graphics cards up to 320 mm in length, making it compatible with modern GPUs. With seven PCIe expansion slots, the case provides sufficient space for graphics cards and additional expansion components.

Storage Configuration
The case offers flexible storage options with support for one HDD and three SSDs. This configuration allows users to combine high-capacity storage with fast solid-state drives for improved system performance and organization.

Cooling and Thermal Performance

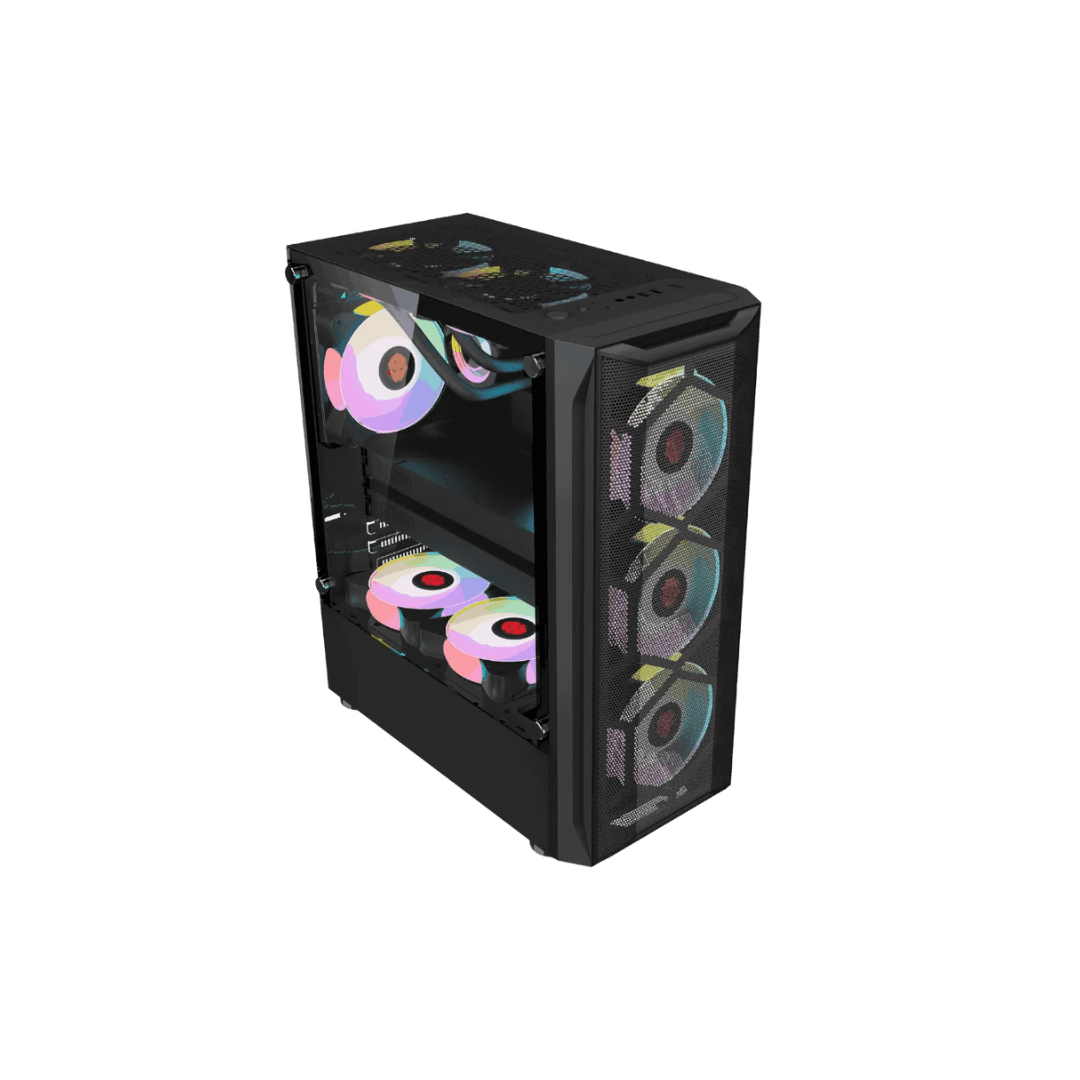

The case is designed for efficient air and liquid cooling configurations. The front panel supports three 120 mm fans or three 140 mm fans and allows installation of a 360 mm liquid cooling radiator. The top panel supports two 120 mm or 140 mm fans and a 240 mm radiator. Additional cooling options include one 120 mm rear fan and support for two 120 mm fans in the power supply chamber, ensuring balanced airflow and effective heat dissipation.

Front Panel Connectivity
The front I/O panel provides convenient access to essential connections, including HD Audio, one USB 3.0 port, and two USB 1.0 ports, allowing easy connectivity for peripherals and audio devices.

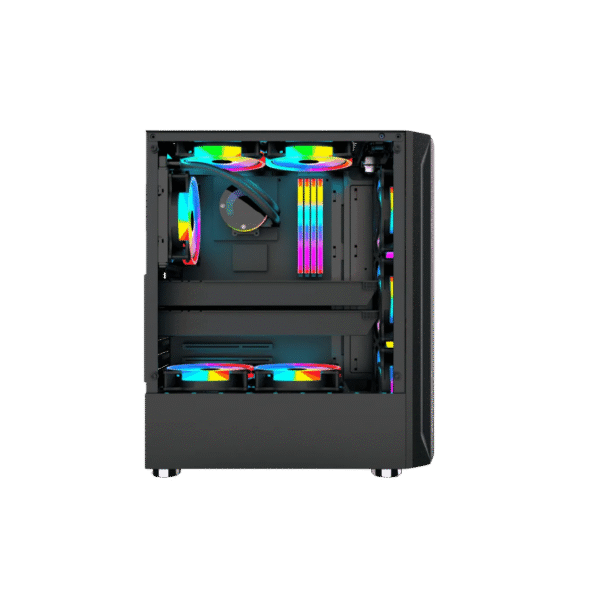

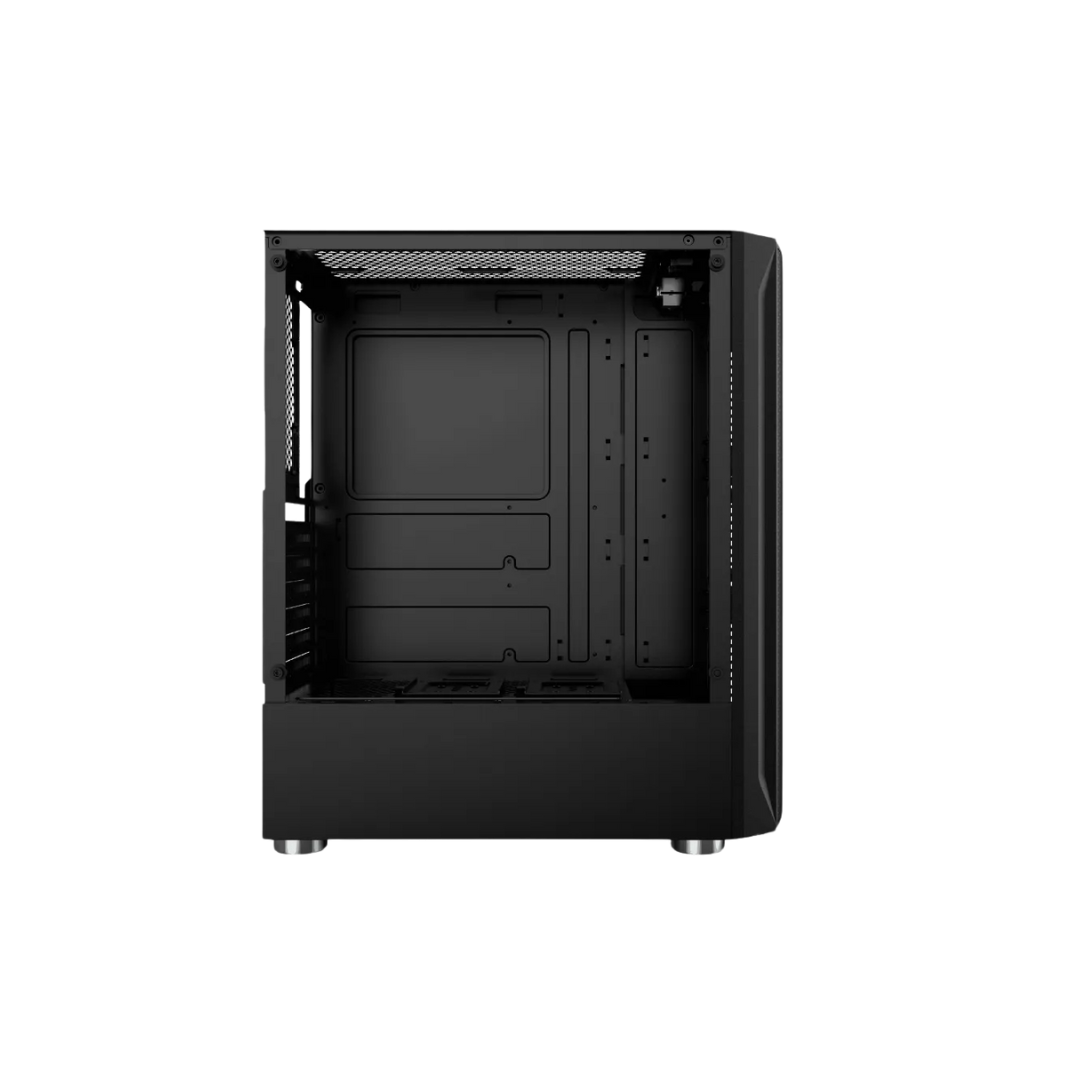

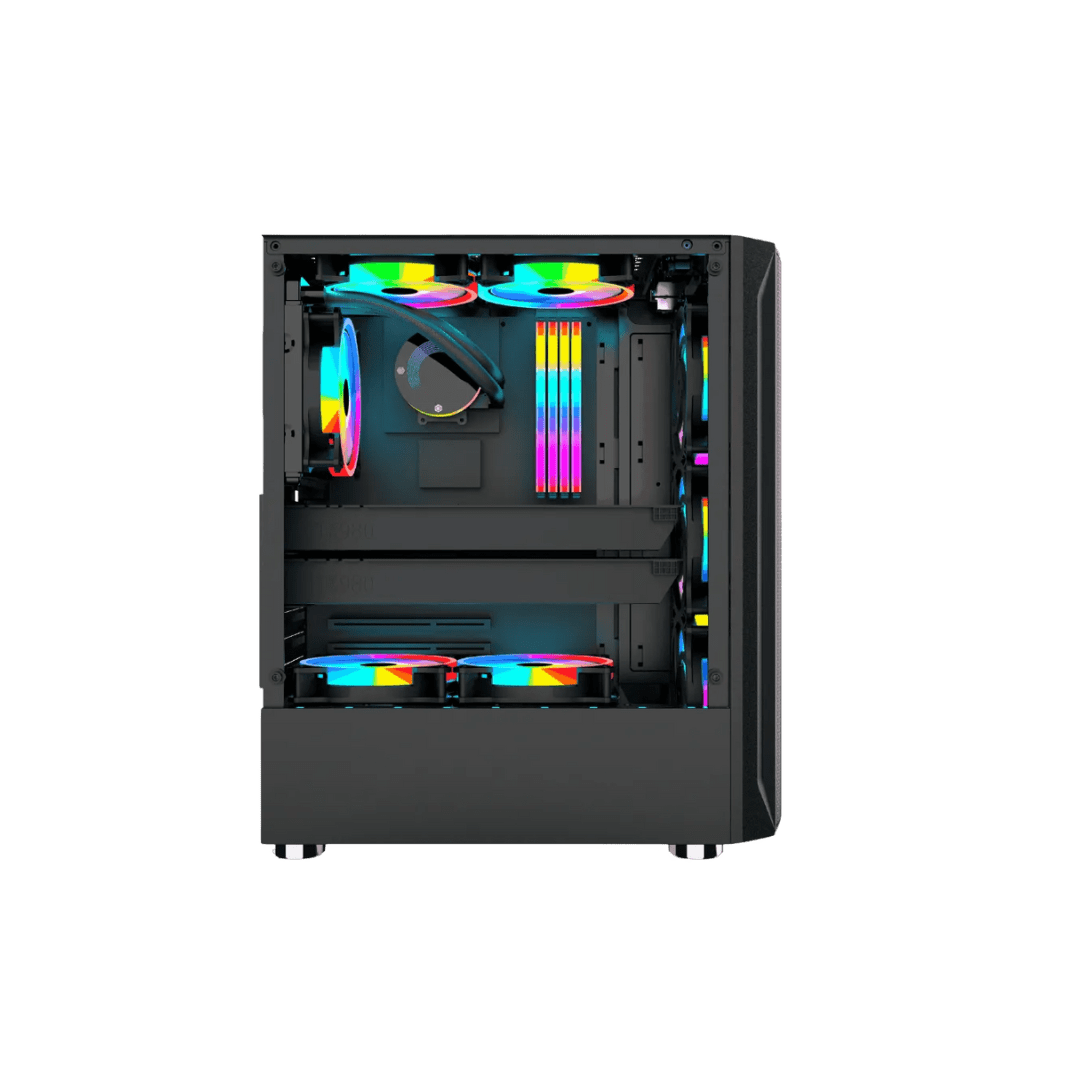

Internal Layout and Build Efficiency
The internal layout is optimized to promote smooth airflow and clean cable management. This design helps maintain an organized internal structure, improves cooling efficiency, and simplifies system assembly and future upgrades.
