About this item

  • AMD Ryzen AM5 support
  • DDR5 memory up to 96GB
  • 2× M.2 + 4× SATA
  • PCIe 4.0 x16/x4 slots
  • Realtek 2.5G LAN

Warranty!

10 Months Warranty

Avail Free delivery on bank transfer

Description

Buy Colorful Battle-AX B650M-D Pro V14 Motherboard in Pakistan | TechMatched

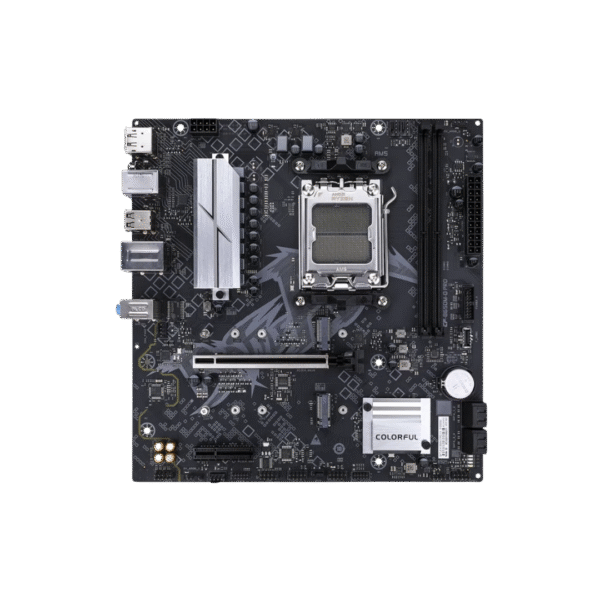

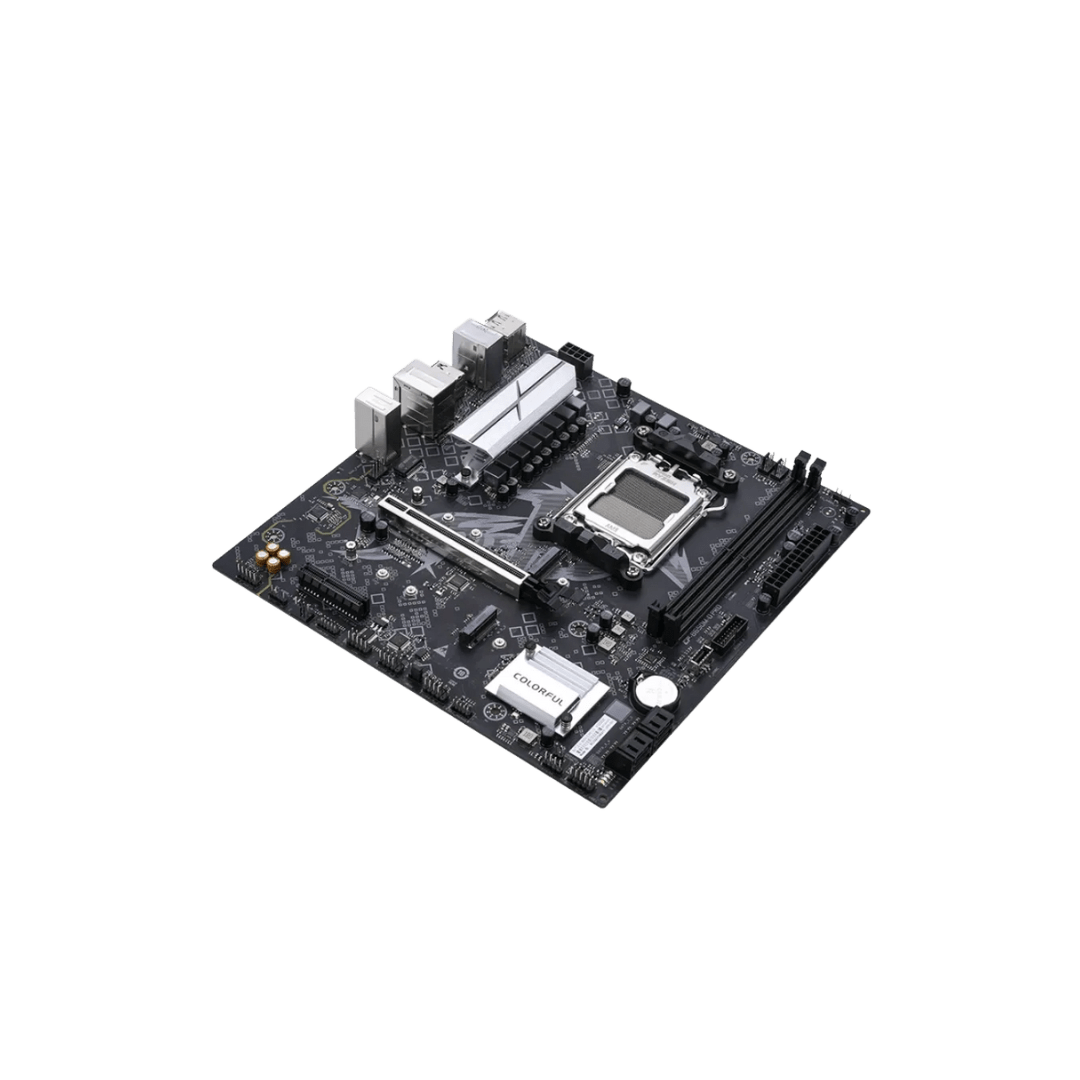

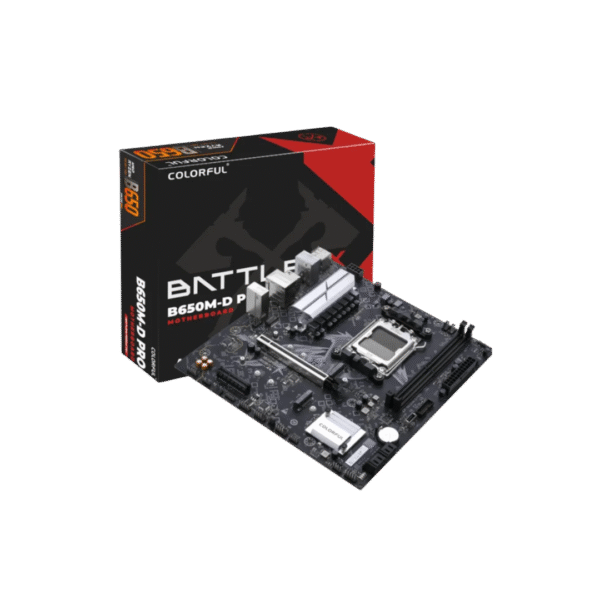

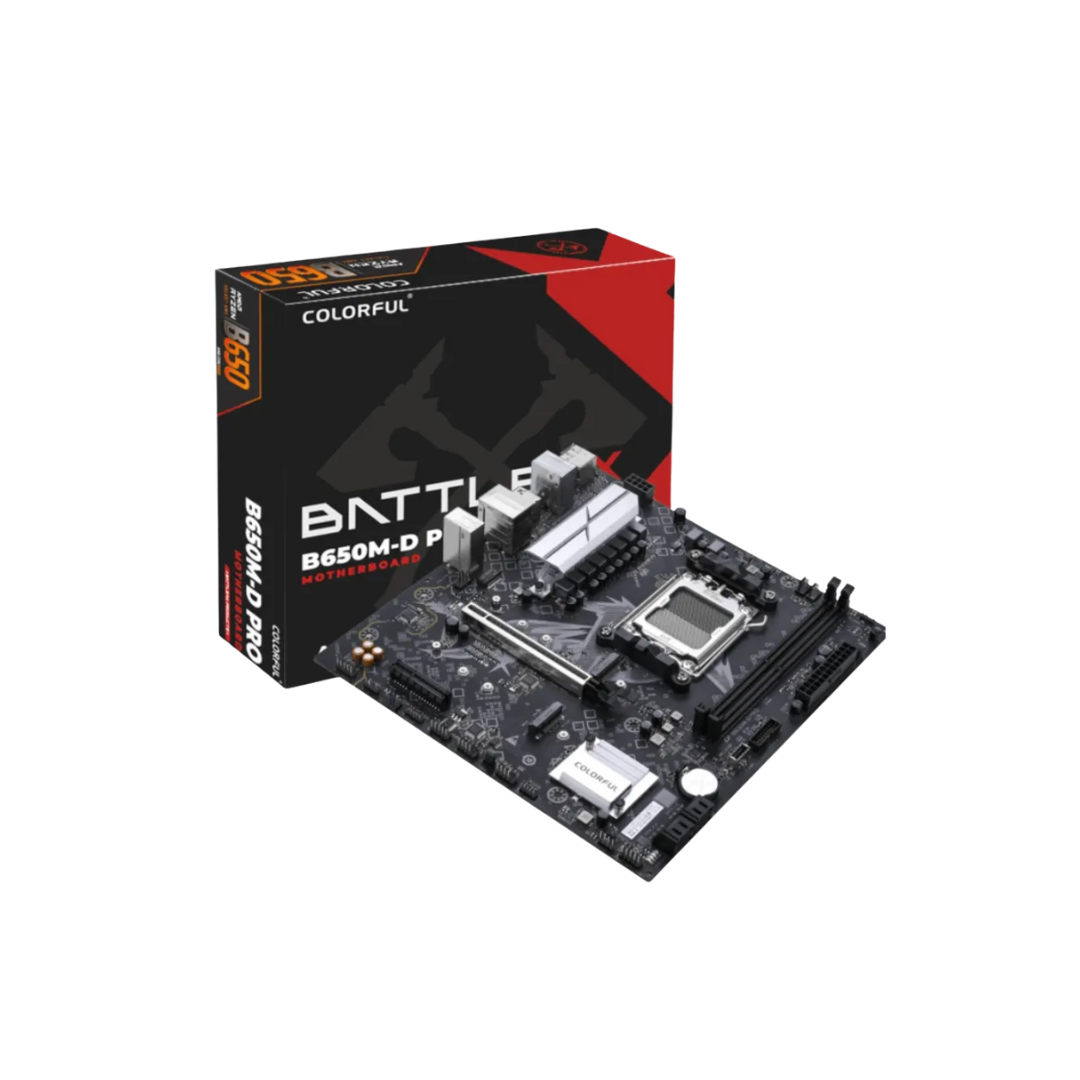

Colorful BATTLE-AX B650M-D PRO V14 AMD B650 AM5 Micro-ATX Motherboard



Key Features

  • Supports 2 PCIe 4.0 x4 M.2 SSD slots for high-speed NVMe storage
  • Equipped with Realtek 2.5G high-speed wired LAN for stable networking
  • I/O back panel one-click BIOS upgrade for easy system updates
  • Built-in six major protection technologies for enhanced stability and safety
  • Strict 200+ process quality testing ensures reliable performance
  • Upgraded PCB atomization process for improved durability and signal integrity
  • Supports AMD AM5 Ryzen 7000/8000 series processors
  • DDR5 memory support with EXPO/XMP overclocking
  • PCIe 4.0 expansion slots for next-generation graphics cards
Product Description

The Colorful BATTLE-AX B650M-D PRO V14 is a micro-ATX motherboard based on the AMD B650 chipset, designed for the AM5 platform. It is built to support modern Ryzen processors and DDR5 memory, making it suitable for gaming, productivity, and everyday high-performance PC builds.

Processor Support
The motherboard uses the AM5 socket and supports AMD Ryzen 7000 and 8000 series processors, providing compatibility with current-generation CPUs and future platform longevity.

Memory Support
It supports DDR5 dual-channel memory with EXPO and XMP profiles, allowing users to run high-speed DDR5 memory configurations for improved system performance and multitasking.

Storage Support
The B650M-D PRO V14 provides two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs. This enables fast storage speeds, quicker boot times, and faster application and game loading.

Expansion Slots
The motherboard includes a PCIe 4.0 x16 slot for graphics cards and an additional PCIe expansion slot for add-on cards, supporting modern GPUs and expansion devices.

Networking
It is equipped with a Realtek Gigabit LAN controller, delivering stable and reliable wired network connectivity for gaming, streaming, and general use.

Audio
Onboard audio is handled by a Realtek ALC897 codec, supporting 5.1-channel audio output for clear and immersive sound.

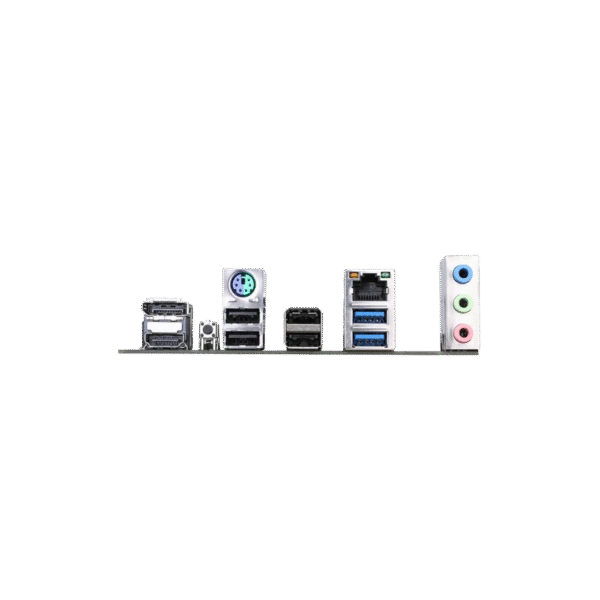

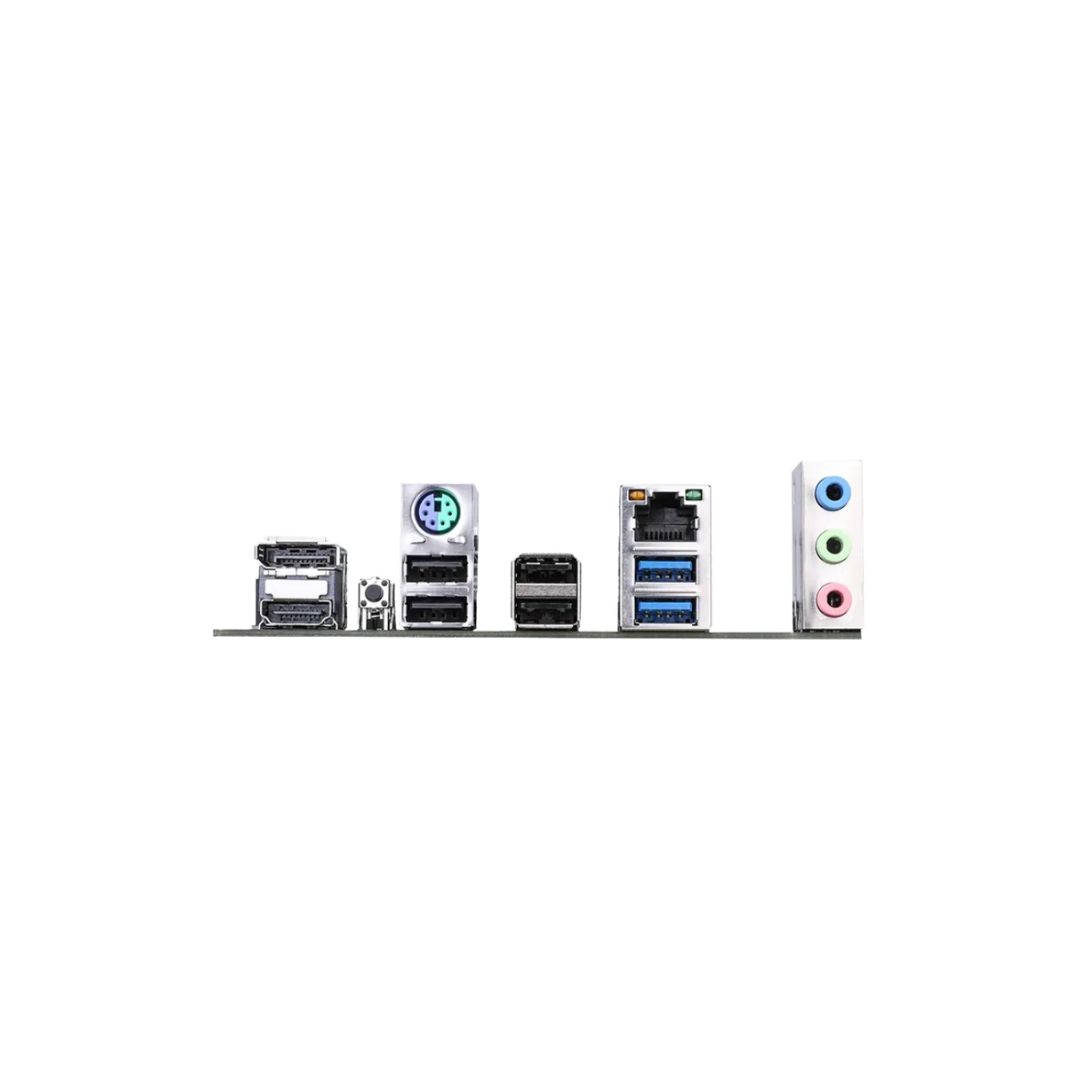

Rear I/O and Connectivity
The rear I/O panel includes multiple USB ports along with HDMI and DisplayPort outputs, allowing support for integrated graphics display and a wide range of peripherals.

Form Factor
The motherboard uses a micro-ATX form factor, making it suitable for compact and mid-tower PC cases while still offering essential expansion and connectivity options.

Specification
Category Specification
Model BATTLE-AX B650M-D PRO V14
Product Series BATTLE-AX Series
Chipset AMD B650
CPU Support Supports AMD Ryzen 7000 / 8000 / 9000 series processors (AM5 socket)
Memory Slots 2 × DDR5 DIMM slots
Max Memory Capacity Up to 96 GB (48 GB per slot)
Memory Speed Support DDR5-4800 MHz to DDR5-7600 MHz (OC)
Memory Technology Dual-channel memory, XMP and EXPO support
Storage Interfaces 2 × M.2 slots, 4 × SATA 6Gb/s ports
RAID Support RAID 0, RAID 1, RAID 10 (SATA devices)
M.2_1 Slot PCIe 4.0 x4, supports 2242 / 2260 / 2280 (CPU channel)
M.2_2 Slot PCIe 4.0 x4, supports 2242 / 2260 / 2280 (PCH channel)
Expansion Slots 1 × PCIe 4.0 x16, 1 × PCIe 4.0 x4
Rear USB Ports 4 × USB 2.0, 2 × USB 3.2 Gen 1 Type-A
Video Outputs 1 × DisplayPort 1.2 (4K@60Hz), 1 × HDMI 2.0 (4K@60Hz)
Network 1 × 2.5G LAN (Realtek RTL8125BG)
Audio Ports 3 × Audio jacks (Line-in / Line-out / Mic)
Rear I/O Extras PS/2 port, BIOS update button
Internal USB Headers 2 × USB 2.0 headers (4 ports), 1 × USB 3.2 Gen 1 header (2 ports), 1 × USB 3.2 Gen 1 Type-C header
Fan & Cooling Headers 1 × CPU fan, 2 × system fan, 1 × water pump header
RGB Headers 2 × 5V 3-pin ARGB headers
Internal Connectors Front audio, front panel, speaker, COM port, Clear CMOS jumper, BIOS burner pin, POST card pin
BIOS 128M UEFI BIOS, multi-language support
Power Management S3 / S4 wake-up, network S5 wake-up, USB wake-up, timed boot
Hardware Monitoring Fan speed control, temperature monitoring, voltage monitoring
Audio Codec Realtek ALC897, supports up to 5.1-channel audio
Form Factor Micro-ATX (M-ATX)
Dimensions 244 mm × 235 mm



For further details, visit official website.

“TechMatched offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.

Read here in detail about Price-Match Policy.”

For more budget options, click here.

Additional information

Weight 1 kg
