Description

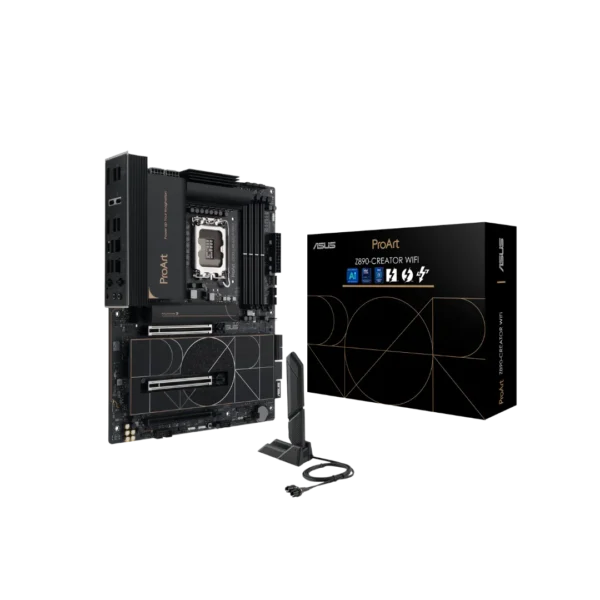

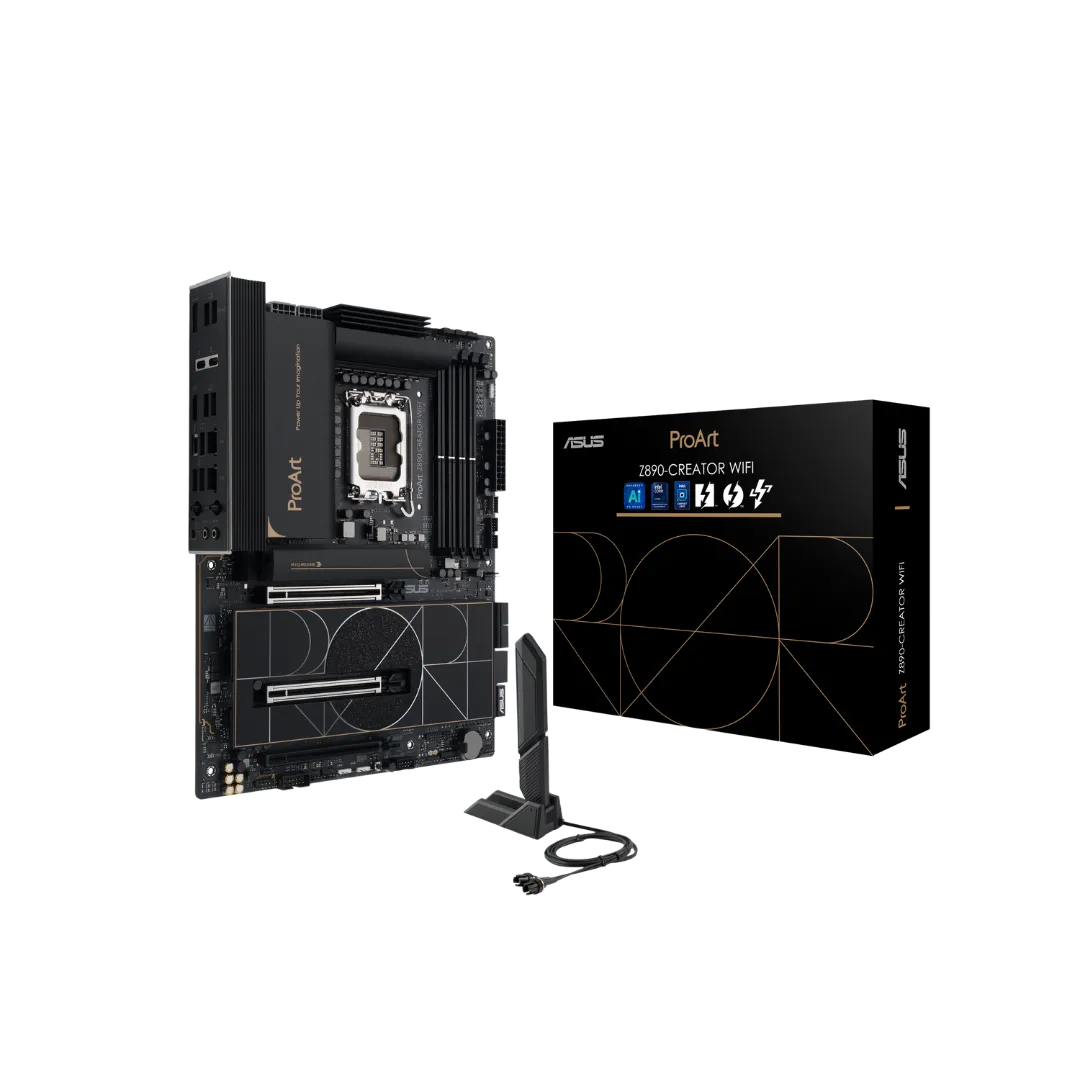

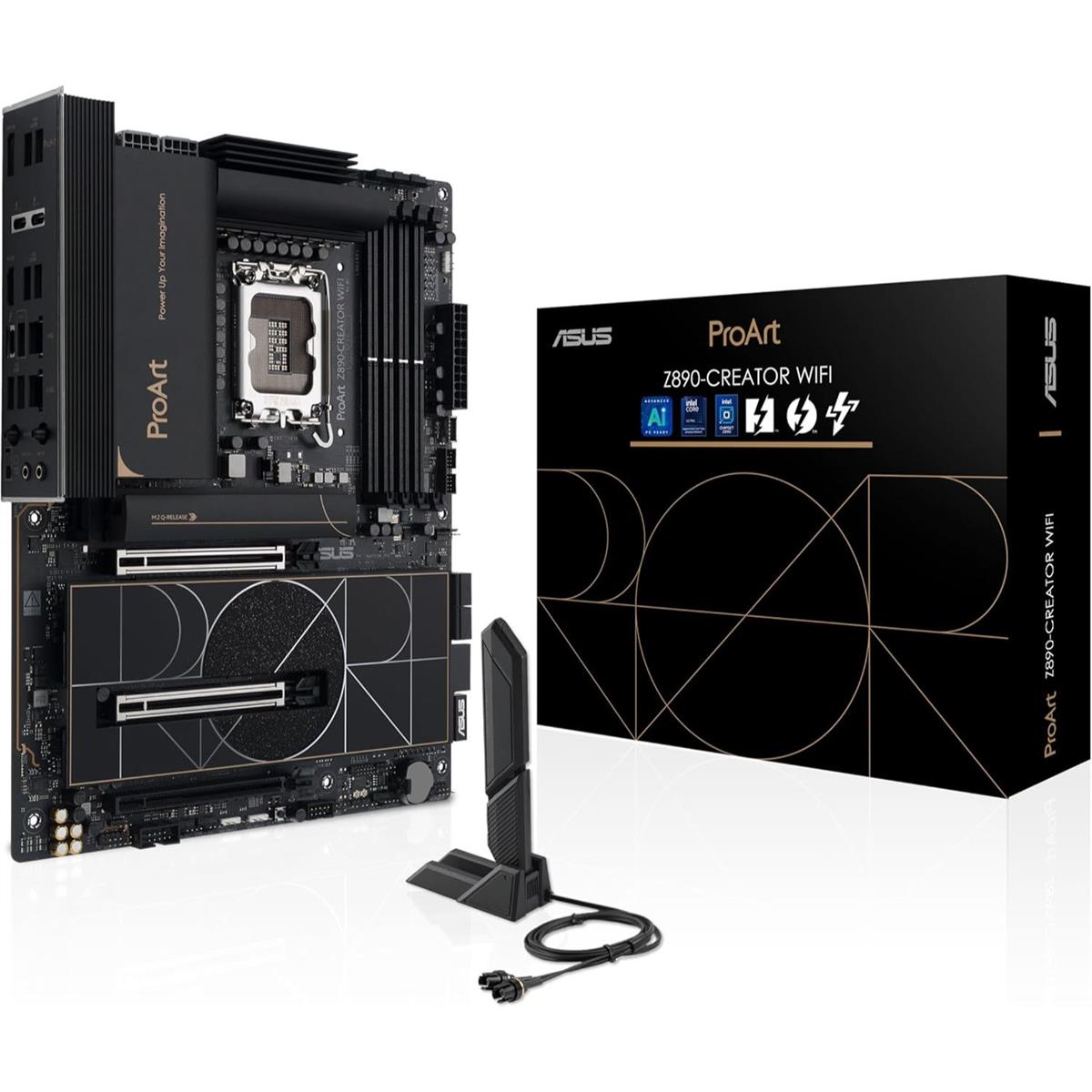

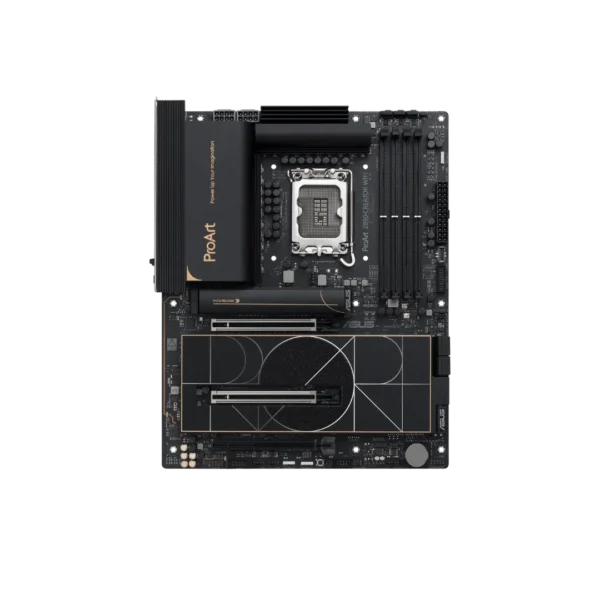

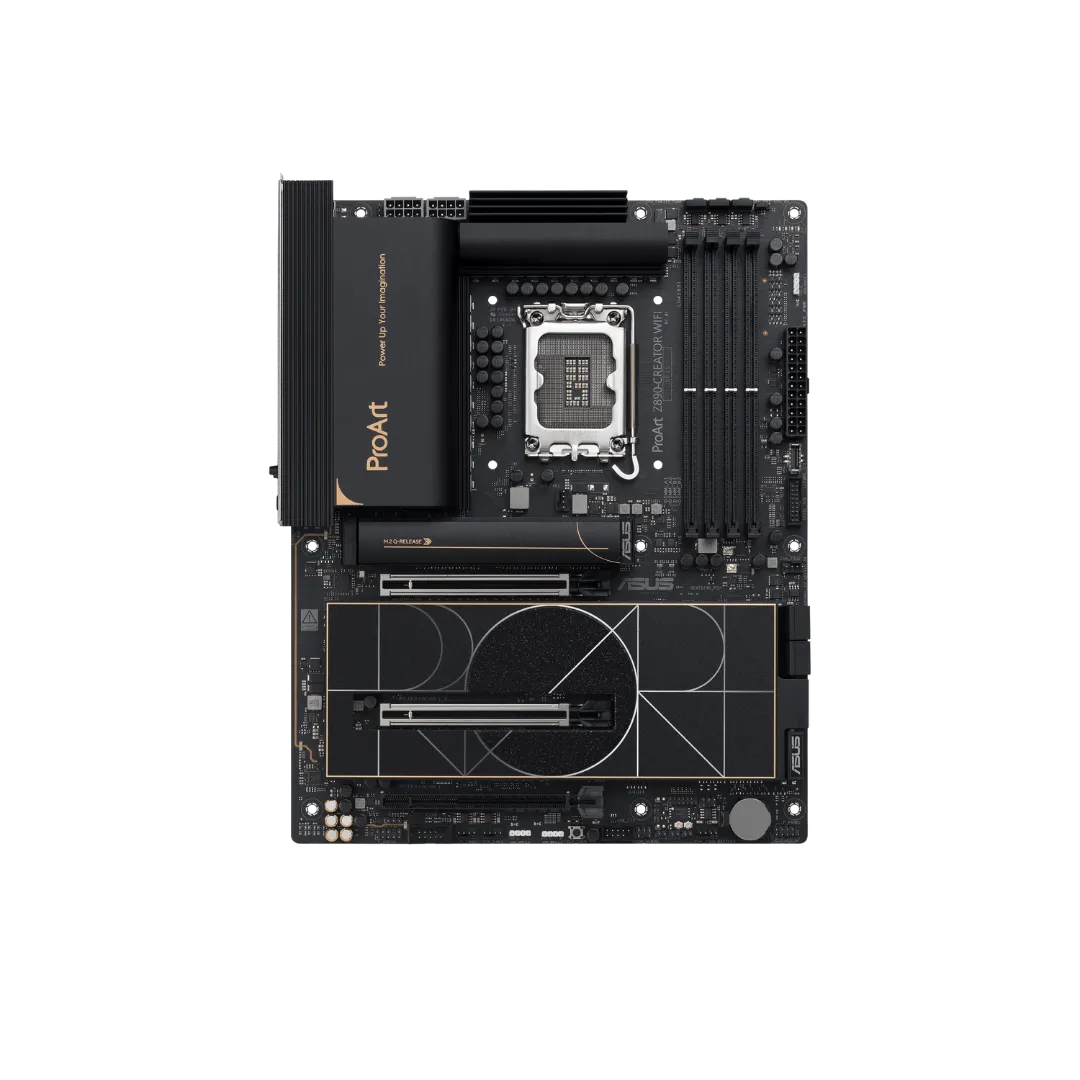

Asus ProArt Z890-Creator Wifi Z890 LGA 1851 ATX Motherboard, Intel Core Ultra Processor Series 2 Ready, 16+2+1+2 Stages, PCIe 5.0, DDR5, Thunderbolt 5 Type-C, 10+2.5 Gb LAN, WiFi 7, 5x M.2, AI OC

DESCRIPTION

SPECIFICATION

Section	Details
Model	ProArt Z890‑CREATOR WIFI
CPU	Support Intel® Core™ Ultra Processors (Series 2), LGA 1851 Supports Intel Turbo Boost 2.0 & Turbo Boost Max 3.0 (Turbo Boost Max 3.0 support depends on CPU model)
Chipset	Intel® Z890
Memory	4 × DIMM slots, max 256 GB DDR5, dual-channel, up to 9066+ MT/s (OC), Non-ECC, unbuffered, CUDIMM* Supports XMP & ASUS AEMP III Supports DIMM Fit/Flex (*by CPU/module)
Graphics	1 × HDMI® 2.1 (4K@60 Hz) 2 × Thunderbolt 5 Type‑C (DP + TB video) 1 × USB4/Thunderbolt 4 Type‑C (DP + TB video) TB5: up to 2×8K@60 (DSC) + 4K@60 with DP‑in or 1×8K + 4K without; TB4: up to 8K@60 with DSC (23.8 Gbps). TB5 + TB4 cannot output simultaneously via iGPU.
Expansion Slots	With CPU: 2 × PCIe 5.0 x16 (x16 or x8/x8) Chipset: 1 × PCIe 4.0 x16 (x4 mode)
Storage	5 × M.2: M.2_1 (PCIe 5.0 x4, 2242–22110), M.2_2–M.2_4 (PCIe 4.0 x4), M.2_5 (PCIe 4.0 x4 + SATA) + 4 × SATA 6 Gb/s *Intel RST: RAID 0/1/5/10; M.2_5 shares bandwidth with PCIe slot.
Ethernet	1 × Marvell AQtion 10 GbE 1 × Intel 2.5 GbE ASUS LANGuard
Wireless & Bluetooth	Wi‑Fi 7 (802.11be) 2×2 – 2.4/5/6 GHz, 320 MHz, up to 5.8 Gbps* Bluetooth 5.4 (Wi‑Fi 7 full support requires Windows 11 24H2+; 21H2–23H2 = Wi‑Fi 6E)
USB	Rear (10): 2× TB5 USB‑C, 1× USB4/TB4 USB‑C, 6× USB-A 10 Gbps, 1× USB-A 2.0 Front/Internal (5): USB-C 20 Gbps, header for 2× USB-A 5 Gbps, header for 2× USB-A 2.0, USB-C PD 5 V/3 A
Audio	Realtek ALC1220P 7.1 HD Audio Codec – impedance sensing, internal amp, jack detection/multi-streaming, up to 120 dB SNR playback, 113 dB recording, support up to 32‑bit/192 kHz (not in 7.1 mode); gold-plated jacks, premium caps, audio PCB layers

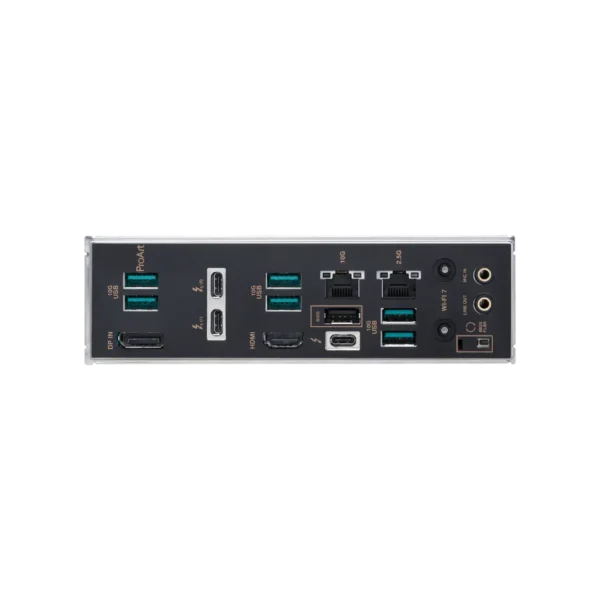

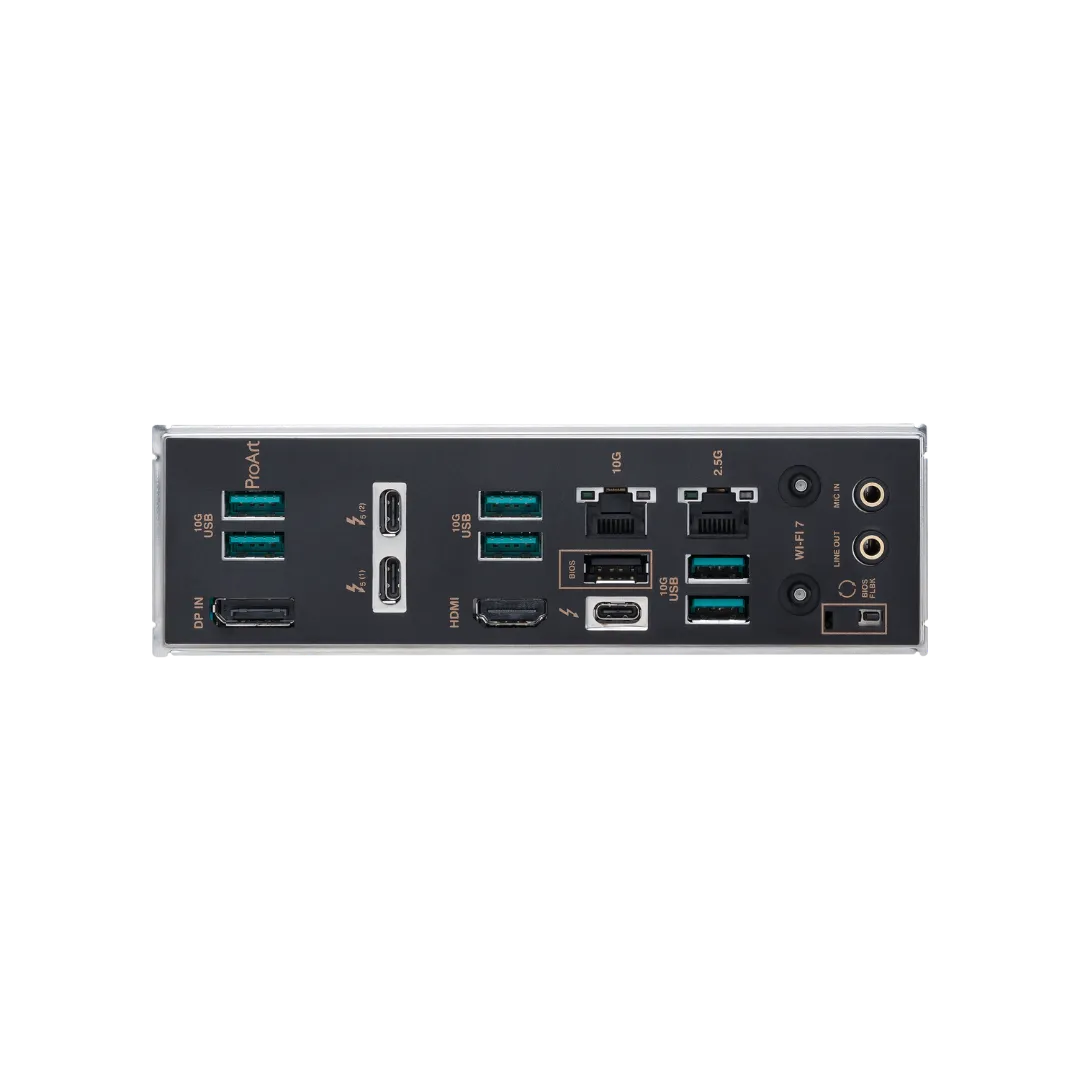

Back Panel I/O	2× TB5 USB‑C, 1× USB4/TB4 USB‑C, 6× USB-A 10 Gbps, 1× USB-A 2.0, 1× DisplayPort IN, 1× HDMI 2.1, Wi‑Fi antenna connector, 1× Marvell 10 GbE, 1× Intel 2.5 GbE, 2× gold audio jacks, BIOS FlashBack™ button
Internal I/O Connectors	CPU Fan, CPU OPT Fan, AIO Pump, 5× Chassis Fan headers 24-pin ATX, 2× 8-pin CPU power 5× M.2 (Key M), 4× SATA 6 Gb/s USB: 20 Gbps USB-C, 5 Gbps USB-A header, 2.0 USB-A header 3× ARGB Gen2, Clear CMOS, COM, CPU over-voltage jumper, chassis intrusion, front audio, TPM, front-panel, thermal sensor
Special Features	ASUS 5X PROTECTION III: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, stainless steel I/O Q‑Design: M.2 Q-Latch/Release/Slide, Q‑Release Slim, Q‑Antenna, Q‑Connector, Q‑Dashboard, Q‑DIMM, Q‑LED Thermal: VRM + M.2 heatsinks/backplate DIY: BIOS FlashBack™, pre-mounted I/O, ProCool II, SafeDIMM Aura Sync: ARGB headers Business: 24/7 reliability, over-current protection
Software Features	Armoury Crate (Aura Creator/Sync, Fan Xpert 4, power saving), Driver Hub, GlideX, CPU-Z, CreatonFirst, ProArt Creator Hub, TurboV Core, Thunderbolt Share, USB Wattage Watcher, Adobe CC/Norton/WinRAR trials; UEFI BIOS with AI OC Guide, CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey; NPU Boost; ACCE Remote Management
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	Wake-on-LAN via PME, PXE boot
Accessories	2× SATA 6 Gb/s cables, Wi‑Fi Q‑Antenna, Q‑Connector, 2× M.2 Q-Latch kits, 2× M.2 rubber pads, ProArt accessory bag, ACC Express key card, Quick Start Guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX (12″ × 9.6″ / 30.5 × 24.4 cm)

For further details, visit official website.
