Buy Asus Tuf Gaming B860-Plus Wifi Motherboard in Pakistan | TechMatched
₨65,000.00
Buy Asus Tuf Gaming B860-Plus Wifi Motherboard in Pakistan | TechMatched
About this item
- Asus Tuf Gaming B860-Plus Wifi
- Supports Intel Core Ultra Series 2
- 4x DIMMs, DDR5 8666+MT/s (OC)
- 12+1+2+1 Digital Power Design
- PCIe 5.0 M.2 SSD Storage
10 Months Warranty
Avail Free delivery on Bank Transfer
Description

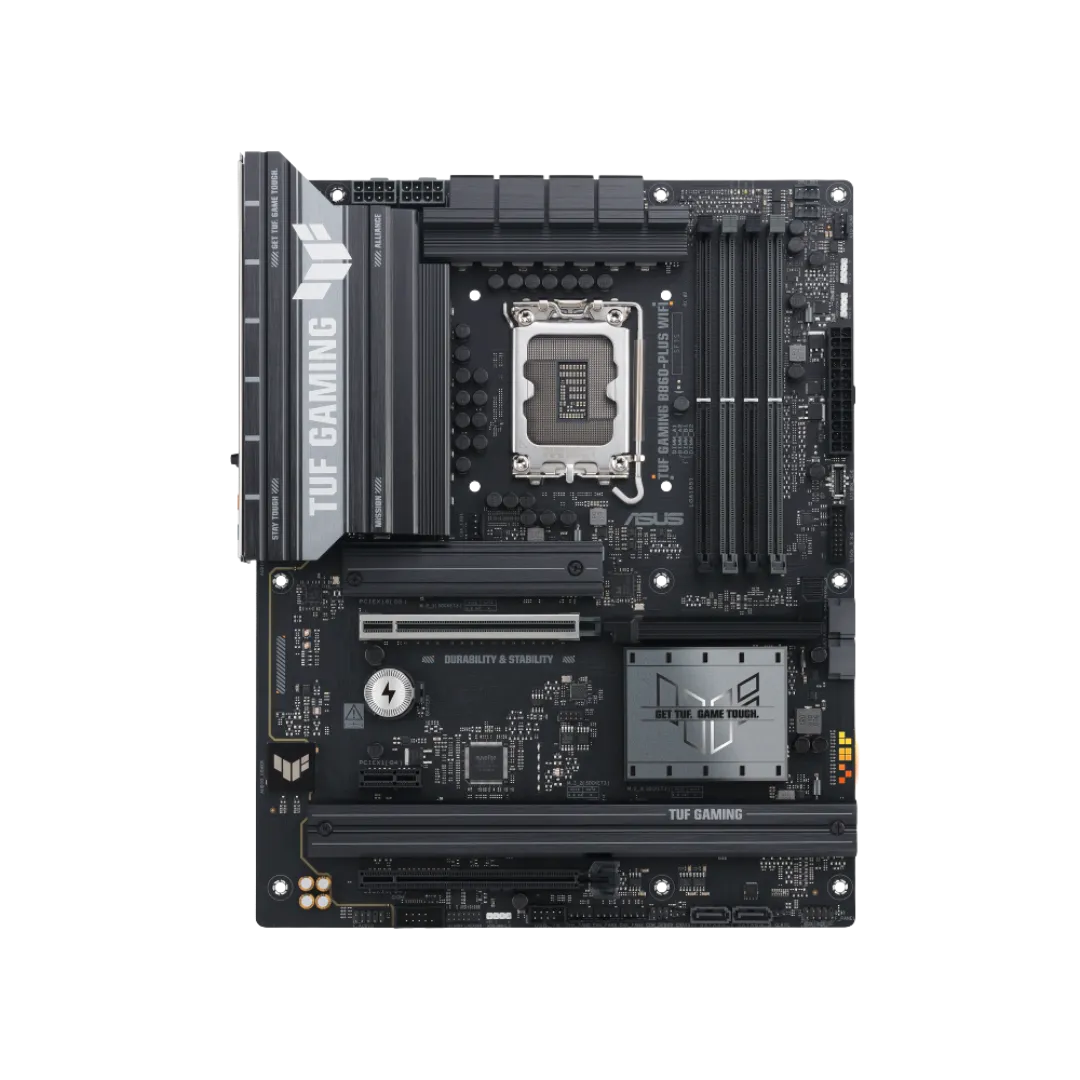

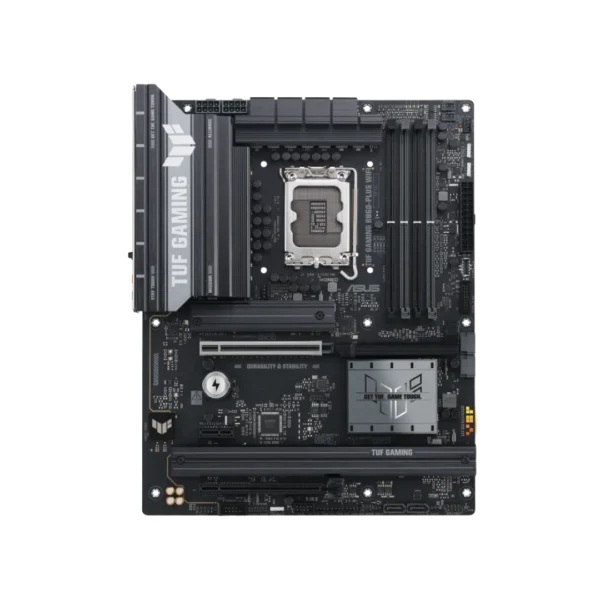

Asus Tuf Gaming B860-Plus Wifi B860 LGA 1851 ATX Motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-Ready, 12+1+2+1 Stages, DDR5, PCIe 5.0, 3X M.2, Wi-Fi 7, 2.5Gb LAN, USB 20Gbps Type-C
DESCRIPTION
ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Premium Power Design
Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® with DP Alt mode and front USB 10Gbps Type-C®
| Category | Details |
|---|
| Model | TUF GAMING B860‑PLUS WIFI |
| CPU | LGA 1851 socket, supports Intel® Core™ Ultra Processors Series 2; Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 (CPU-dependent) |
| Chipset | Intel® B860 |
| Memory | 4× DDR5 DIMM slots, max 256 GB; supported speeds up to 8666+ MT/s (OC); dual‑channel; non‑ECC, un‑buffered (On‑Die ECC); XMP & ASUS AEMPIII |
| Graphics Output | 1× DisplayPort 1.4 (4K @ 60 Hz) 1× HDMI 2.1 (4K @ 60 Hz) 1× USB‑C (20 Gbps) with DP Alt‑mode (4K @ 60 Hz) |
| Expansion Slots | • 1× PCIe 5.0 ×16 (CPU-driven) • 1× PCIe 4.0 ×16 (x4 mode, chipset) • 1× PCIe 4.0 ×1 (shares bandwidth with x16 slot) |
| Storage Interfaces | • 3× M.2 slots: – M.2_1 (CPU-driven): PCIe 5.0 ×4 (2280) – M.2_2 (chipset): PCIe 4.0 ×4 (2280/22110) – M.2_3 (chipset): PCIe 4.0 ×4 (2242/2260/2280) • 4× SATA 6 Gb/s with RAID 0/1/5/10 support |
| Networking | • Realtek 2.5 Gb Ethernet with TUF LANGuard • Wi‑Fi 7 (802.11be) 2×2, 2.4/5/6 GHz, 160 MHz channel, up to 2.9 Gbps (Windows 11 24H2+) • Bluetooth 5.4 |
| USB Ports | Rear I/O: – 1× USB‑C 20 Gbps (DP Alt‑mode) – 2× USB‑A 10 Gbps – 3× USB‑A 5 Gbps – 2× USB‑A 2.0 Front/Internal: – 1× USB‑C 10 Gbps header – 1× USB‑A 5 Gbps header (2 ports) – 1× USB‑2.0 header (2 ports) – USB‑C power delivery: 5 V/3 A |
| Audio | Realtek 7.1 HD Audio CODEC; 24‑bit/192 kHz playback; jack-detection, multi-streaming, front panel jack-retasking; audio shielding, PCB layers, premium capacitors; rear optical S/PDIF |

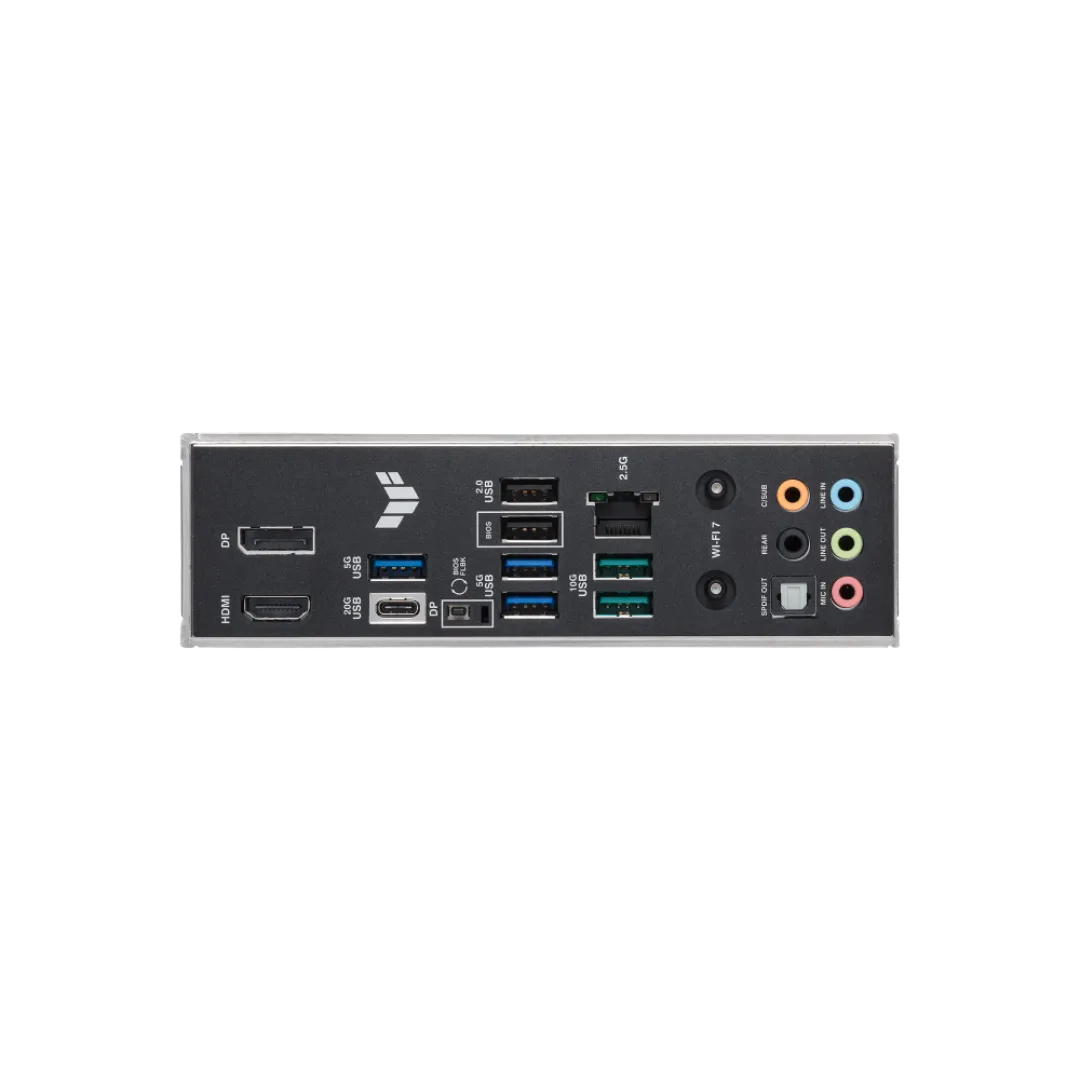

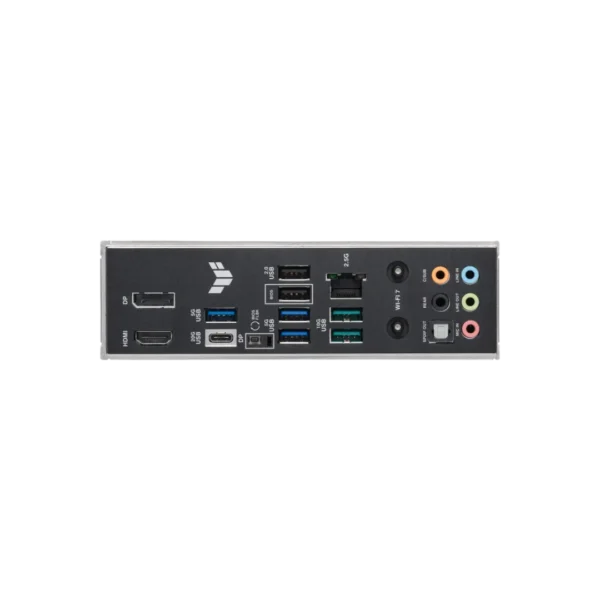

| Back I/O | USB‑C, USB‑A ports (as above), DisplayPort, HDMI, Wi‑Fi antenna ports, 2.5 Gb Ethernet, 5× 3.5 mm audio jacks, optical S/PDIF, BIOS FlashBack™ button |
| Internal Connectors | 1× CPU fan, 1× OPT fan, 1× AIO pump, 4× chassis fan headers; 24‑pin ATX & dual 8‑pin CPU power; 3× M.2, 4× SATA; USB headers; 3× ARGB Gen 2; TPM, COM, chassis intrusion, Clear CMOS headers; front panel audio + system panel; Thunderbolt™ (USB4®) header |
| Special Features | TUF PROTECTION (DIGI+ VRM, ESD Guard, Over-voltage, SafeSlot, stainless back I/O); M.2 & VRM heatsinks; ASUS Q-Design tools (Q‑Latch, Q‑LED, Q‑Slot, etc.); pre-mounted I/O shield; Aura Sync; BIOS FlashBack™ + LED; CPU socket protection |
| Software | Armoury Crate (Aura Creator, Fan Xpert 4, Power Saving); DriverHub; GlideX; TUF GAMING CPU‑Z; DTS Audio; Norton 360 for Gamers (60 d trial); WinRAR (40 d trial) |
| BIOS | Dual 128 Mb Flash ROM, UEFI AMI BIOS; features CrashFree BIOS 3, EZ Flash, MyHotkey, EZ Mode |
| Manageability | WOL by PME, PXE boot support |

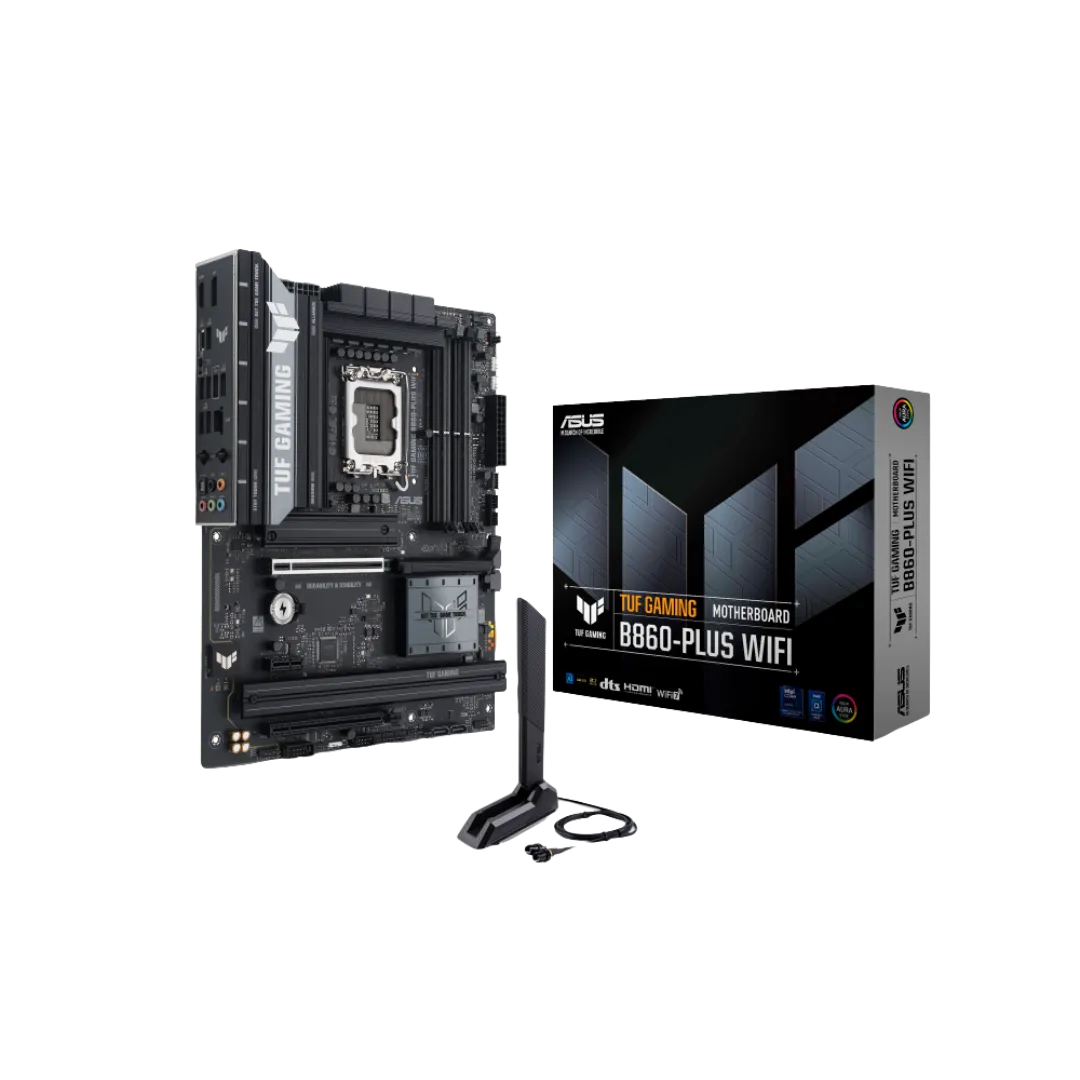

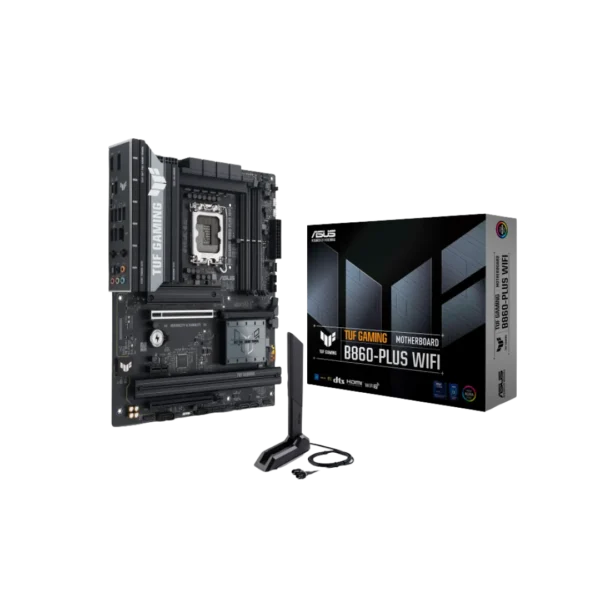

| Accessories | 2× SATA cables, Wi‑Fi Q‑Antenna, M.2 rubber washers, M.2 screws, TUF sticker, Quick start guide |
| OS Support | Windows 11 (22H2 and later) |
| Form Factor | ATX (305 × 244 mm) |
For further details, visit official website.
“TechMathced offers a price-match policy for its customers. If you find anyone selling at less price than us, you can simply contact us and we’ll match the price for you.
Read here in detail about Price-Match Policy.”
Additional information
| Weight | 1 kg |
|---|---|
| Warranty | 1-Year |
